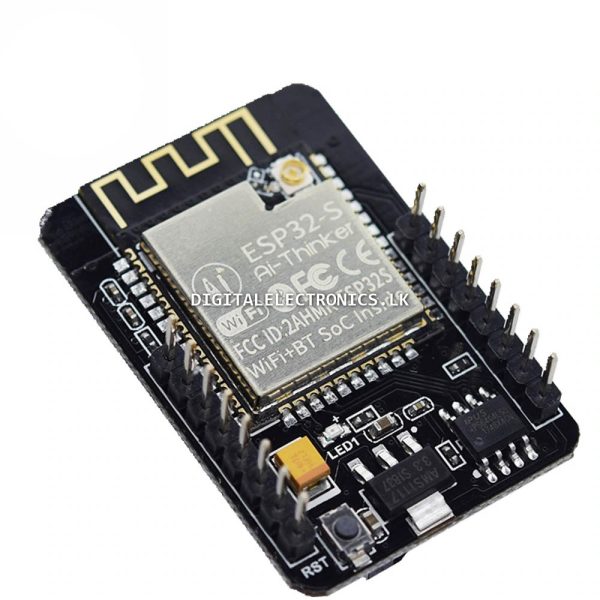

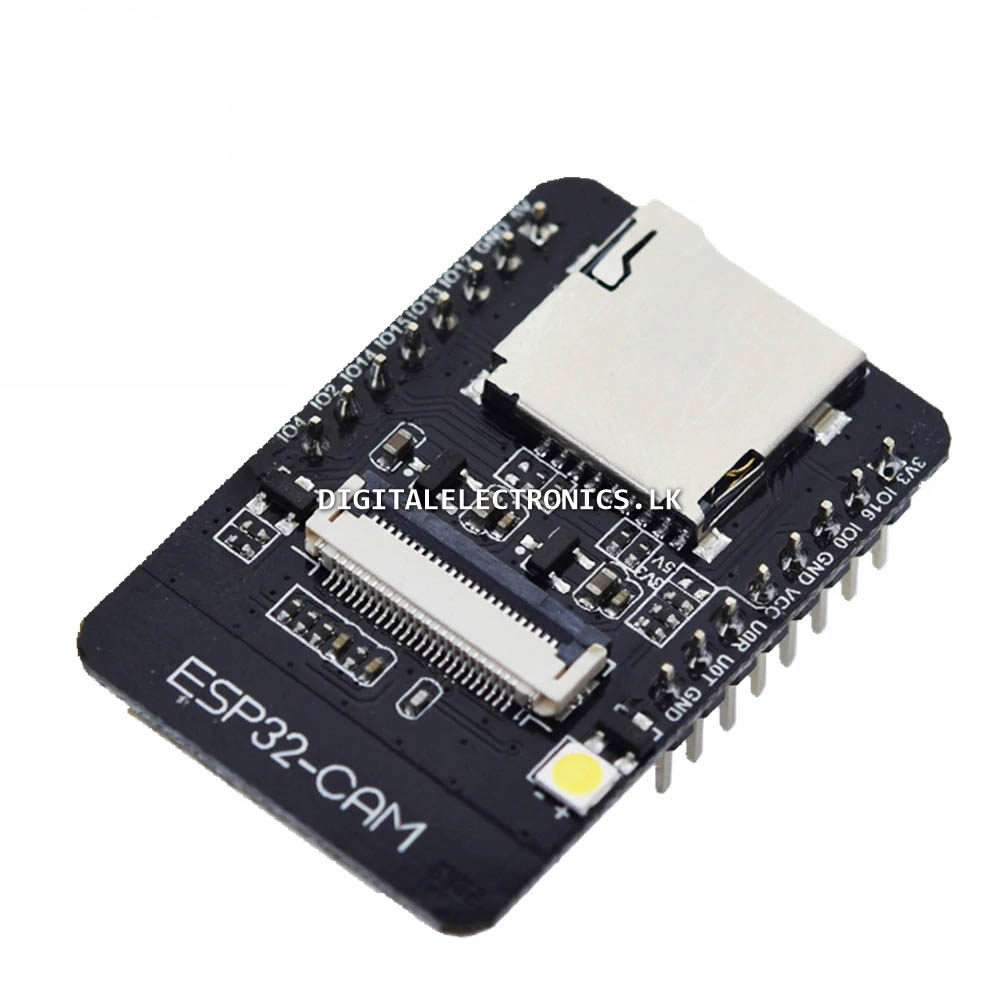

ESP32-CAM Module

ESP32-CAM Module

SKU: AR198 Categories: ,


  • Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
  • Low-power dual-core 32-bit CPU for application processors
  • Up to 240MHz, up to 600 DMIPS
  • Built-in 520 KB SRAM, external 4M PSRAM
  • Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
  • Support OV2640 and OV7670 cameras with built-in flash
  • Support for images Wi-Fi upload
  • Support TF card
  • Support multiple sleep modes

Package Included:

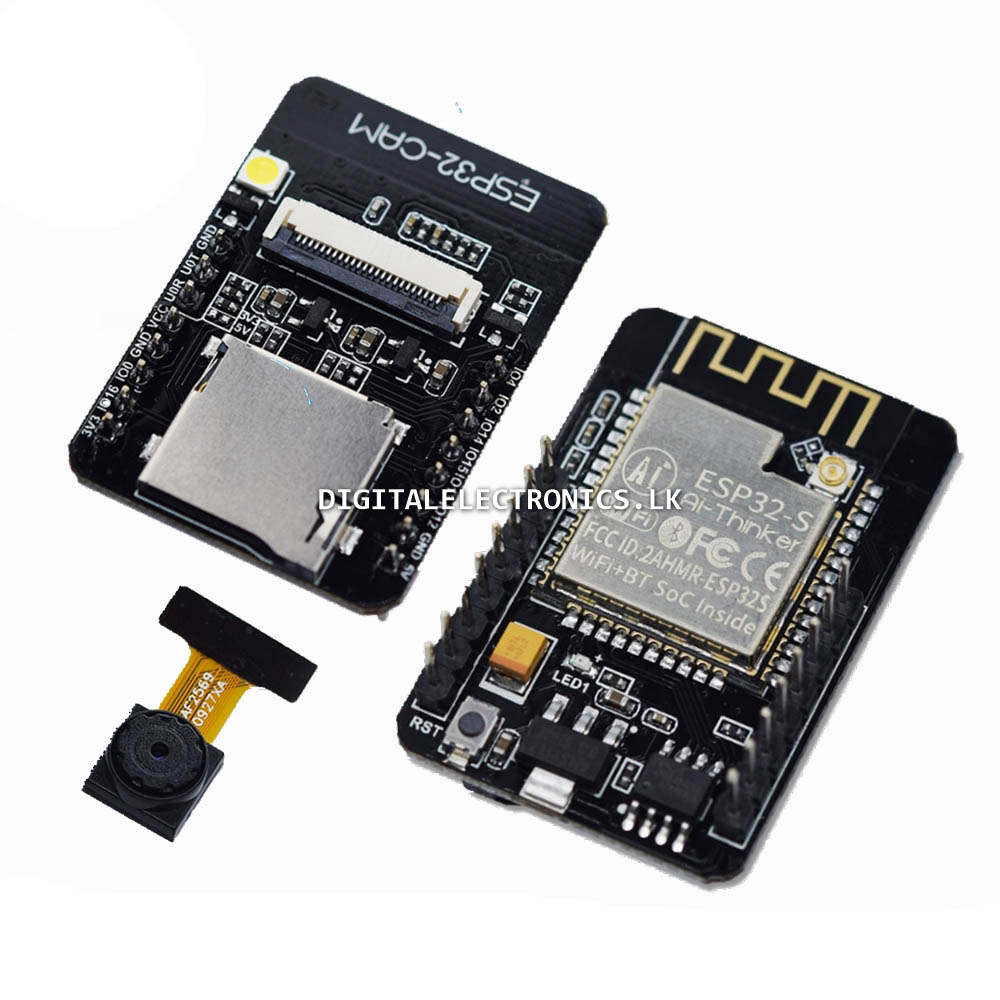

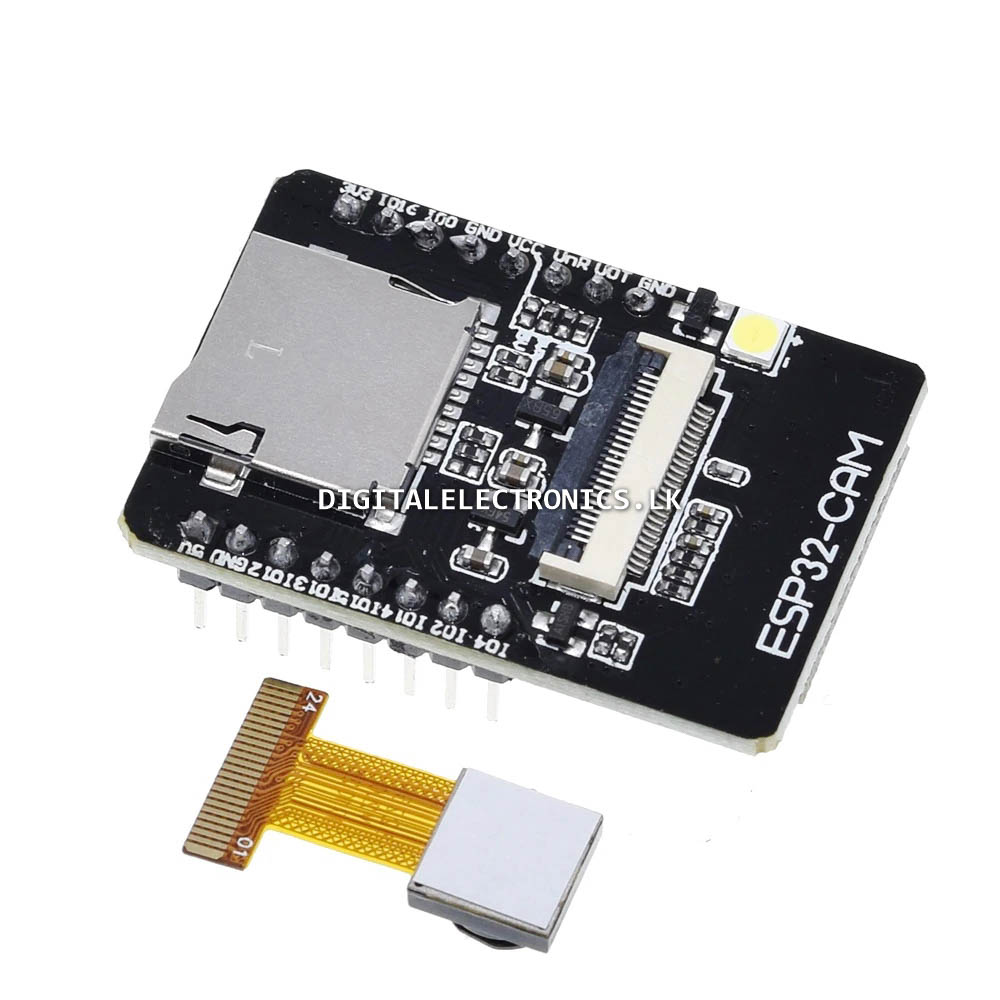

  • 1 x ESP32-CAM Module
  • 1 x Camera Module OV2640 2MP

Product Specifications:

Module Model ESP32-CAM
Package DIP-16
Size 27*40.5*4.5(?0.2)mm
SPI Flash default 32Mbit
Ram internal520KB+external 4M PSRAM
Bluetooth Bluetooth 4.2BR/EDR?and BLE standards
Wi-Fi 802.11 b/g/n/e/i
Support Interface UART, SPI, I2C, PWM
Support TF Card Maximum support 4GB
IO Port 9
Serial Baud Rate default 115200 bps
Image Output Format JPEG (only supported by OV2640), BMP, GRAYSCALE
Spectrum Range 2412 ~ 2484MHz
Antenna Form onboard PCB antenna , gain 2dBi
Transmit Power 802.11b: 17?2 dBm (@11Mbps)
802.11g: 14?2 dBm (@54Mbps)
802.11n: 13?2 dBm (@MCS7)
Receiving Sensitivity CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Security WPA/WPA2/WPA2-Enterprise/WPS
Power Supply Range 5V
Logic Voltage 3.3V
