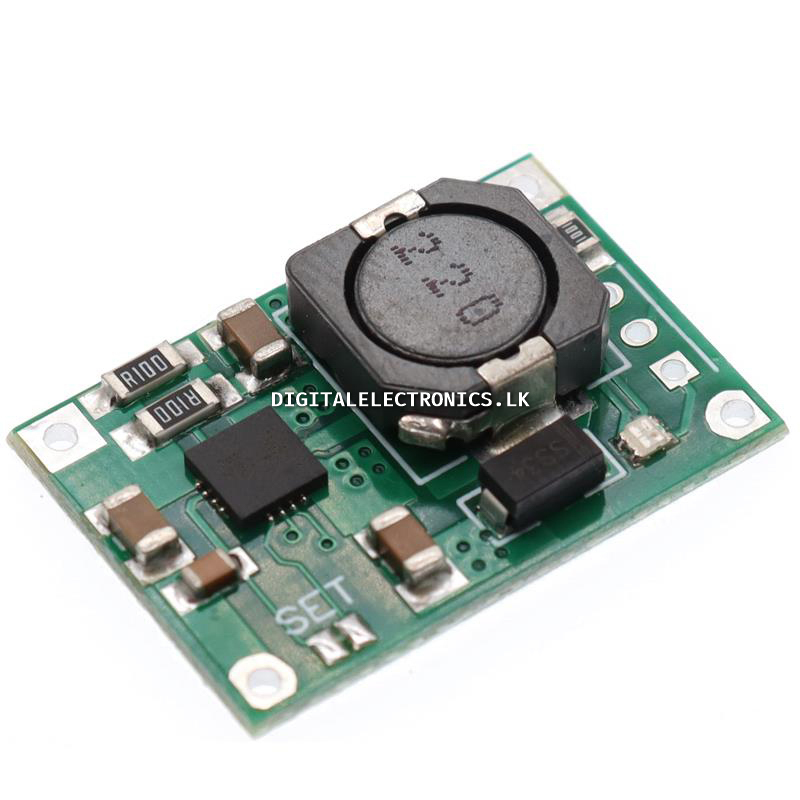

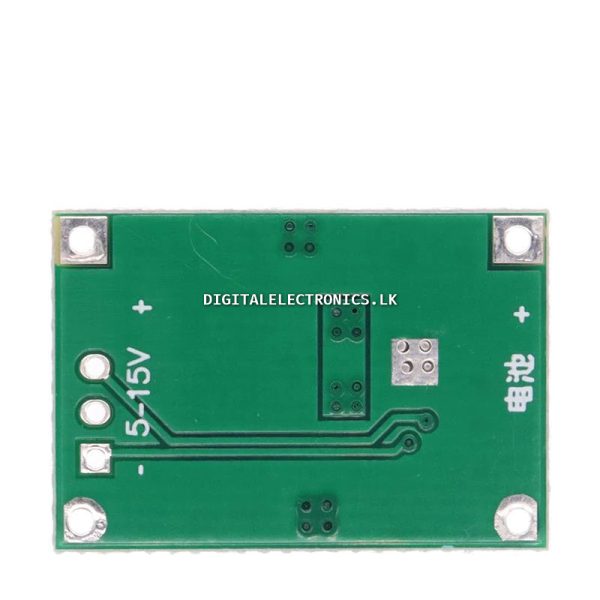

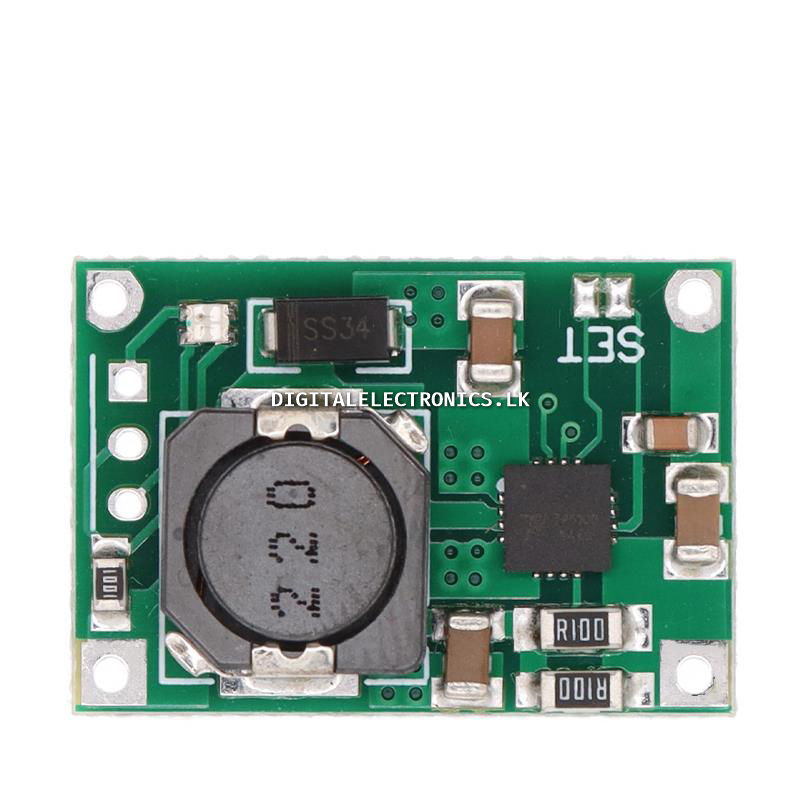

Specifications:
- Double 8.4v / 4.2v lithium rechargeable single
- Programmable charge current. 0. 1A – 2A
- Programmable steady precharge current 10% -100%.
- Wide operating voltage, maximum reach I8V
- Red and green LED charge status indicator
- Chip temperature protection, overcurrent protection, under-voltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
Maximum Ratings:
- Static input supply voltage (VIN): 20V
- BAI: -8.4V – 20V
- BAT Short-Circuit Duration: Continuous
