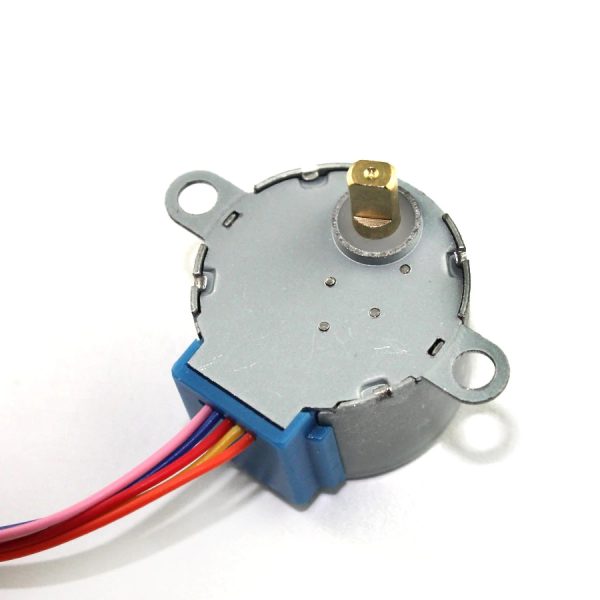

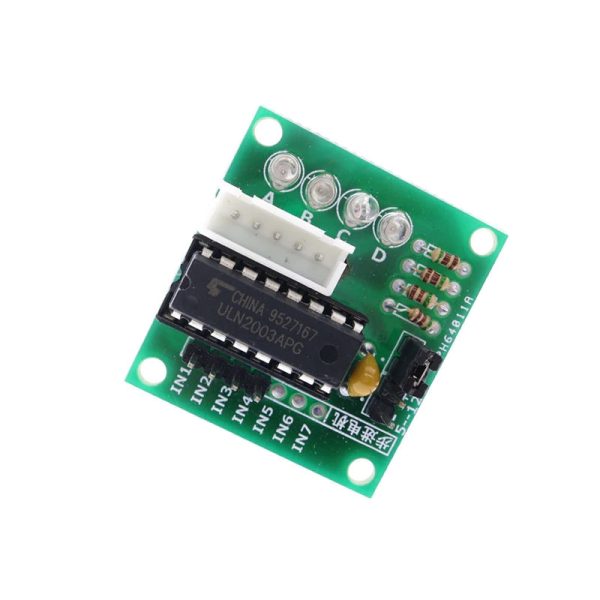

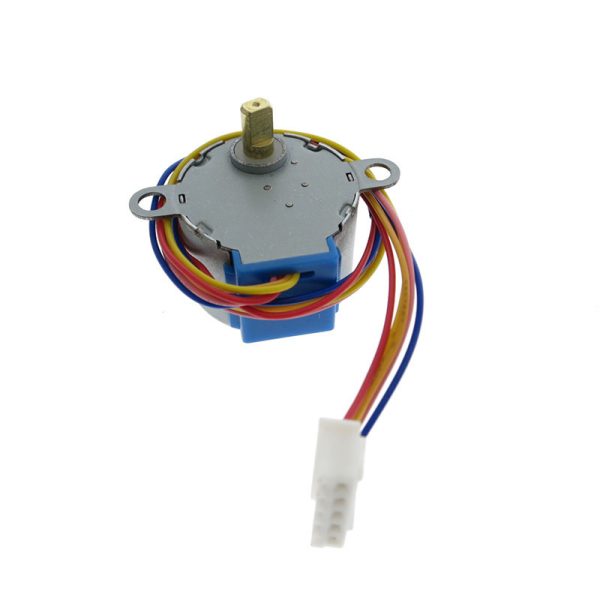

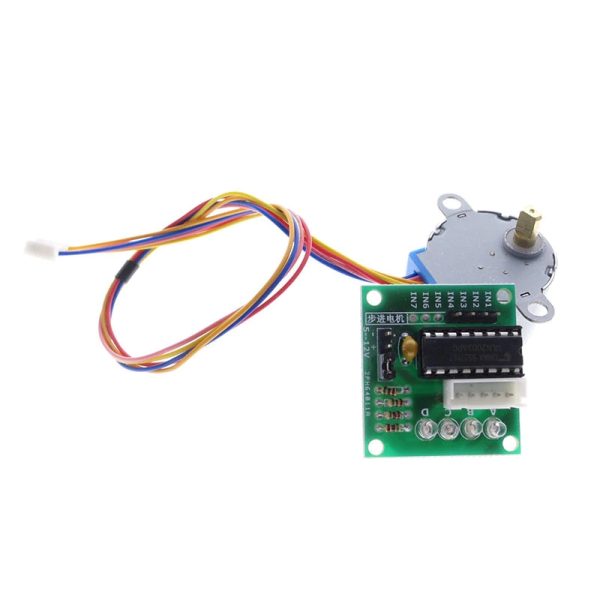

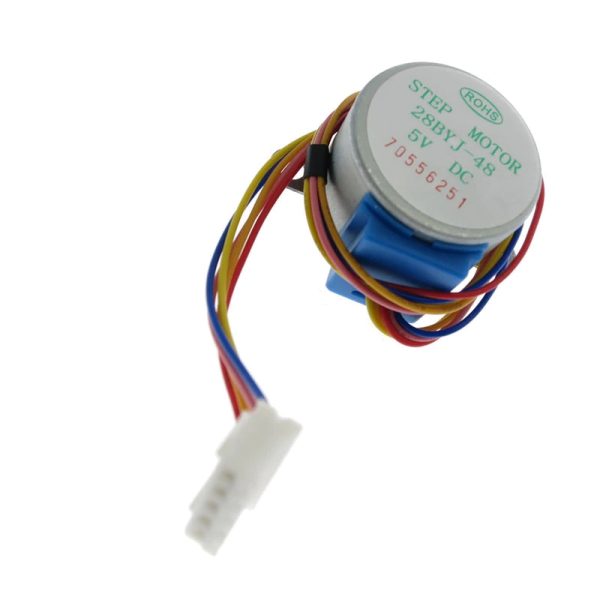

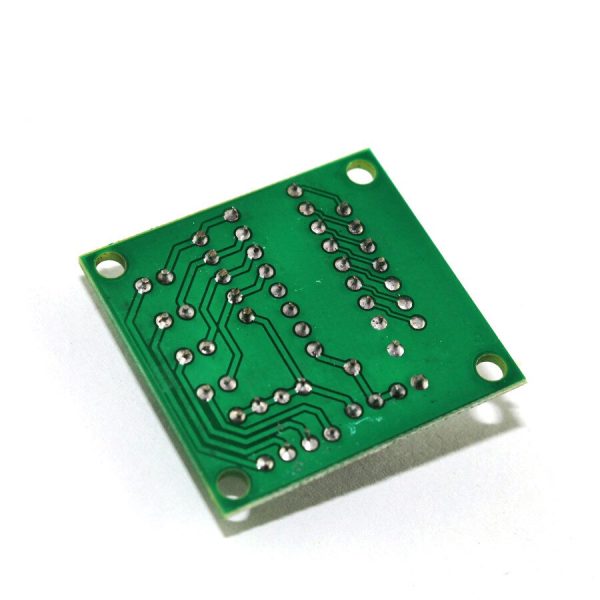

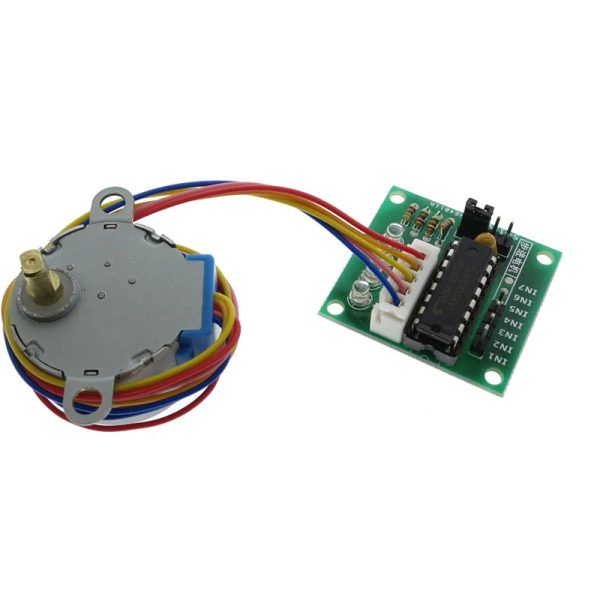

28BYJ-48 Stepper Motor with ULN 2003 Driver

28BYJ-48 Stepper Motor with ULN 2003 Driver

SKU: AR069 Categories: Motors, Sensors & Modules

Description

Rated voltage : ?5VDC
Number of Phase : 4
Speed Variation Ratio : 1/64
Stride Angle : 5.625? /64
Frequency : 100Hz
DC resistance : 50??7%(25?)
Idle In-traction Frequency : > 600Hz
Idle Out-traction Frequency : > 1000Hz
In-traction Torque : >34.3mN.m(120Hz)
Self-positioning Torque : >34.3mN.m
Friction torque : 600-1200 gf.cm
Pull in torque : 300 gf.cm
Insulated resistance : >10M?(500V)
Insulated electricity power : 600VAC/1mA/1s
Rise in Temperature : <40K(120Hz)
Noise : <35dB(120Hz,No load,10cm)
Model : 28BYJ-48 ? 5V
