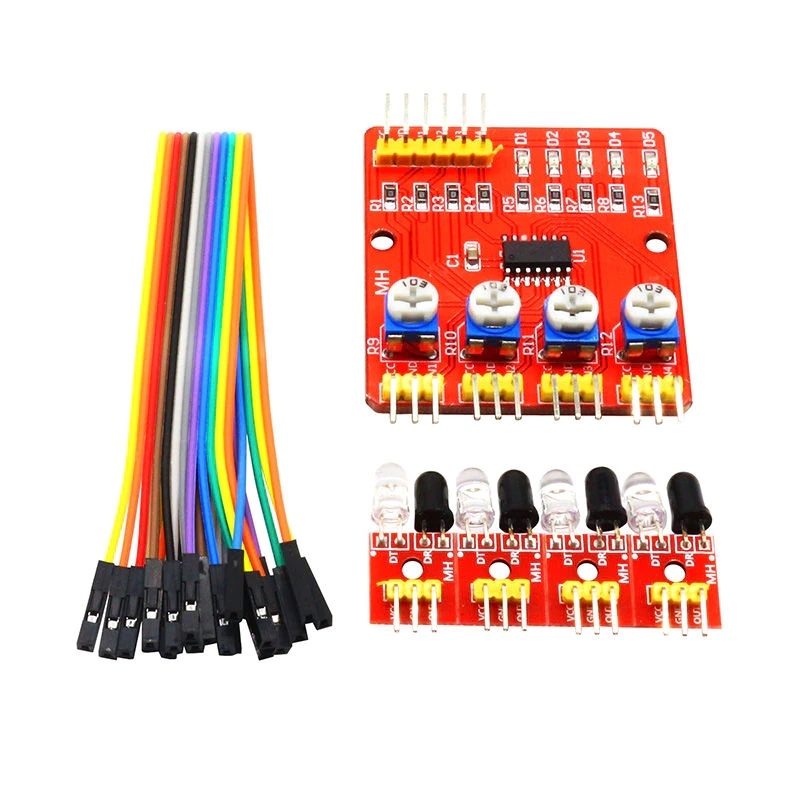

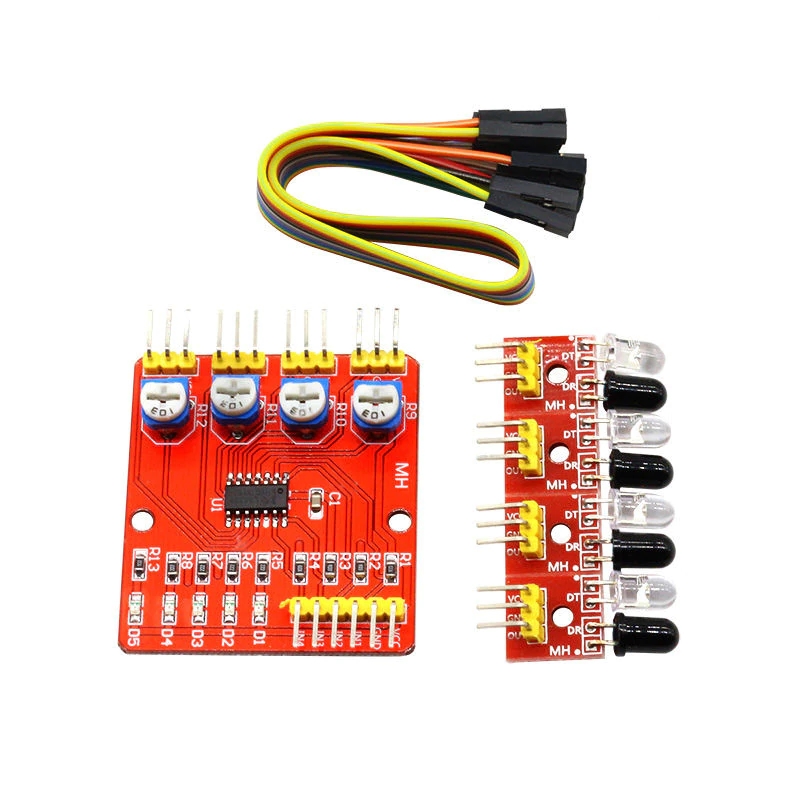

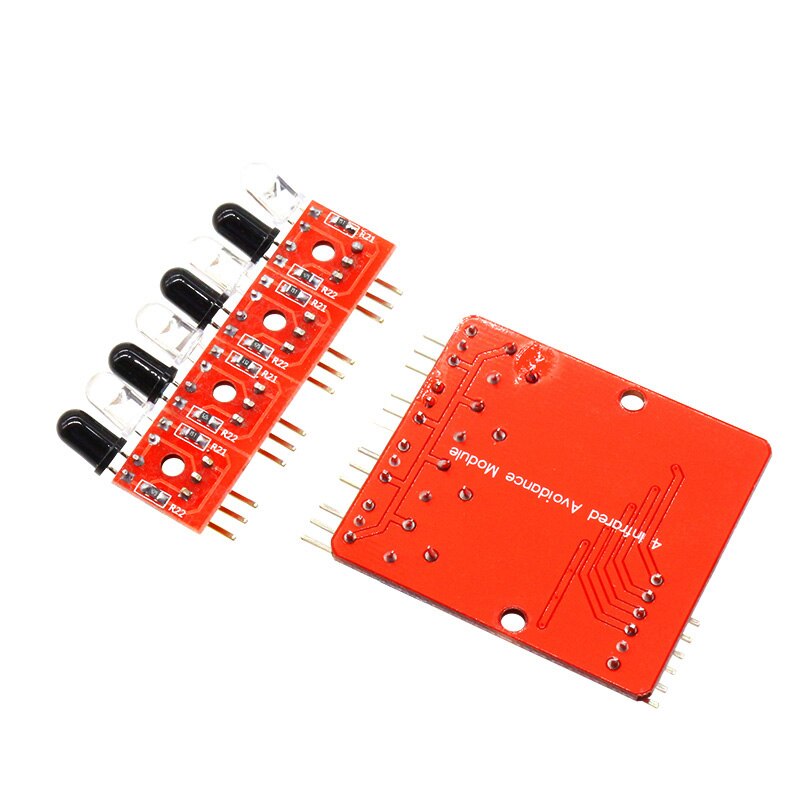

Four-Way Infrared Tracing Tracking Module

Four-Way Infrared Tracing Tracking Module

SKU: AR130 Categories: ,


  • A smart car or robot hunt (including black and white lines), walking along the path of the black line, also known as tracing.
  • Smart car to avoid the cliff, anti-drop.
  • Smart car for obstacle avoidance


  • Operating voltage: DC 3.3V-5V
  • Operating Current: try to choose more than 1A power supply
  • Operating Temperature: -10 ? C – +50 ? C
  • Mounting Aperture: M3 screw
  • Detection Distance: 1mm to 60 mm adjustable closer the performance is more stable, the white reflection farthest.

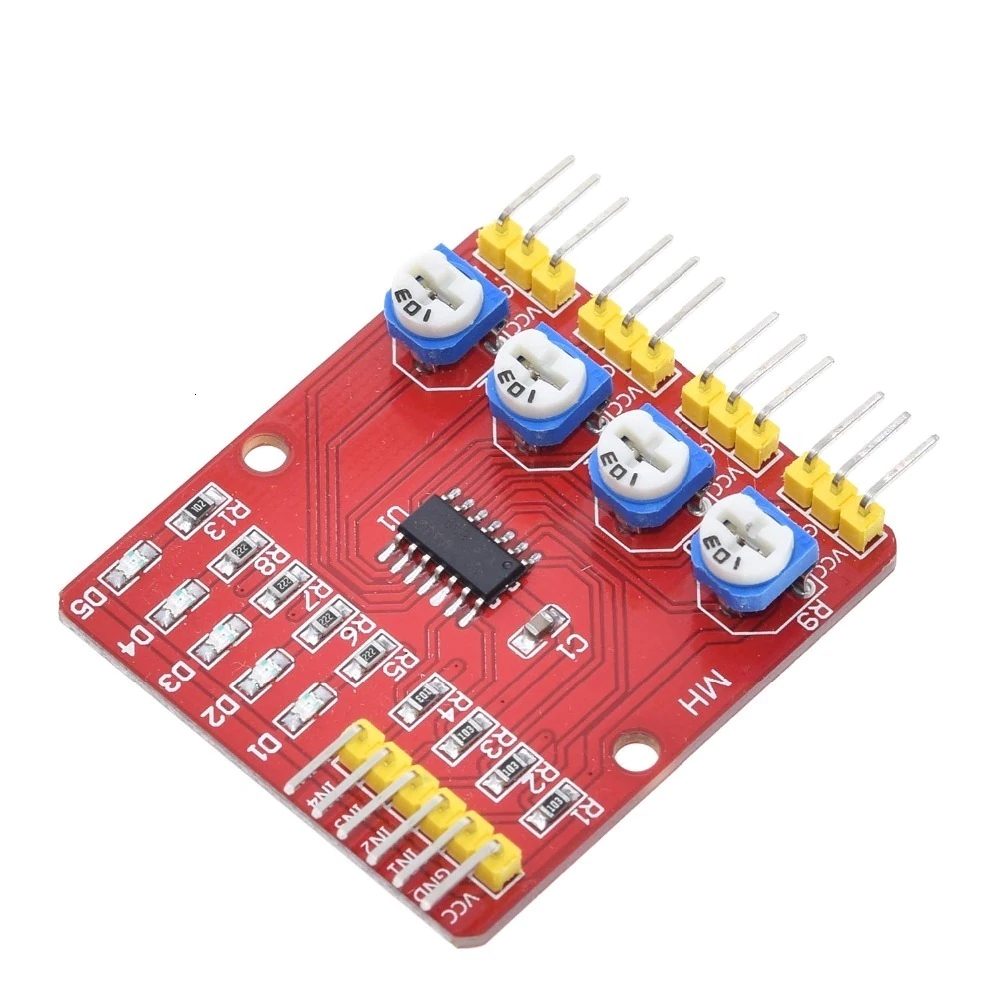

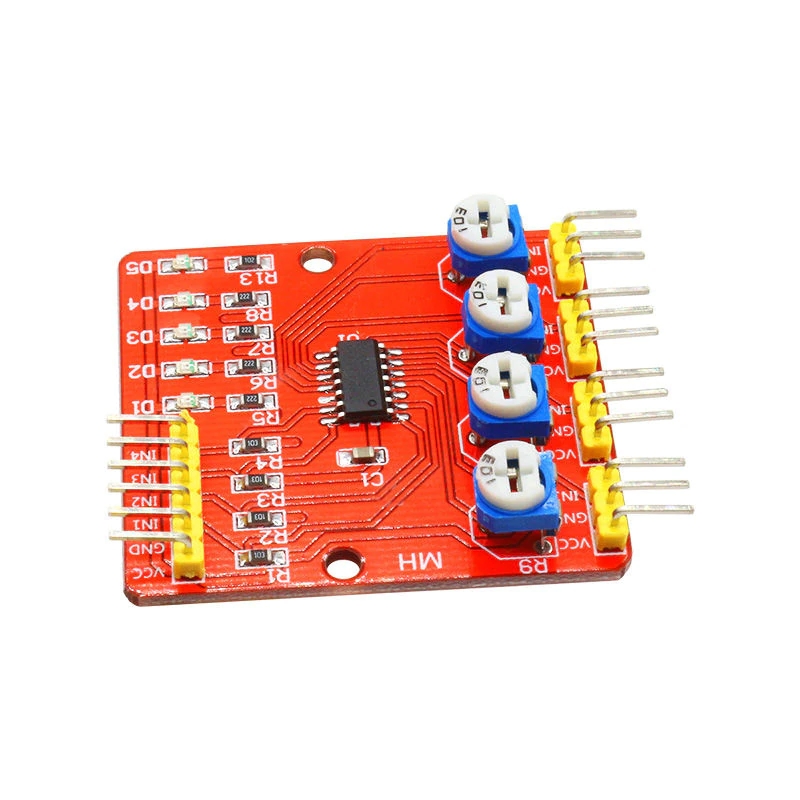

  • Size: the control board 4.4mm ? 4.0mm ? 12mm (L ? W ? H)

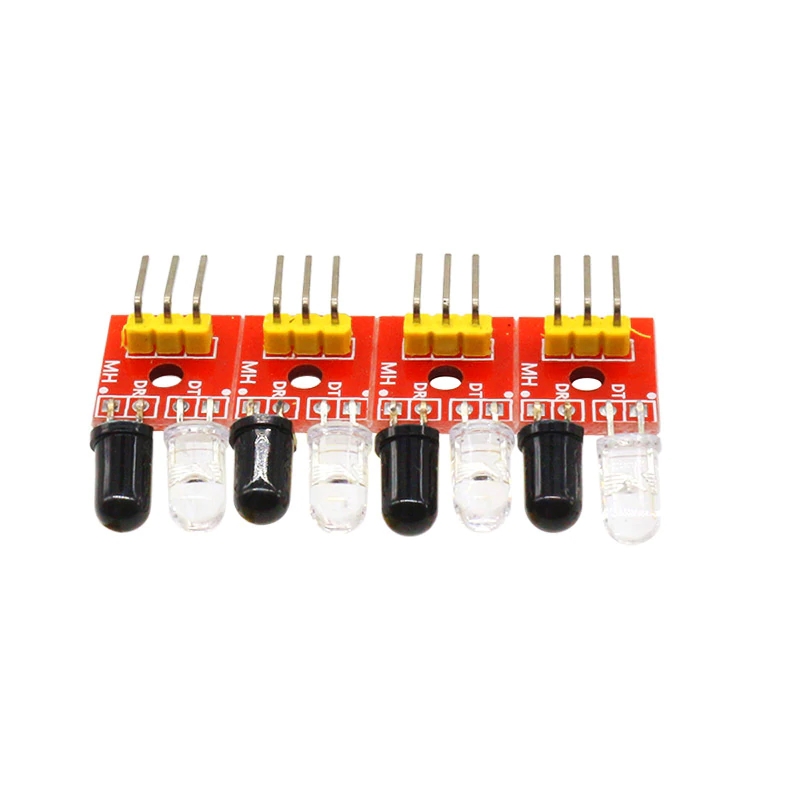

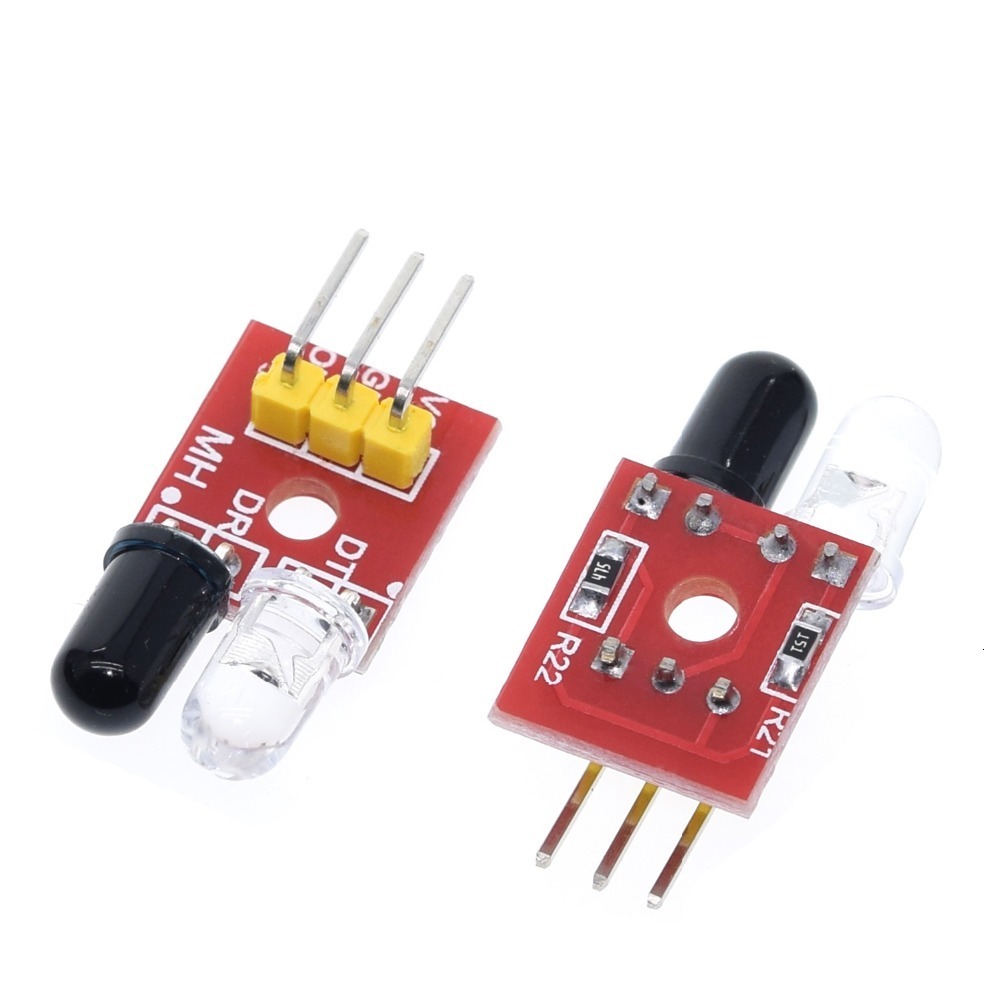

  • Small plate forward 25mm x 12mm x 12mm (L ? W ? H)

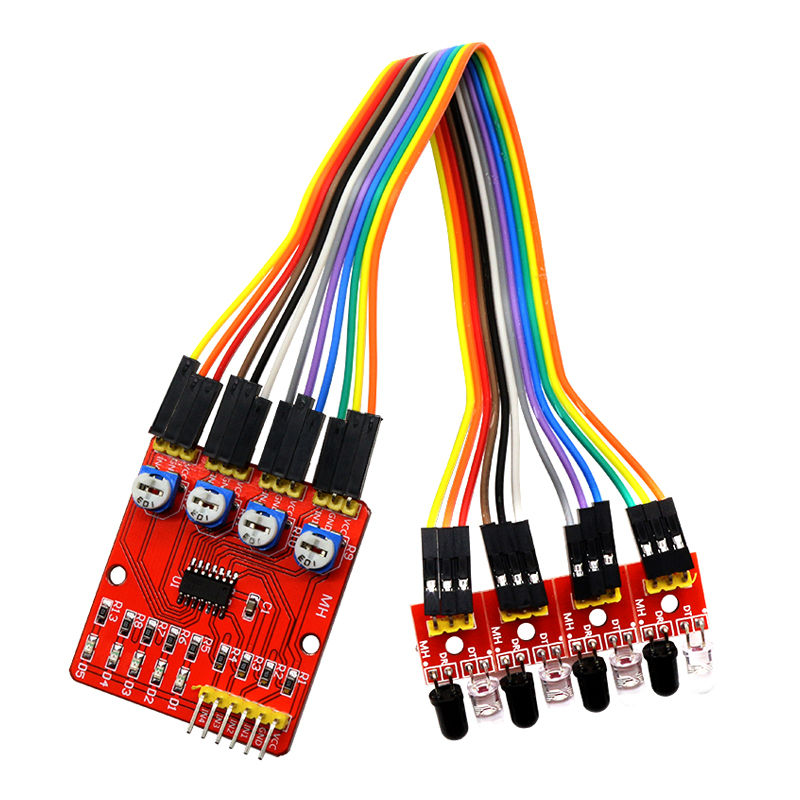

  • The output interface: 6-wire interface (1234 for the 4-way signal output terminal, + positive power, – the negative power supply is ground)
  • Output signal: TTL level (directly connected microcontroller I / 0, sensitive to infrared light reflected back by the sensor, the red light is on, the output low; absence of infrared light, the light does not shine, the output high level.)
