Description
Overview

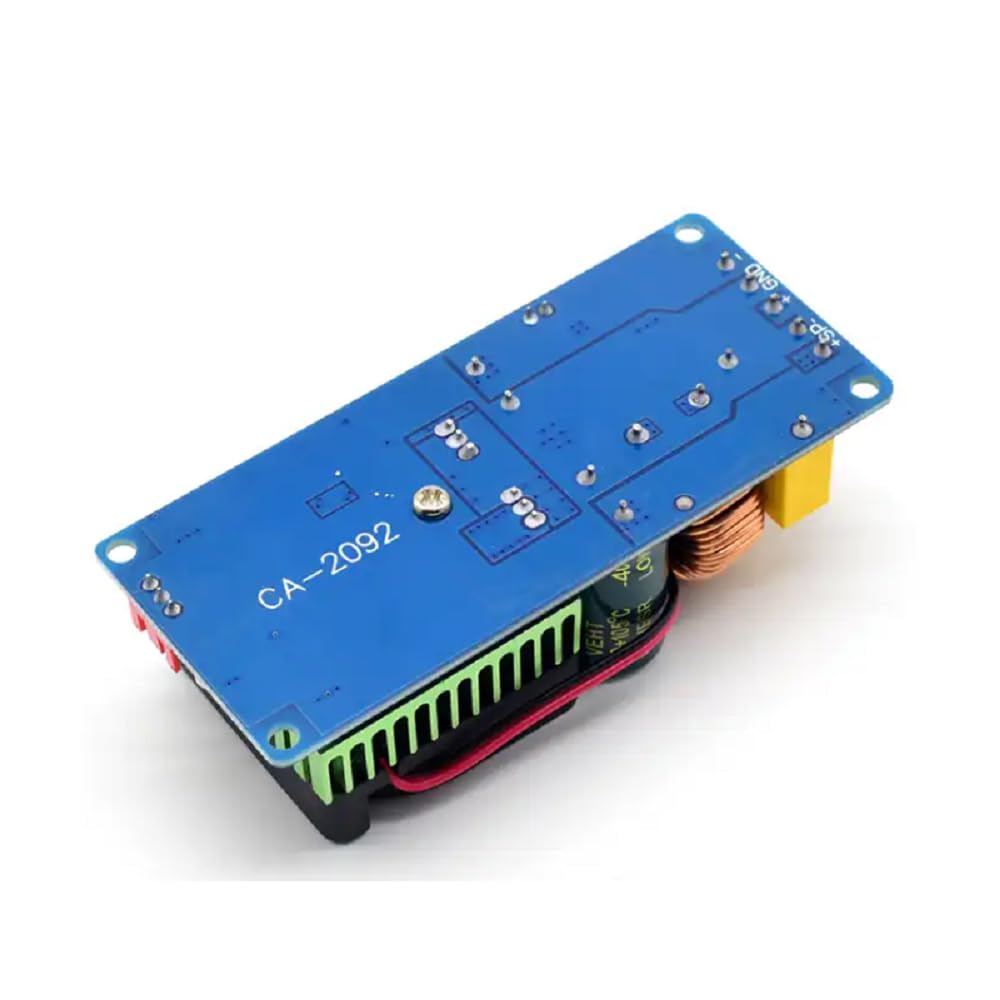

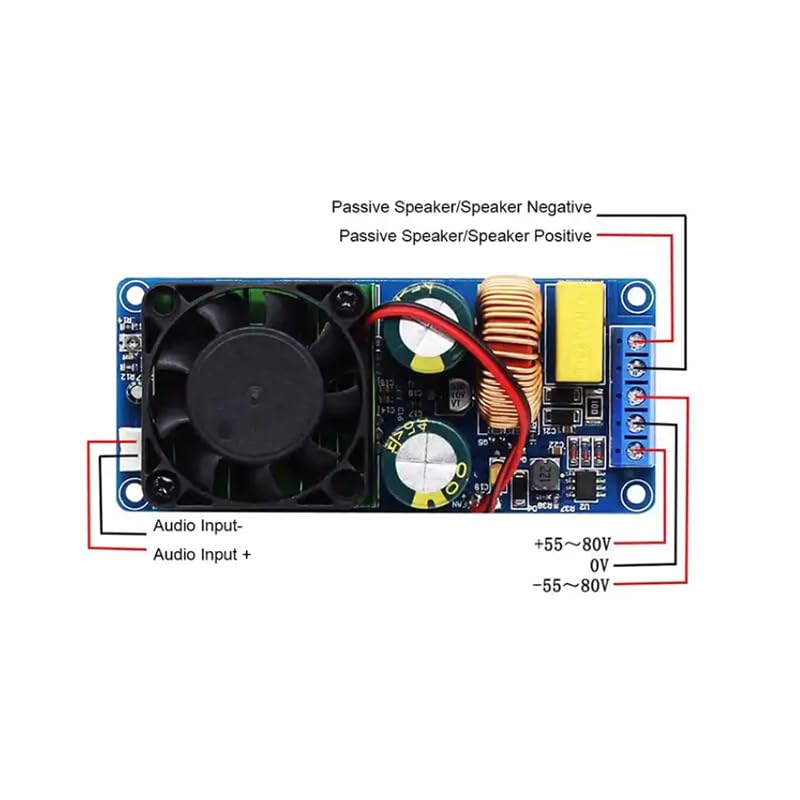

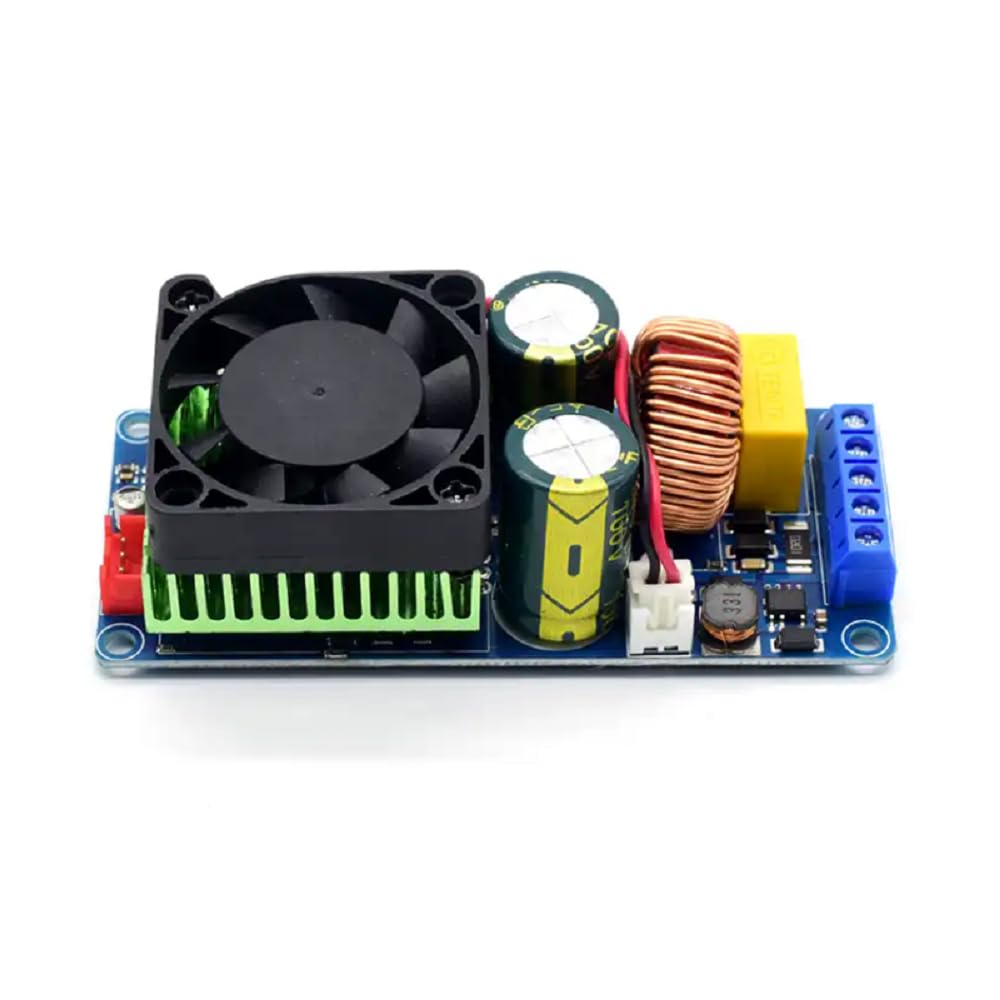

- Digital class D audio amplifier board based on the IRS2092 chip.
- Provides a single (mono) output channel with a maximum power rating of 500 W.
- Frequency response from 20 Hz to 20 kHz, suitable for hi‑fi audio applications.
Features
- High‑efficiency class D operation reduces heat dissipation.
- Integrated IRS2092 control IC for precise digital audio processing.

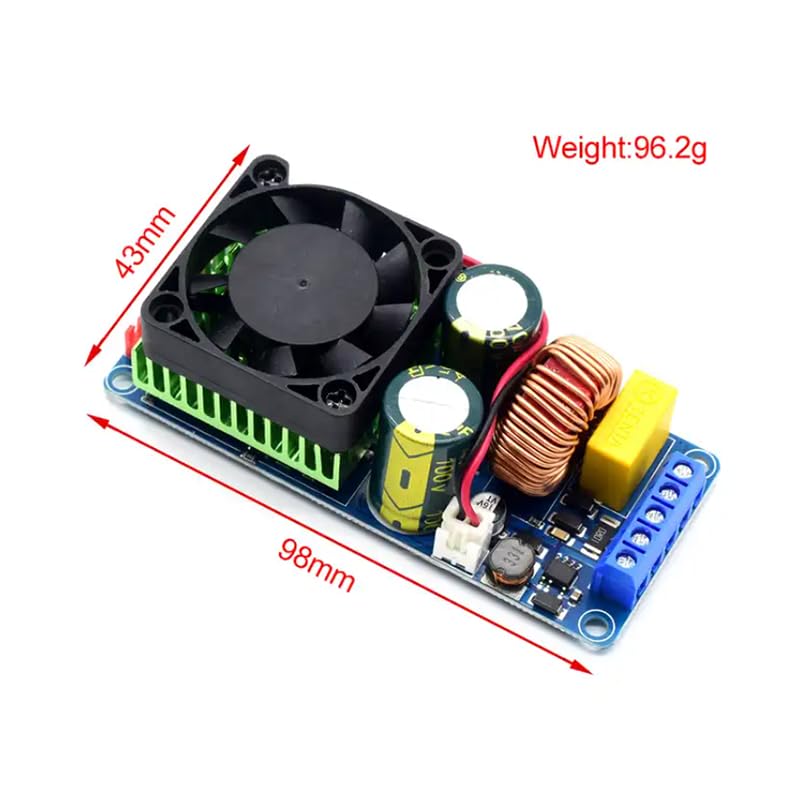

- Compact PCB layout for easy integration into audio projects.
Specifications
| Power Output | 500 W (mono) |
| Channel Configuration | Mono |
| Frequency Response | 20 Hz – 20 kHz |
| Amplifier Class | Class D |
| Control Chip | IRS2092 |
