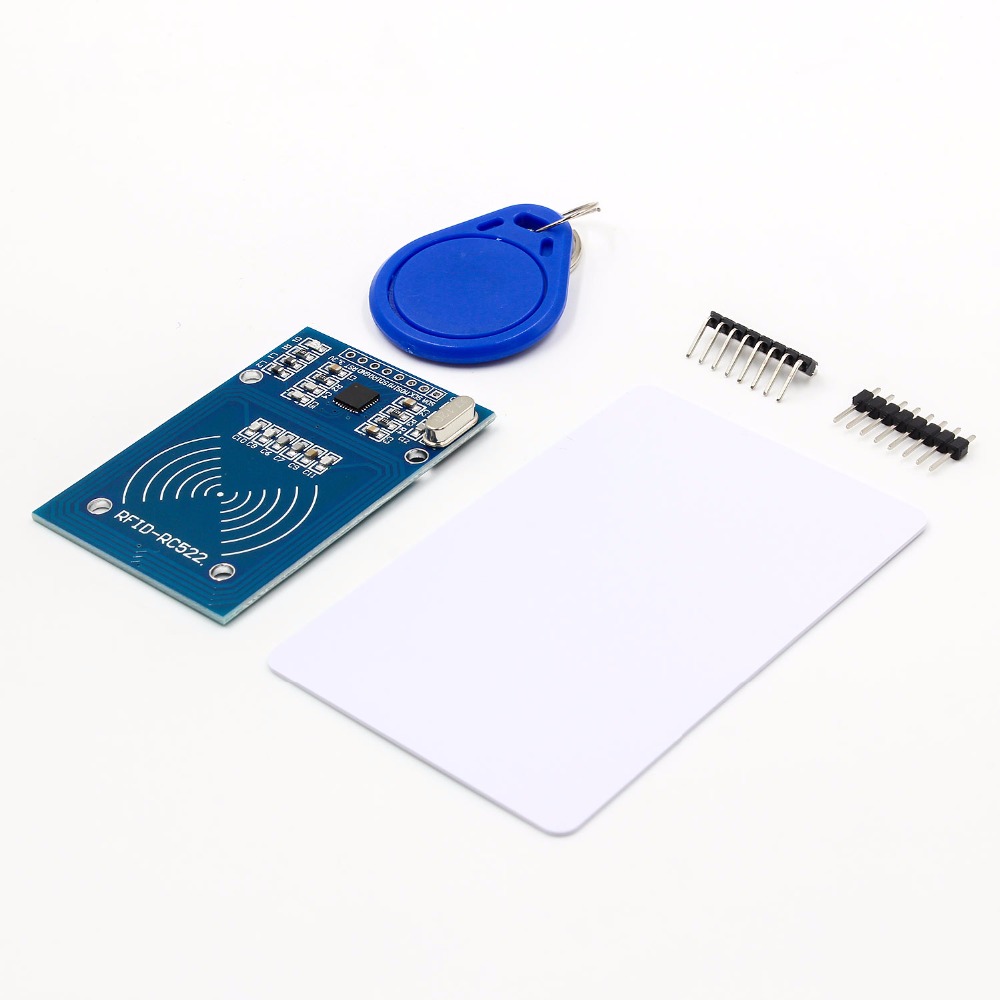

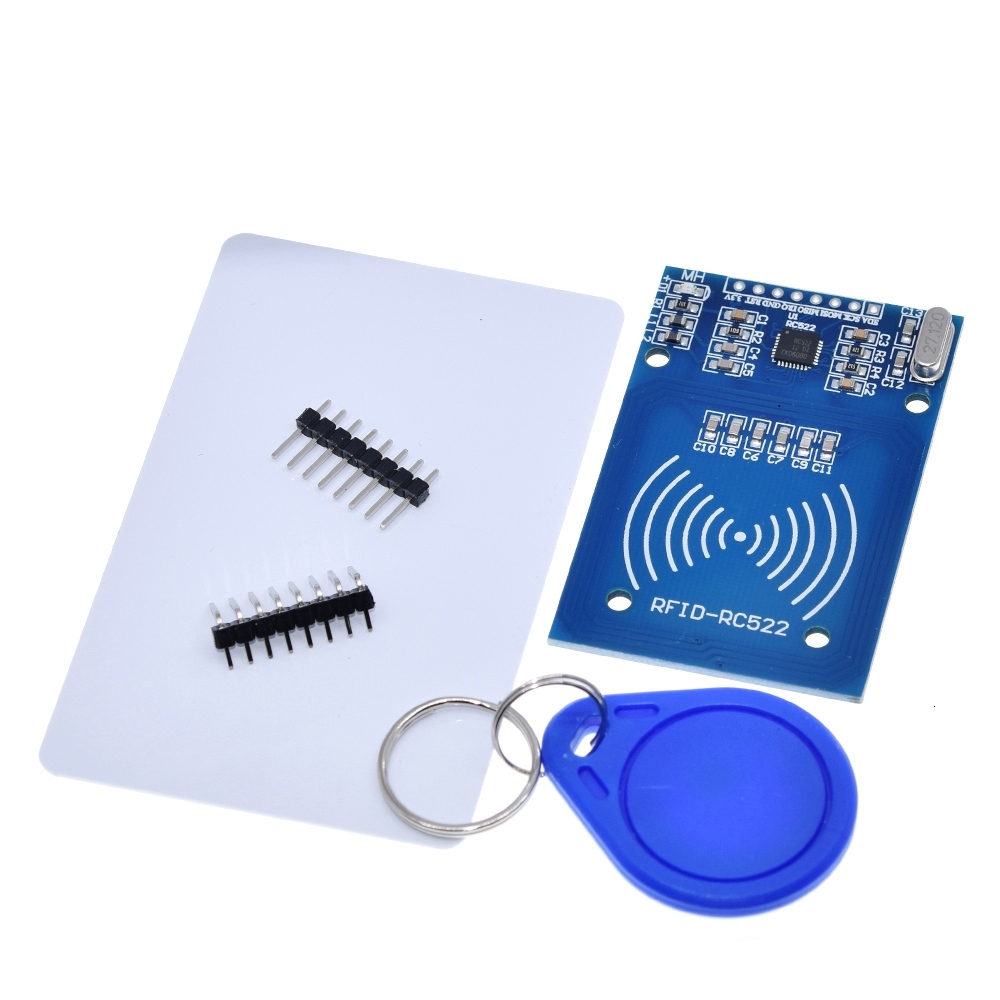

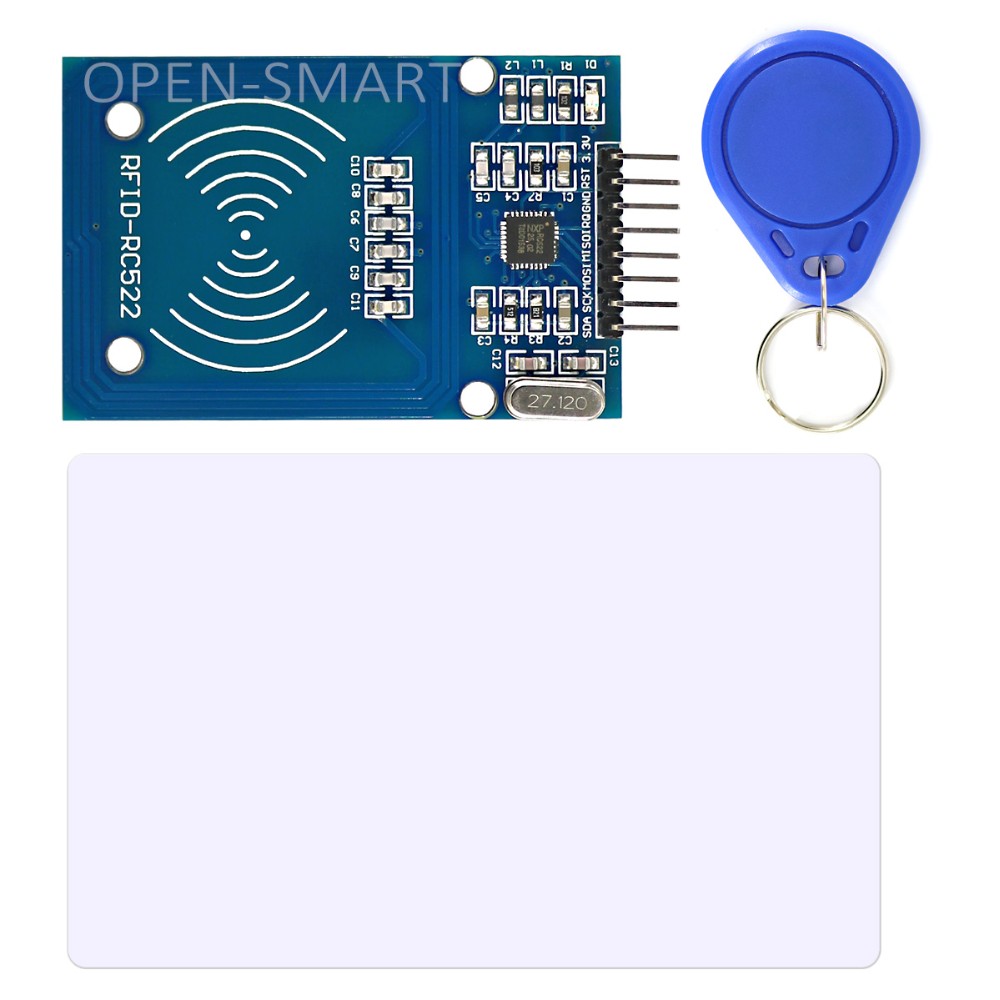

MFRC522 RFID Tag and Reader

රු320.00

MFRC522 RFID Tag and Reader

SKU: 15 Category:

MF RC522

  • is used in highly integrated 13.56MHz contactless communication card chip to read and write,
  • The MF RC522 use of advanced modulation and demodulation concept completely integrated in all
  • communication methods and protocols at 13.56MHz.
  • The MFRC522 transmission modules support the following operating mode:
  • Reader/writer mode supporting ISO 14443A / MIFARER

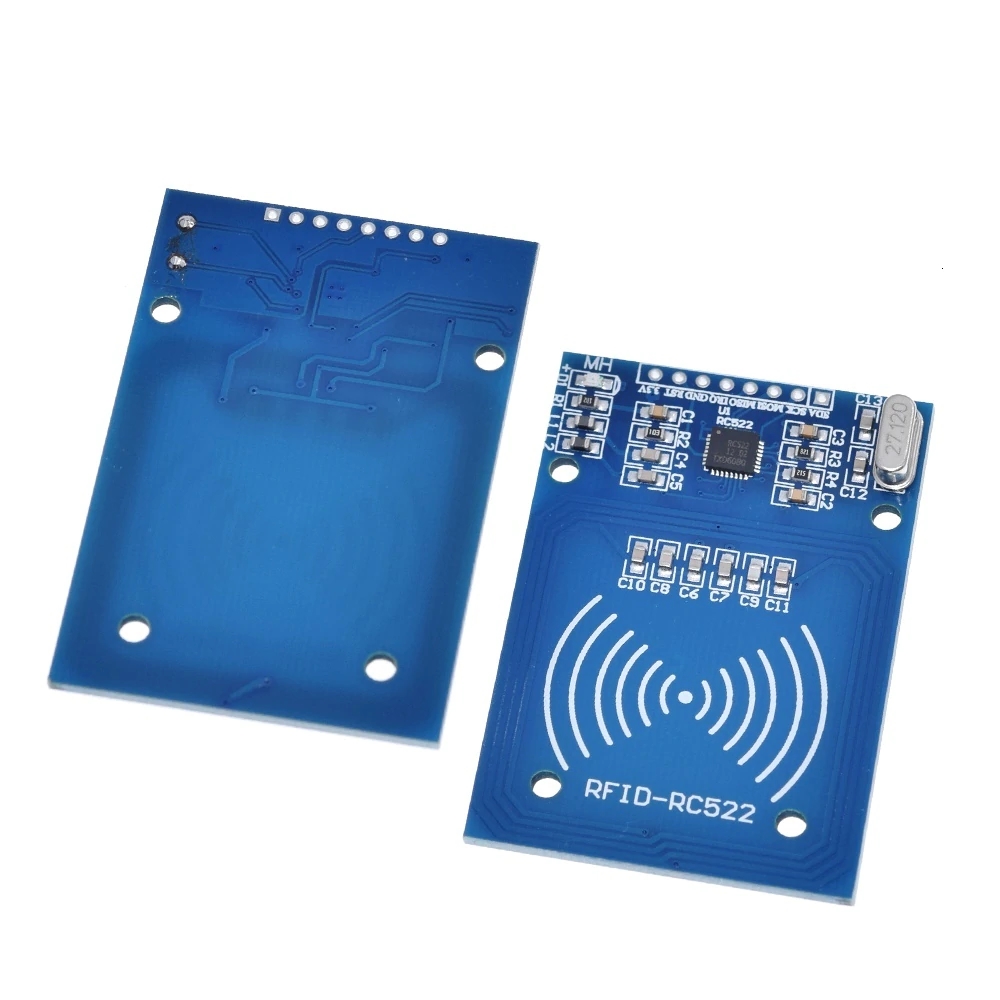

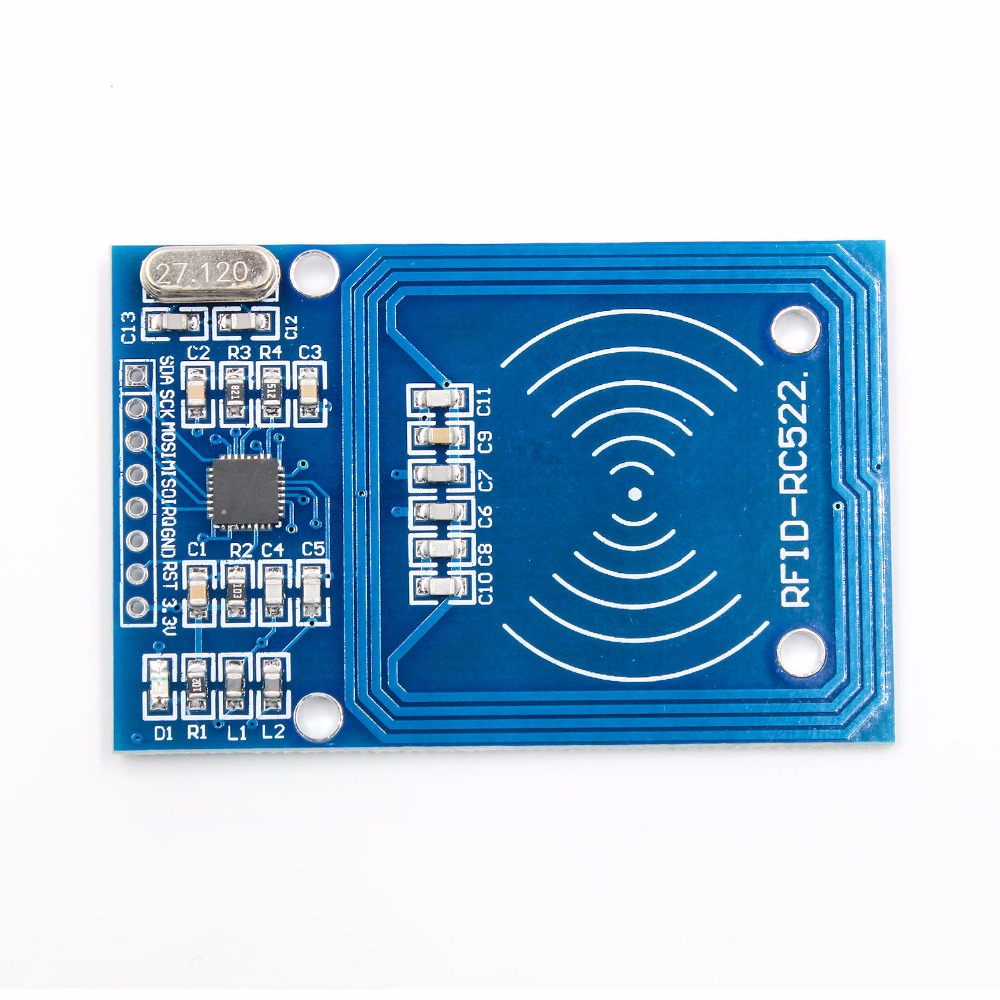

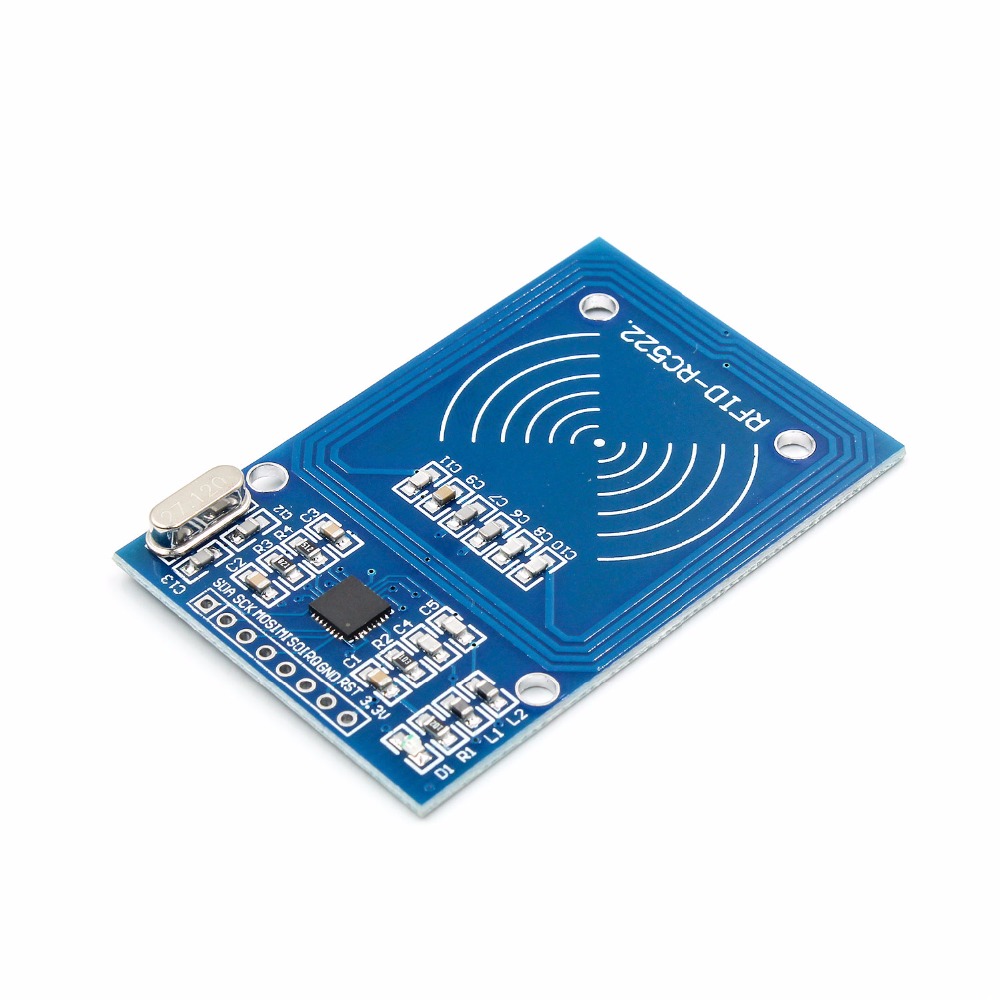

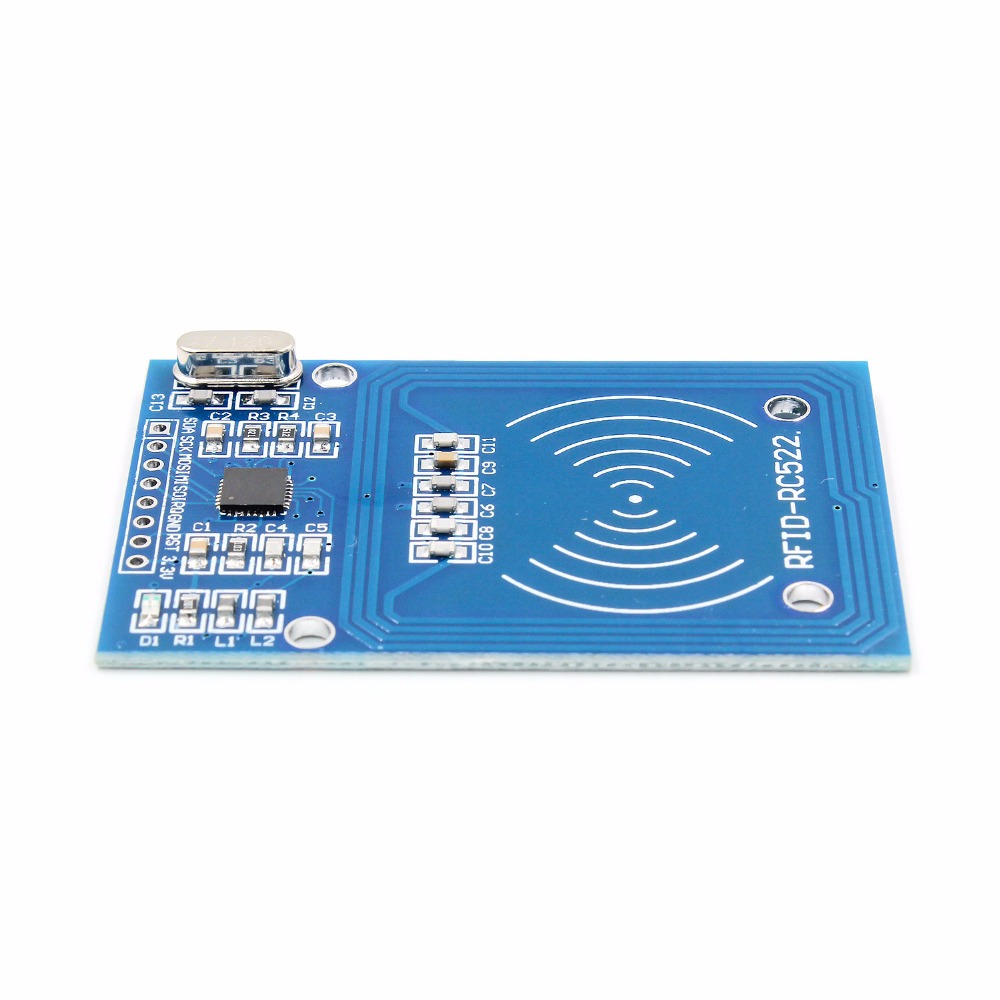

  • The RFID Module with the Philips MF RC522 chip is used for RFID products development.
  • The Module supply voltage is 3.3V, users can connect the module to any CPU board with the SPI interface.

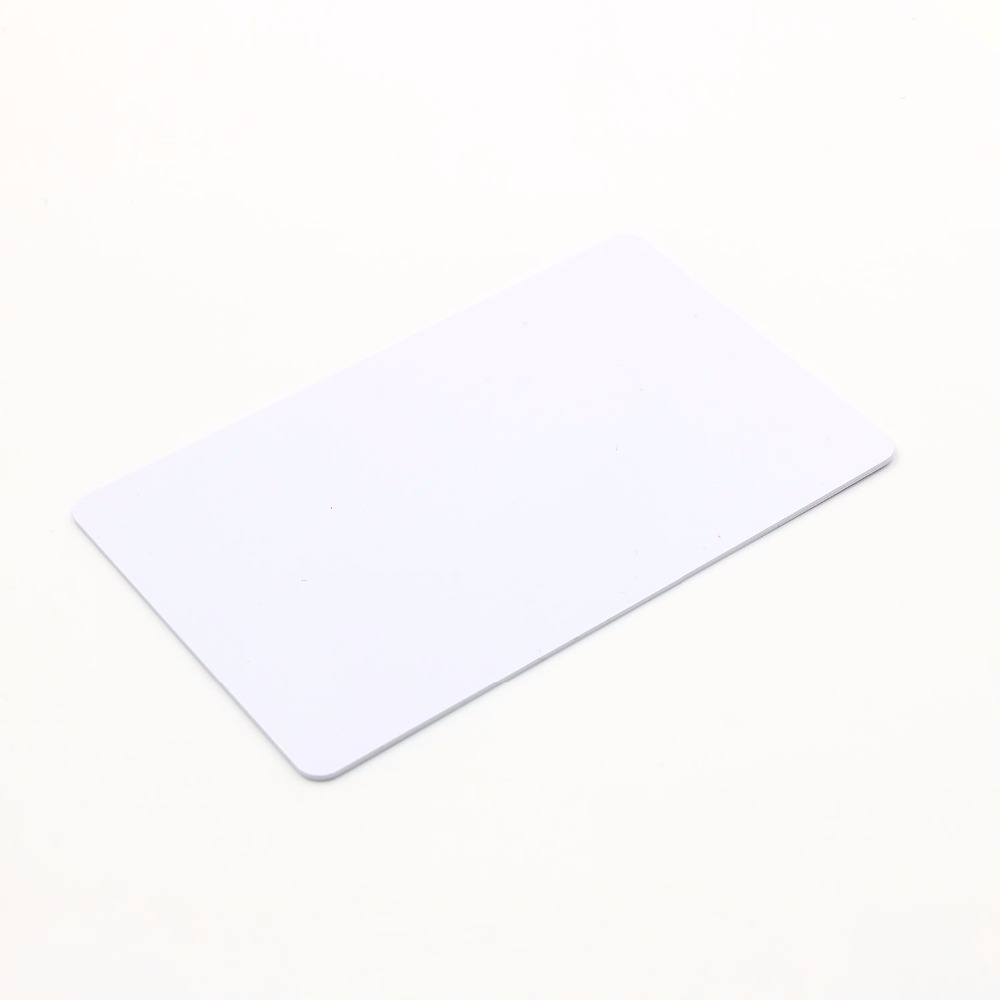

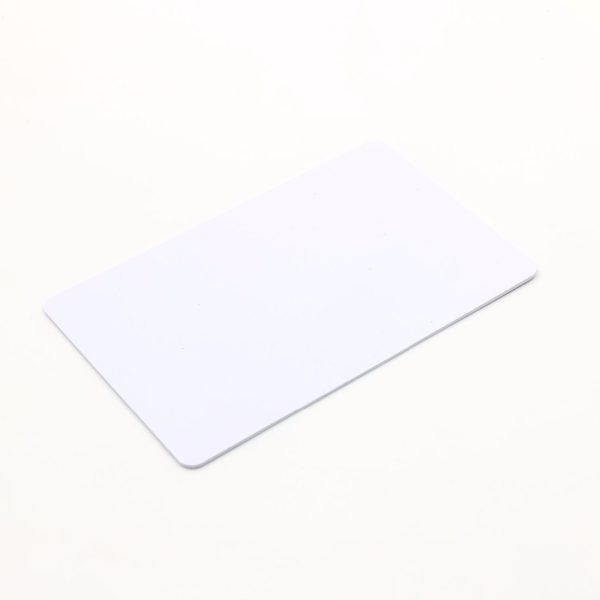

IC Card:Capacity: 8KB EEPROM

  • Divided into 16 sectors, each sector is 4 blocks, each block is 16 bytes, each block as 1 unit;
  • Each sector has a separate set of passwords and access control;
  • Each card has a unique 32-bit serial number;
  • Have anti-collision mechanism, support for multi-card operations;
  • No power, with an antenna, embedded encryption control logic and communication logic circuit;
  • Data retention period of 10 years, can be rewritten 100,000 times, reading limitless;
  • Operating Temperature -20 ? ~ 50 ? ; Humidity is 90% ;
  • Operating frequency is 13.56MHz;
  • RF protocol: ISO14443A;
  • Communication speed: 106KBPS;
  • Read and write distance: ? 10cm (regardless of the reader);

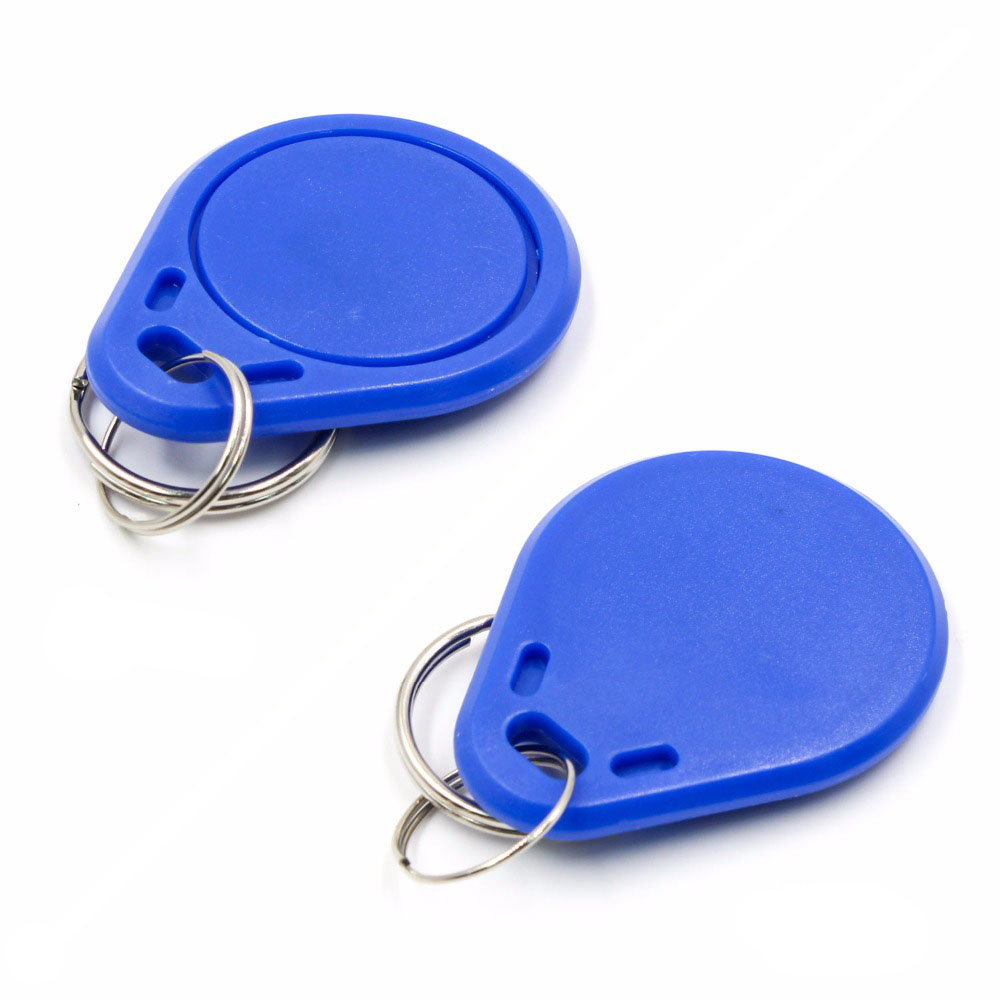

  • NFC TAG Keychain:
  • Main Chip: Philips Mifare 1 S50;
  • Storage capacity: 8Kbit, 16 partitions, each partition with 2 grounp passwords;
  • Operating Frequency: 13.56 MHz;
  • Communication speed: 106K Boud;
  • Read and write distance: 2.5 ~ 10cm;
  • Read and write time: 1 ~ 2ms;
  • Operating Temperature: -20 °C ~ 85°C;
  • Endurance:> 100,000 times;

General Information

  • Current :13-26mA / DC 3.3V
  • Idle Current :10-13mA / DC 3.3V
  • Sleep current: <80uA
  • Peak current: <30mA
  • Operating Frequency: 13.56MHz
  • Supported card types: S50, S70, UltraLight, Pro, Desire
  • Product Physical Characteristics: Dimensions: 40mm × 60mm
  • Environmental Operating temperature: -20-80 degrees Celsius
  • Environment Storage temperature: -40-85 degrees Celsius
  • Relative Humidity: 5% -95%
  • Data Transfer Rate: Max. 10Mbit / s
