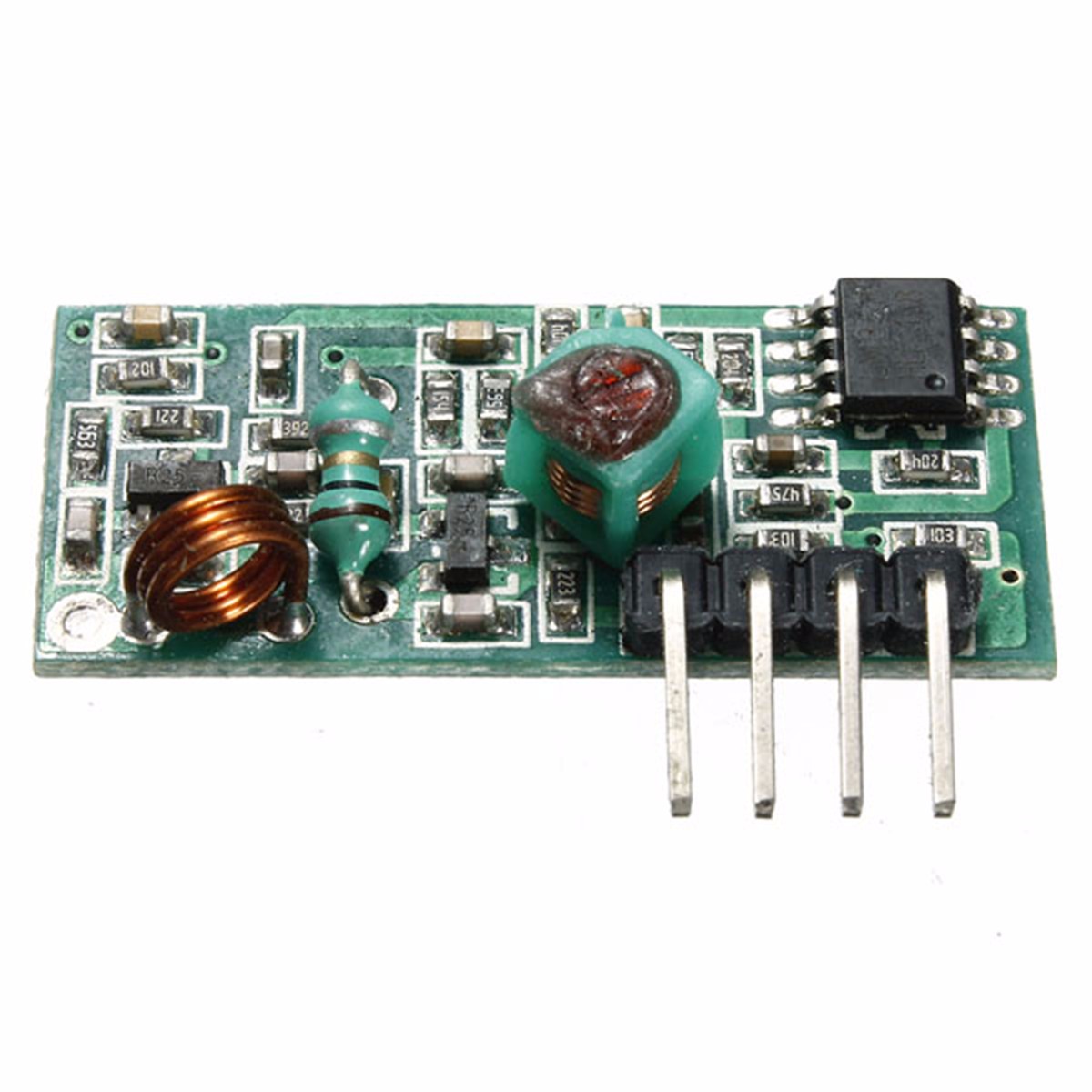

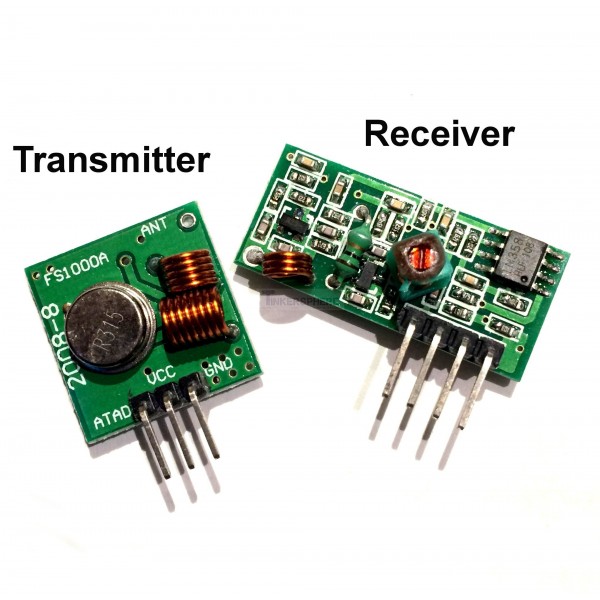

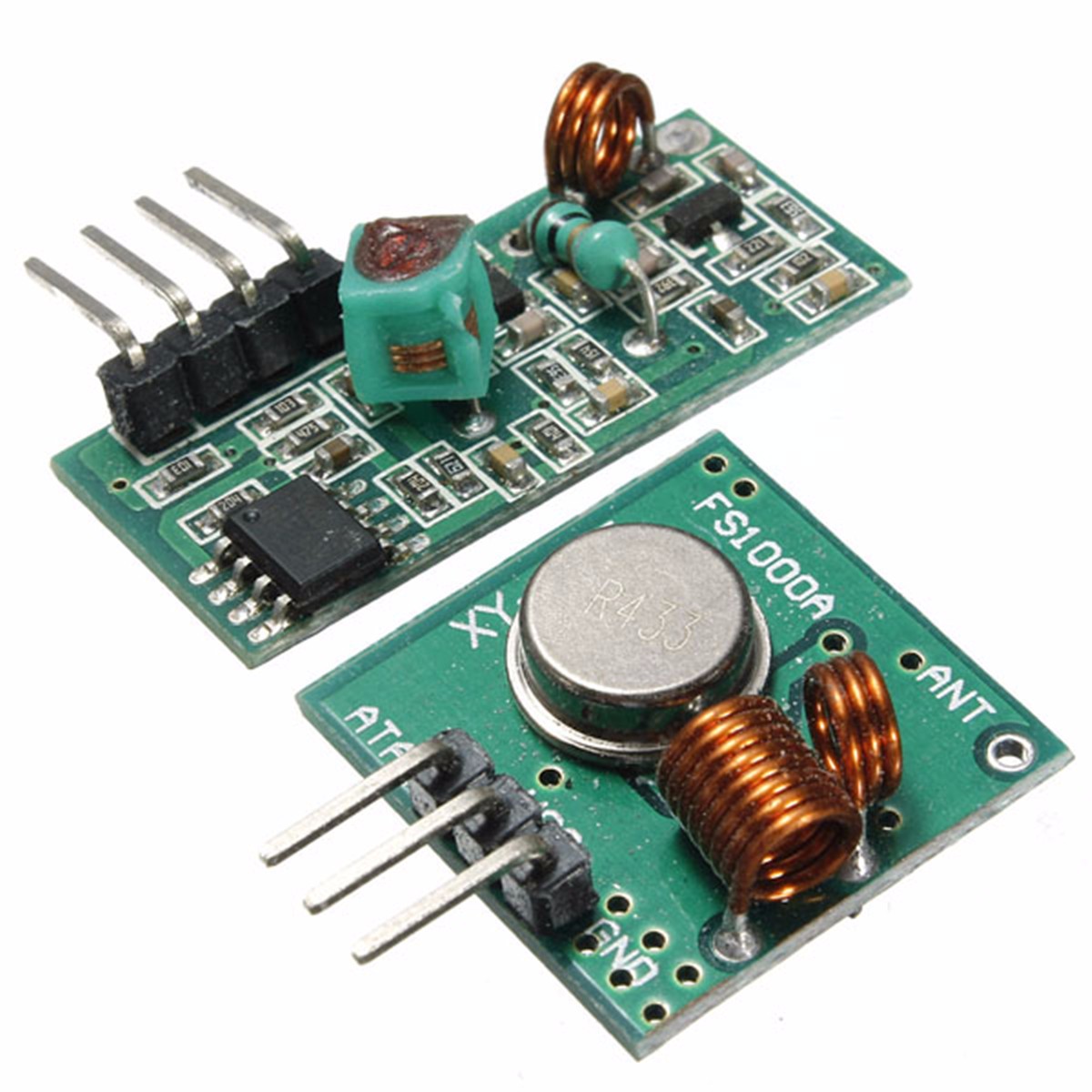

Receiver Module Specifications:
- Operating Voltage: DC 5V
- Quiescent Current: 4mA
- Receiving Frequency: 315MHz or 433.92MHz (select above)
- Receiver sensitivity: -105DB
- Antenna: 32cm solid core spiral wound
- Pinout from left ? right: (VCC, DATA, GND)

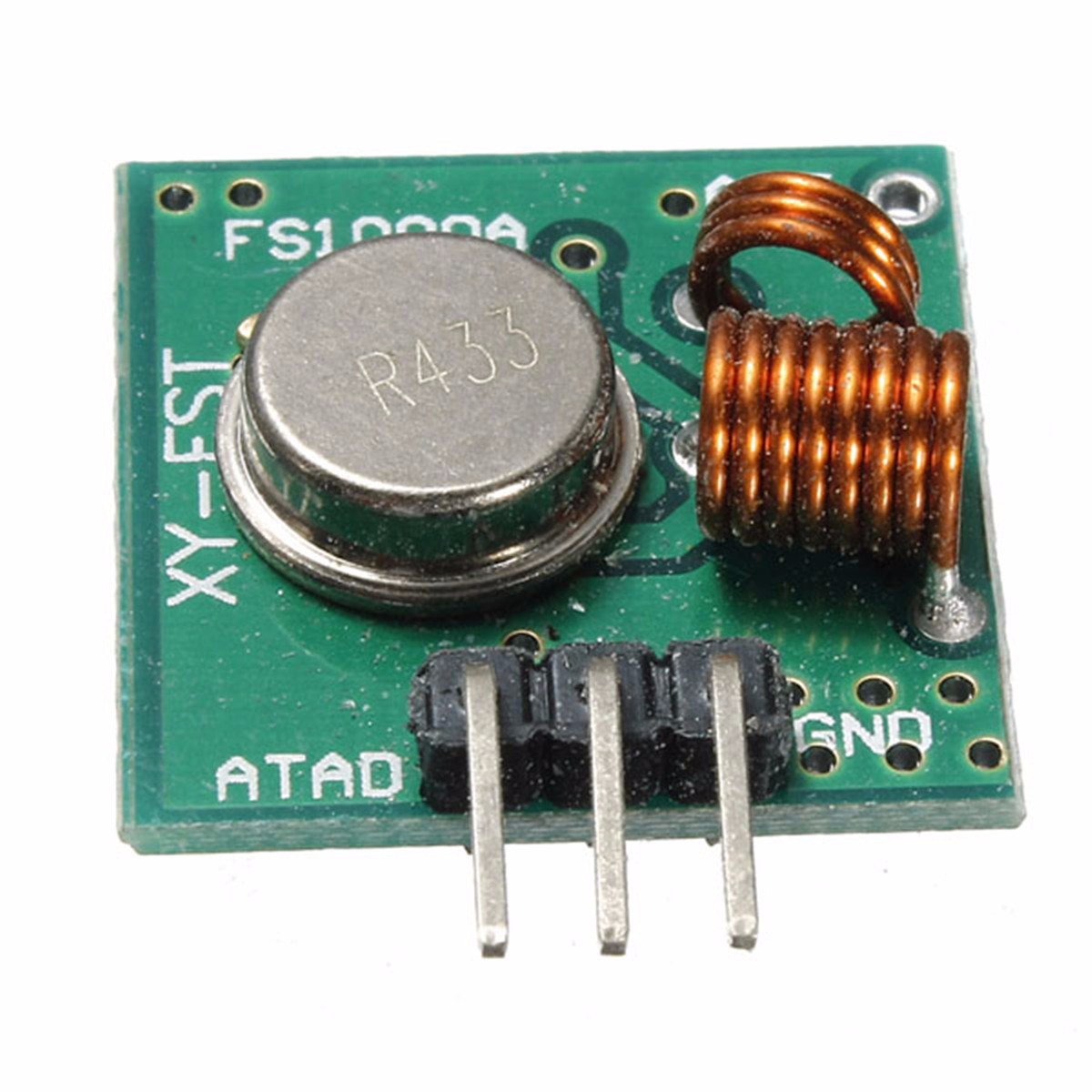

Transmitter Module Specifications:
- Launch distance: 20 – 200 meters (higher voltage yields better results)
- Operating voltage: 3.3V – 12V
- Operating mode: AM
- Transfer rate: 4KB / S
- Transmitting power: 10mW
- Transmitting frequency: 315MHz or 433MHz
- Antenna: 25cm solid core spiral wound
- Pinout from left ? right: (DATA, VCC, GND)
