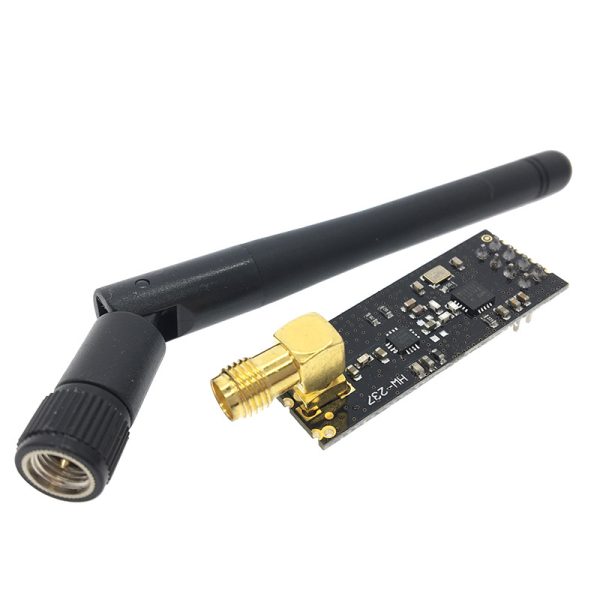

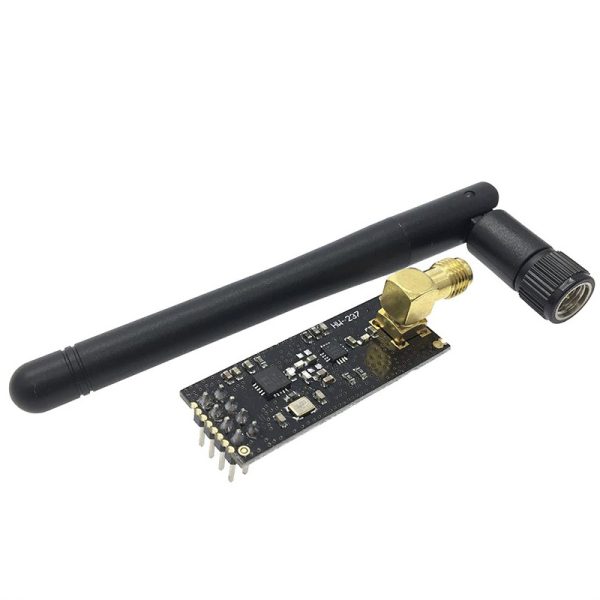

2.4G Long Distance NRF24L01+PA+LNA Wireless Transceiver Module with Antenna

රු475.00

2.4G Long Distance NRF24L01+PA+LNA Wireless Transceiver Module with Antenna

SKU: 86 Category:

Features

  • Uses 2.4G global open ISM band, with license-free.
  • Support six-channel data reception.
  • 2Mbit/s speed makes high-quality VoIP
  • Low Operating Voltage: 2.7 to 3.6V
  • Multi-Frequency Points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
  • SPI interface facilitates the communication with MCU I/O port.

Specification

  • Operating Frequency: 2400MHz ~ 2524MHz
  • Modulation: GMSK
  • Transmit power: more than +20 dBm, 50?
  • Receiver sensitivity:-95dbm
  • Operating voltage: 2.7V ~ 3.6V
  • Max Emission current: 115mA
  • Max Receive current: 45mA
  • Operating temperature: -45 degrees to +85 degrees
  • Storage temperature: -45 degrees to +125 degrees
  • Gain Of PA: 20 dB
  • Gain Of LNA: 10 dB
