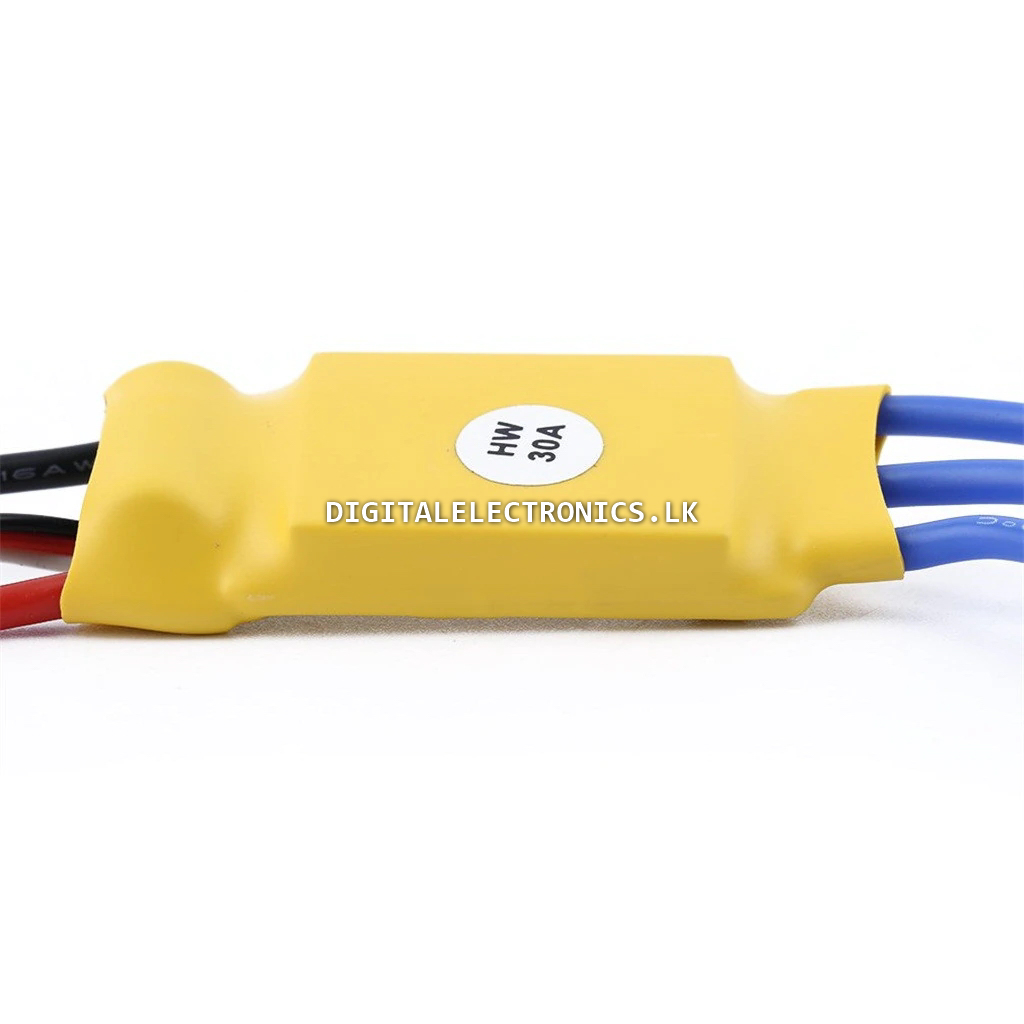

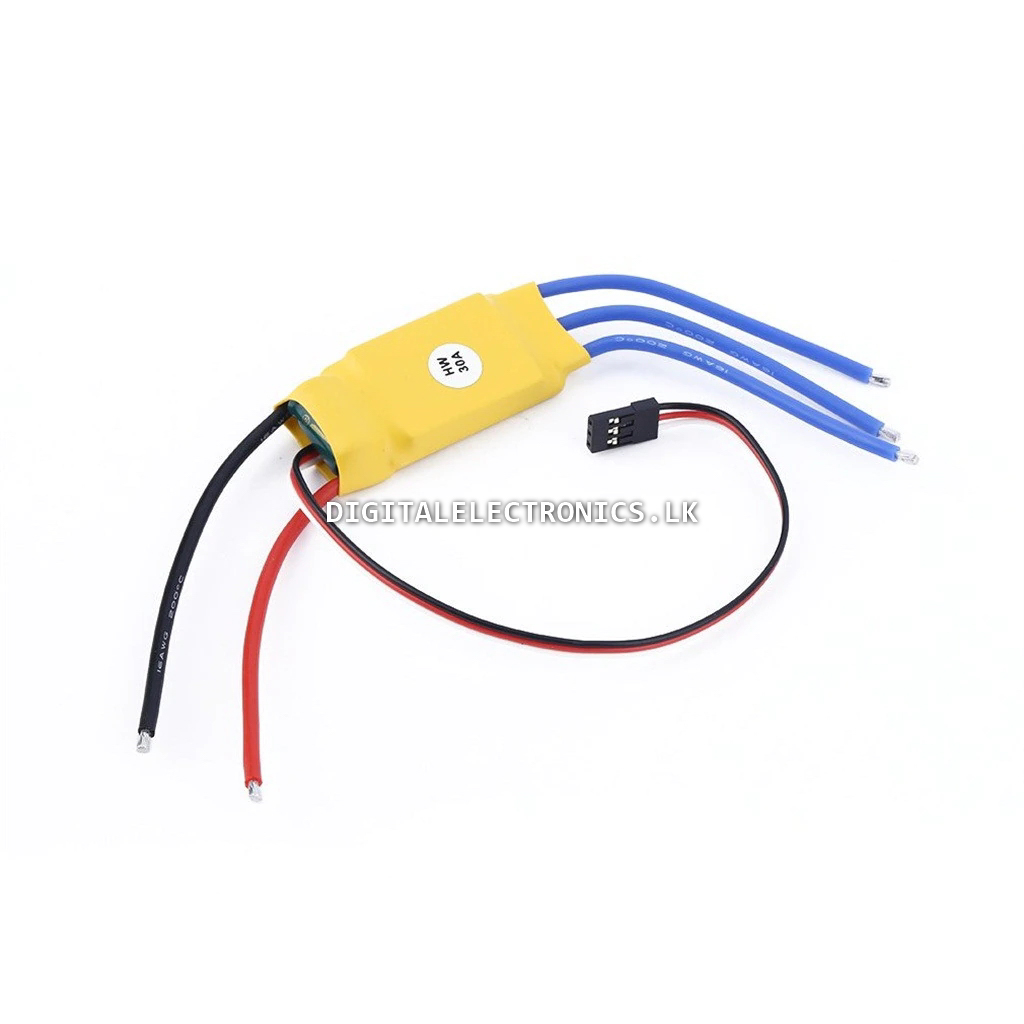

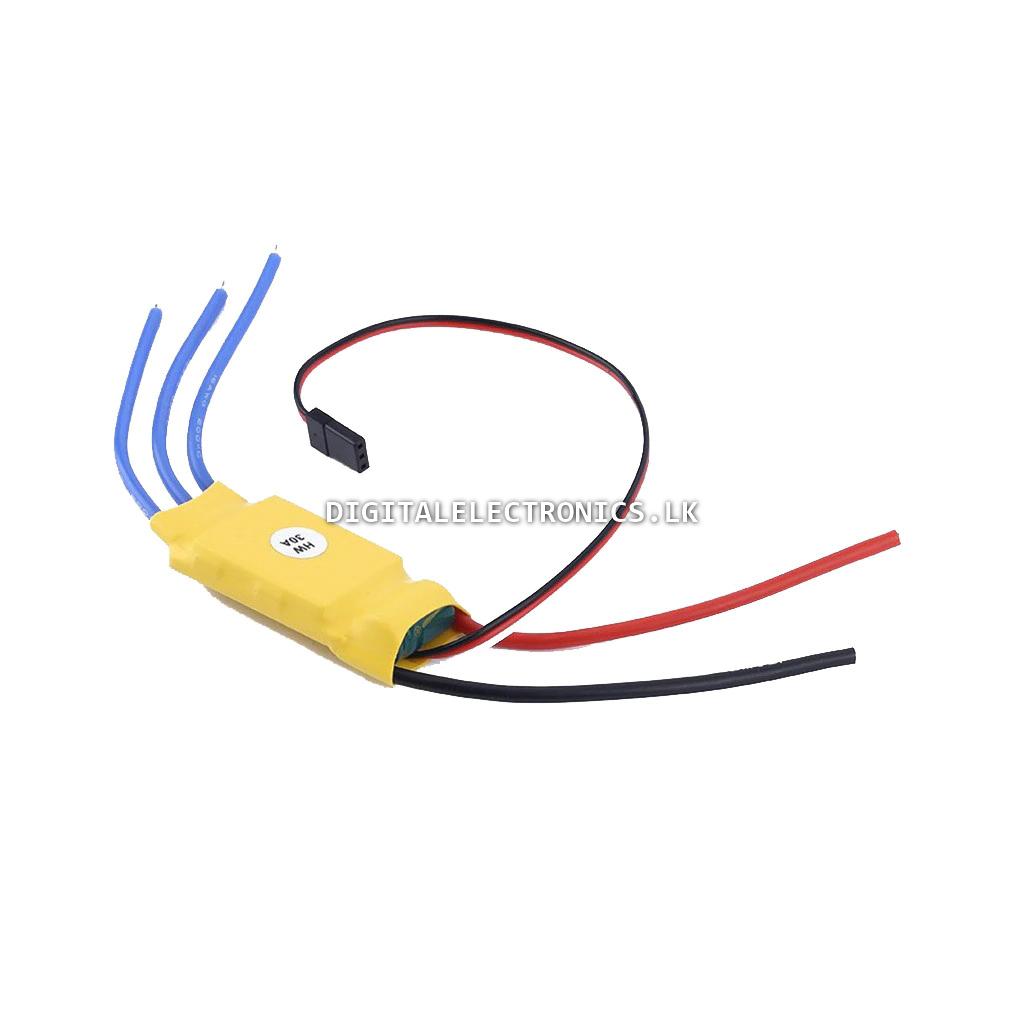

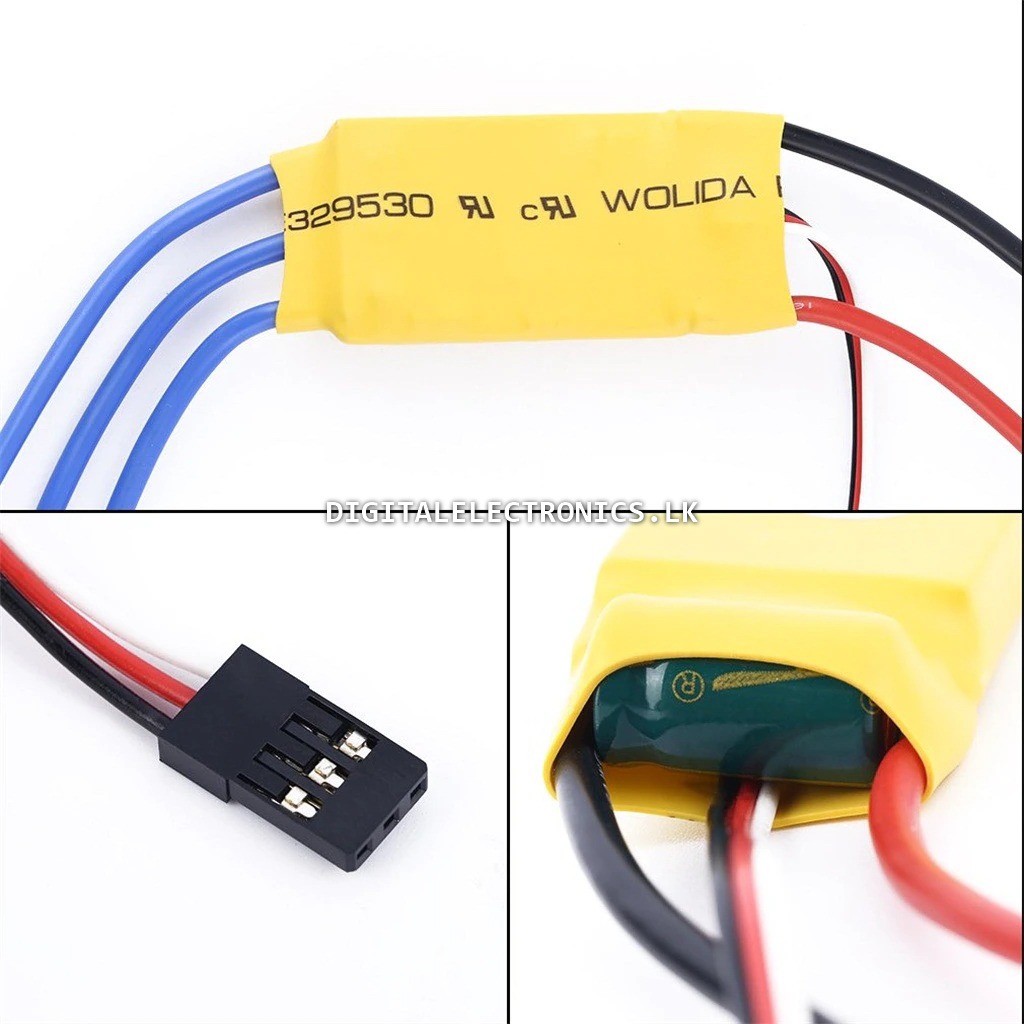

Features
- Continuous Current: 30A
- Voltage Range: 4V – 16V
- Number of Batteries: 4 – 12NiMH, 2 – 3LiPO (4LiPO does not allow the use of BEC output)
- BEC Output: Continuous 2A
- Automatically select 2-3LIPO, the protection voltage is 6V/9V;
- Automatically select NIMH, each protection voltage is 0.8V;
- Temperature protection, 110-degree surface temperature shutdown;
- Out of control protection, stop after 1 second without signal.
- The upper limit of rotation speed is up to 300,000 rpm in 2 poles, 50000 rpm in 12 poles, and 42000 rpm in 14 poles.
- 8kHz PWM control, using speed control curve.
- Automatic throttle adaption, suitable for more remote control equipment.
