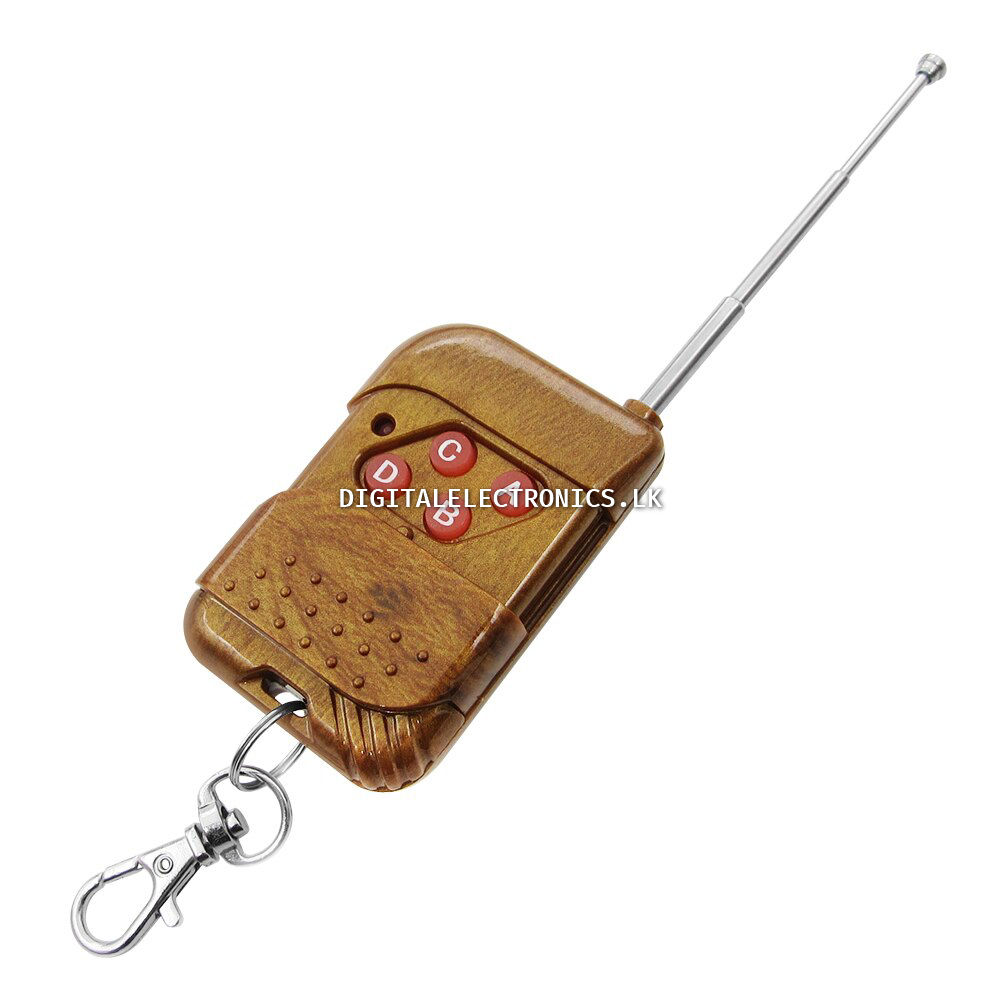

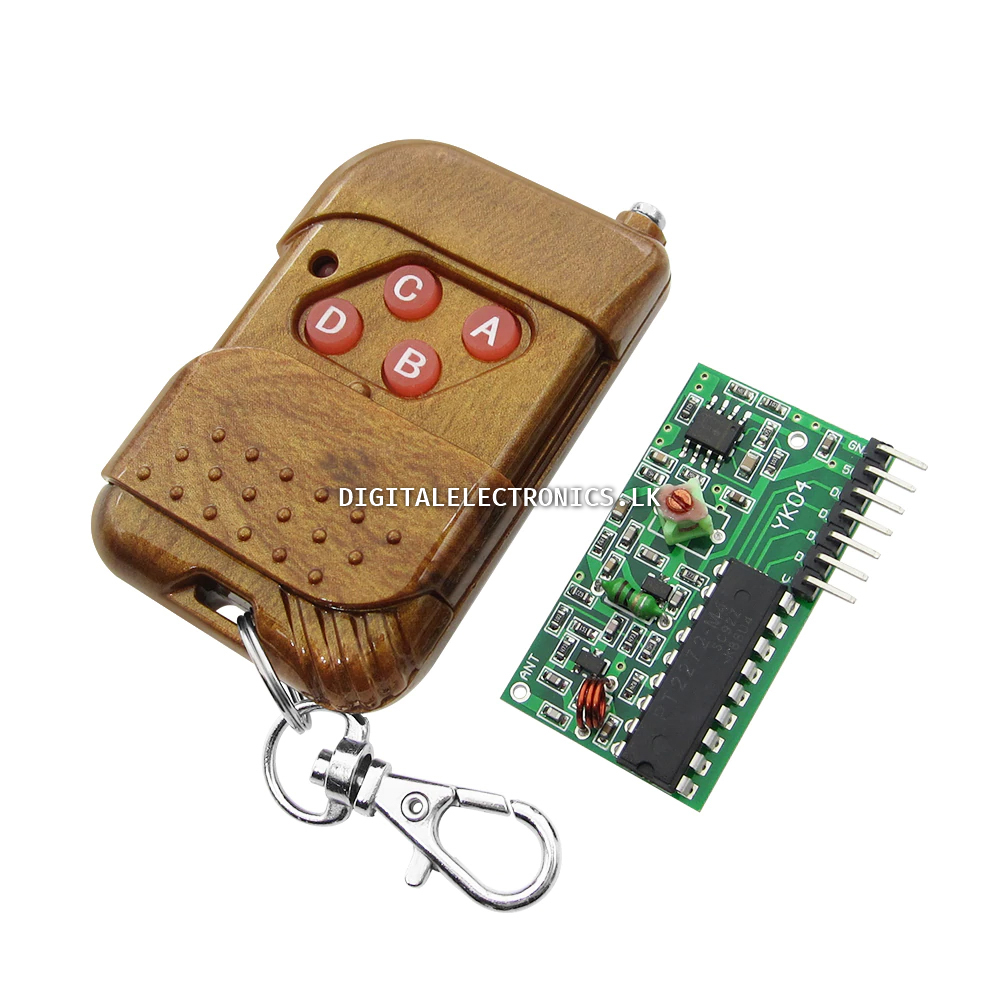

Remote Control:
- Operating voltage: DC 12V(27A / 12V battery x 1)
- Operating current: 10mA at 12V
- Radiated power: 10mW at 12V
- Transmission distance: 50m – 100m (open field, the receiver sensitivity of -100dbm)
- Transmitting frequency: 315MHZ
- Modulation mode: ASK (Amplitude Modulation)
- Encoder types: fixed code

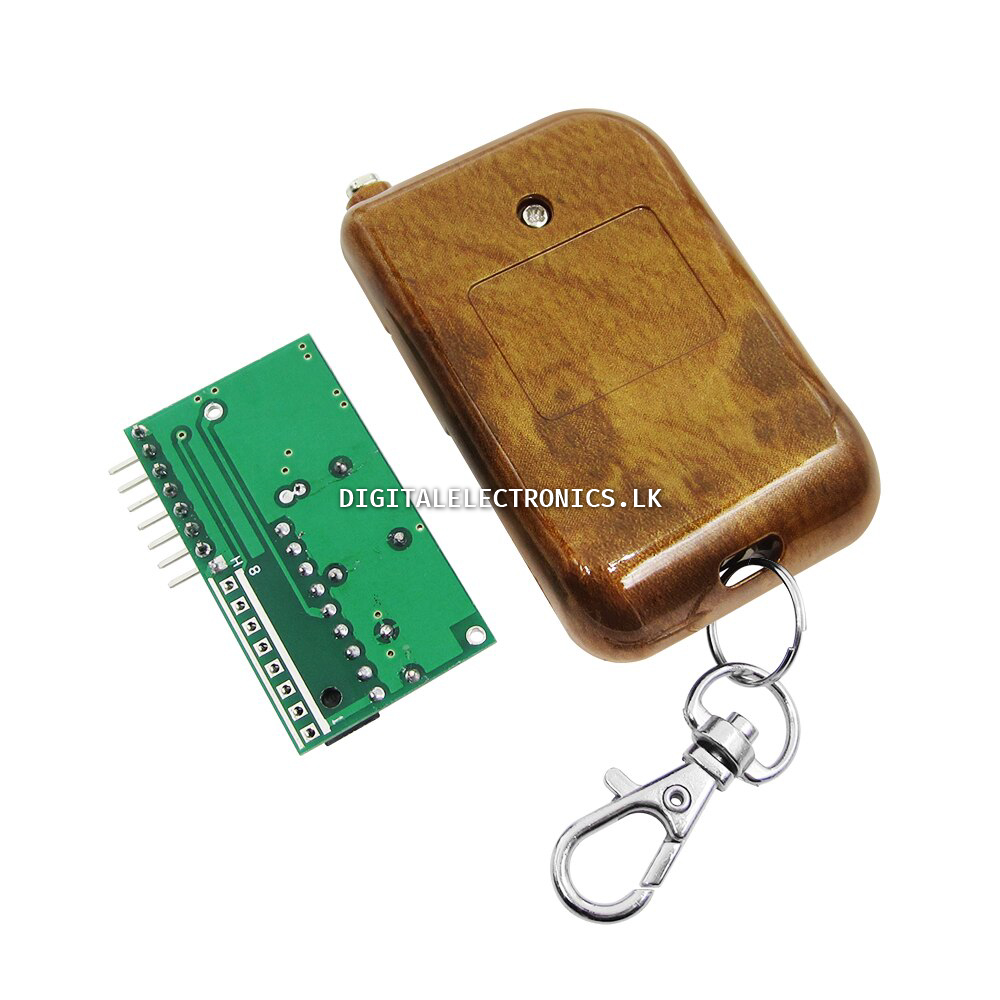

Decoding Receiver Board:
- Operating voltage: DC 5V
- Receiver sensitivity is -98dB
- Leg 7 bits: VT, D3, D2, D1, D0, +5V and GND
- VT is a valid signal high output pin upon receiving a valid signal, the pin output high may also drive the relay
- Size: 6.6 x 22 x 41mm
