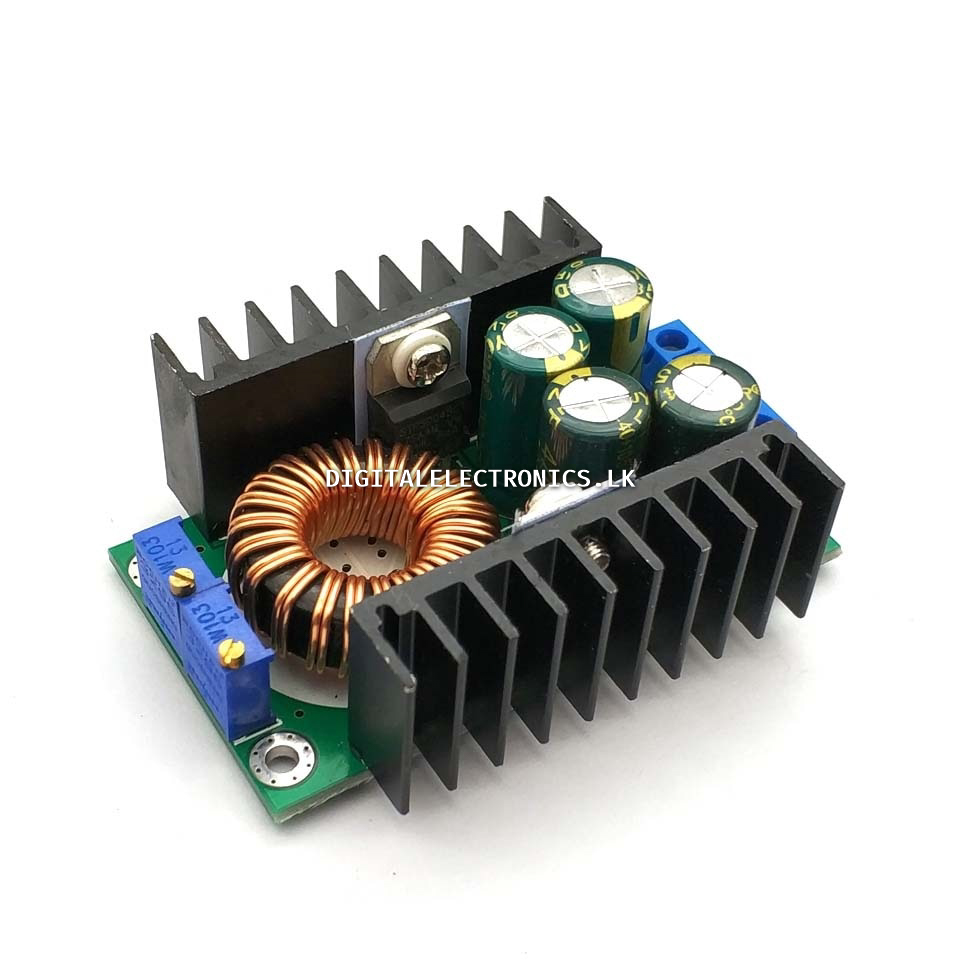

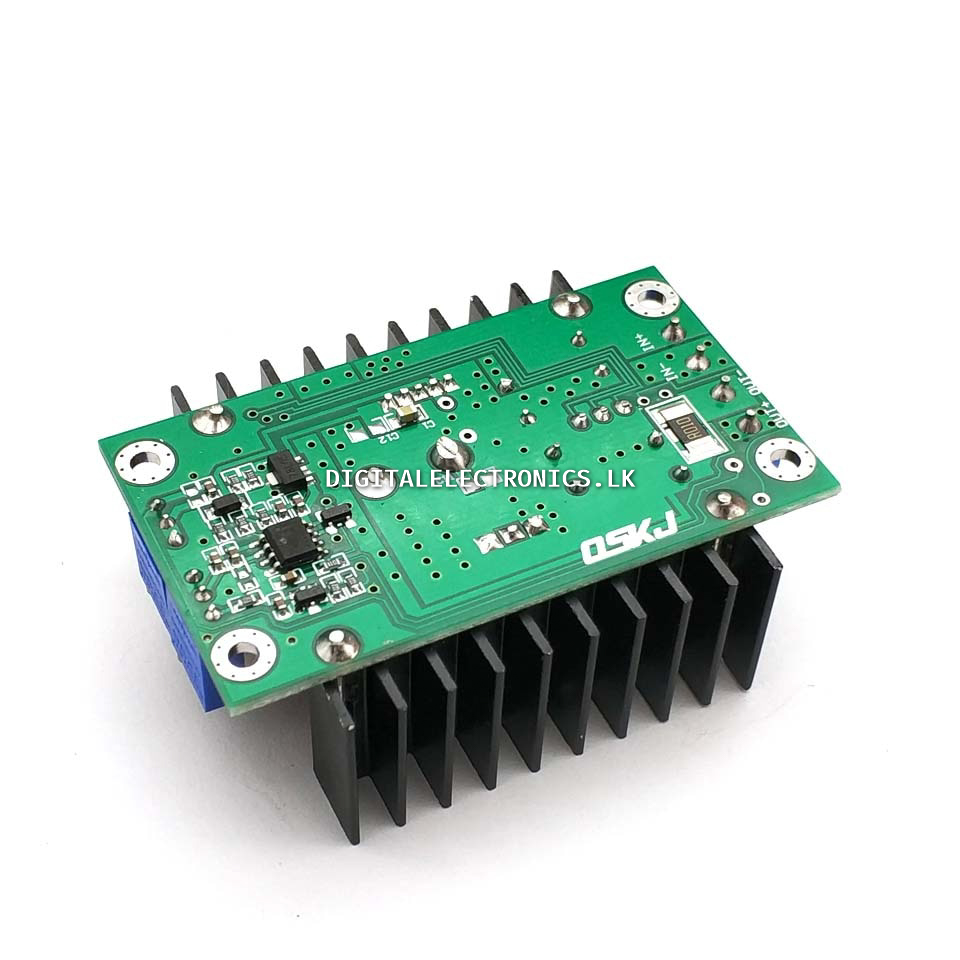

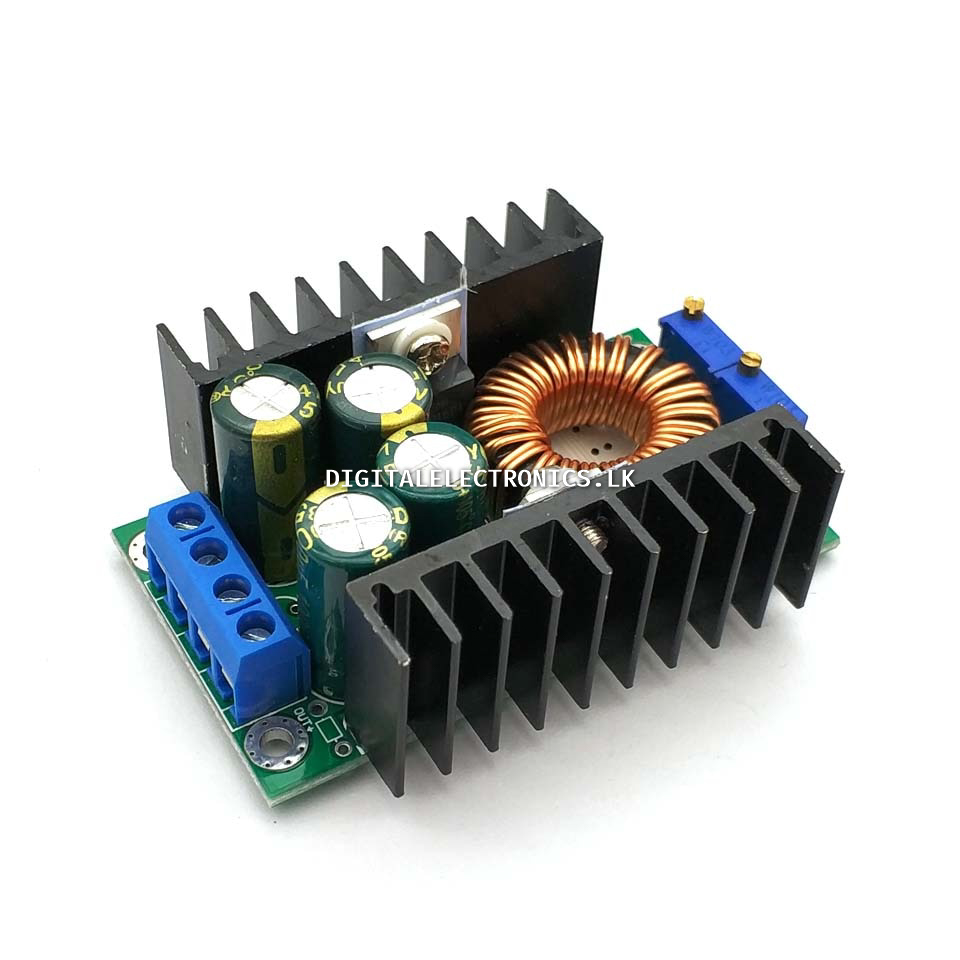

8A DC-DC Buck Converter

8A DC-DC Buck Converter

SKU: AR308 Category:

Specification:

  • Module Properties: Non-isolated step-down constant current, constant voltage module
  • Input Voltage: DC 7 – 32V
  • Output Voltage: DC 1.2 – 28V
  • Output Current: 8A
  • Constant Current Range: 0.2-8A (Adjustable)
  • Output Power: Maximum power is about 200W
  • Conversion Efficiency: Up to about 95%
  • Operating Frequency: 300KHZ
  • Output Ripple: 20M bandwidth
  • Output Short Circuit Protection: Yes, constant current
  • Input Reverse Polarity Protection: None
  • Output Prevent Backflow: None
  • No-Load Current: Typical 20mA (24V switch 12V)
  • Load Regulation: ± 1% (Constant)
  • Voltage Regulation: ± 1%
  • Dynamic response speed: 5% 200uS
  • Output Short Circuit Protection: Yes, Constant current (the current setting constant current value)
  • Input Reverse Connect Protection: NO
  • Output Prevent Reverse Fow: NO
