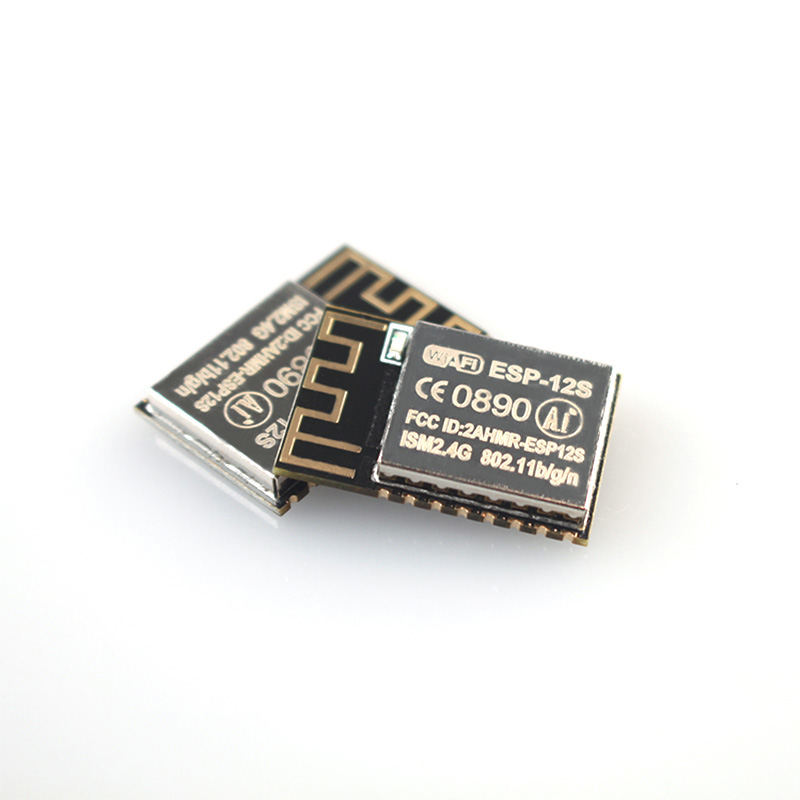

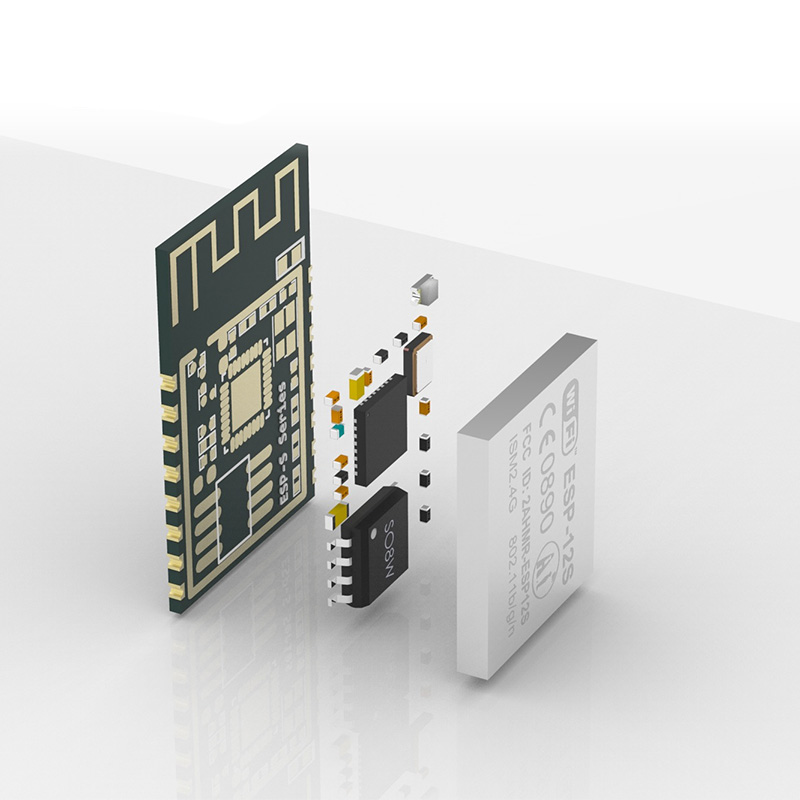

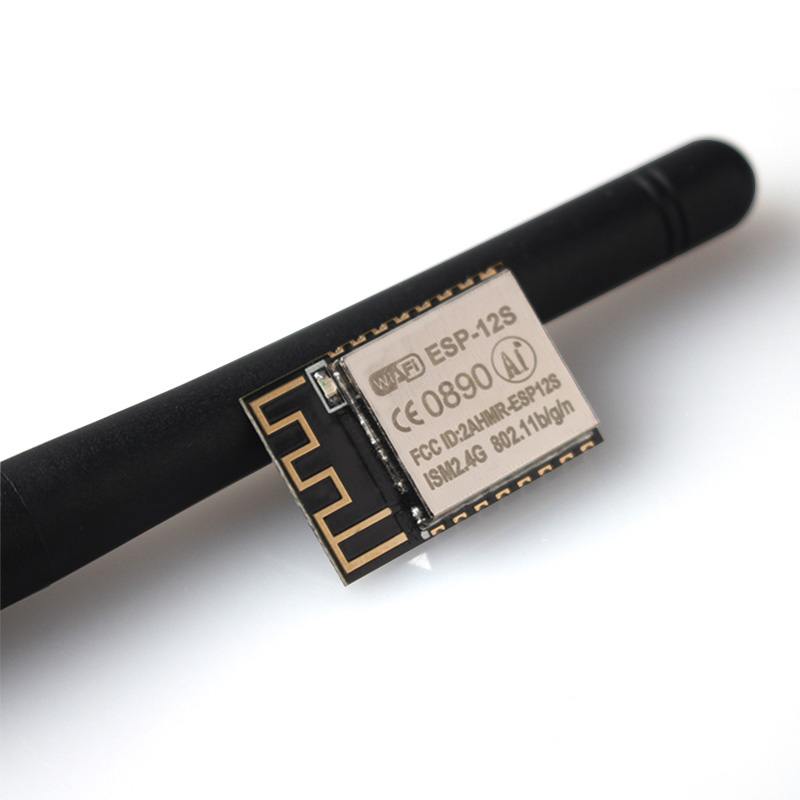

ESP8266 ESP12F AI-Thinker Module

ESP8266 ESP12F AI-Thinker Module

SKU: AR132 Category:
  • The smallest 802.11b/g/n Wi-Fi SOC module
  • Low power 32-bit CPU, can also serve as the application processor
  • Up to 160MHz clock speed
  • Built-in 10-bit high precision ADC
  • SPI Flash: Default 32Mbit

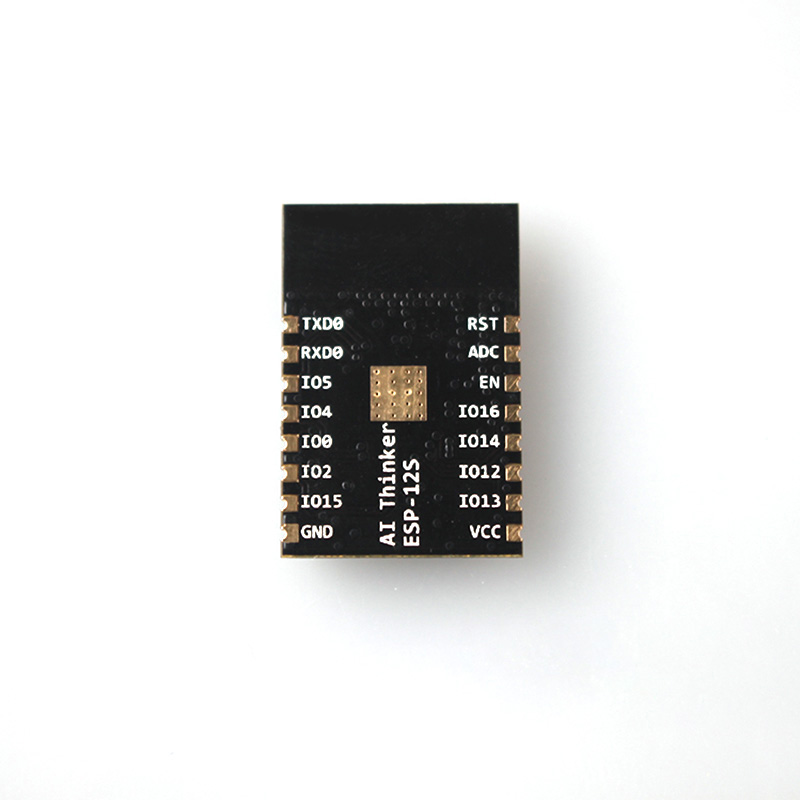

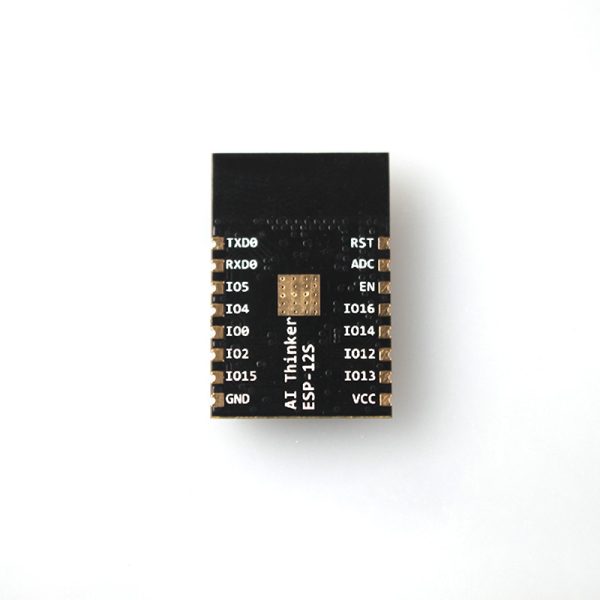

  • Interface: UART/GPIO/ADC/PWM
  • UART Baud Rate: Support 300 ~ 4608000 bps. Default 115200 bps
  • Frequency Range: 2412 ~ 2484MHz
  • Antenna: PCB Antenna
  • Transmit Power:
  • 11b: 16?2 dBm (@11Mbps)
  • 11g: 14?2 dBm (@54Mbps)
  • 11n: 13?2 dBm (@HT20, MCS7)
  • Receiving Sensitivity:
    • CCK, 1 Mbps : -90dBm
    • CCK, 11 Mbps: -85dBm
    • 6 Mbps (1/2 BPSK): -88dBm
    • 54 Mbps (3/4 64-QAM): -70dBm
    • HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
  • Power (Typical Values):
  • Continuous Transmission
    • Average: ~71mA
    • Peak: 500mA
    • Modem Sleep: ~20mA
    • Light Sleep: ~2mA
    • Deep Sleep: ~0.02mA
  • Security: WEP/WPA-PSK/WPA2-PSK
  • Power Supply Voltage:
    • 0V ~ 3.6V
    • Typical 3.3V
    • Current >500mA
  • Operating Temperature: -20 ?C ~ 85 ?C
  • Storage Environment: -40 ?C ~ 85 ?C , < 90%RH
