General Specifications

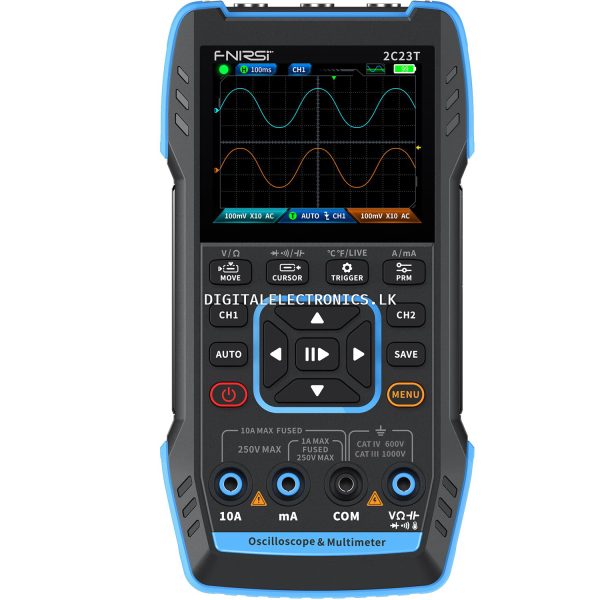

- Brand / Model: FNIRSI 2C23T
- Display: 2.8″ HD color LCD, 320×240 resolution
- Battery: 3000mAh lithium (up to 6 hours standby)
- Charging: USB Type-C (5V/1A)
- Dimensions: 167 × 89 × 35 mm
- Weight: 300g
- Languages: English
Oscilloscope Specifications
- Channels: 2
- Bandwidth: 10 MHz per channel
- Sample Rate: 50 MSa/s
- Storage Depth: 32 kB
- Vertical Sensitivity: 20 mV/div – 10 V/div (X1)
- Time Base Range: 50 ns – 10 s
- Max Input Voltage: ±400 V
- Impedance: 1 MΩ
- Trigger Modes: Auto / Normal / Single
- Trigger Types: Rising / Falling edge
- Coupling: AC/DC
- Display Modes: YT / Scroll
- Waveform Capture: Supports screenshot and export via USB-C
Multimeter Specifications
- DC Voltage: 9.999V / 99.99V / 999.9V (±0.5% + 3)
- AC Voltage: 9.999V / 99.99V / 750.0V (±1% + 3)
- DC Current: 9999μA / 99.99mA / 999.9mA / 9.999A (±1.2% + 3)
- AC Current: 9999μA / 99.99mA / 999.9mA / 9.999A (±1.5% + 3)
- Resistance: Up to 99.99 MΩ (±0.5% to ±1.5% + 3)
- Capacitance: Up to 99.99 mF (±2.0% to ±5.0% + 20)
- Temperature: -55°C to 1300°C (±2.5% + 5)
- Additional Features: Diode test, continuity buzzer, live line detection
Signal Generator Specifications
- Channels: 1
- Frequency Range: 1 Hz – 2 MHz
- Amplitude: 0.1 – 3.3 V
- Duty Cycle: 0–100%
- Waveforms: Sine, square, triangle, full wave, half wave, noise, DC output
