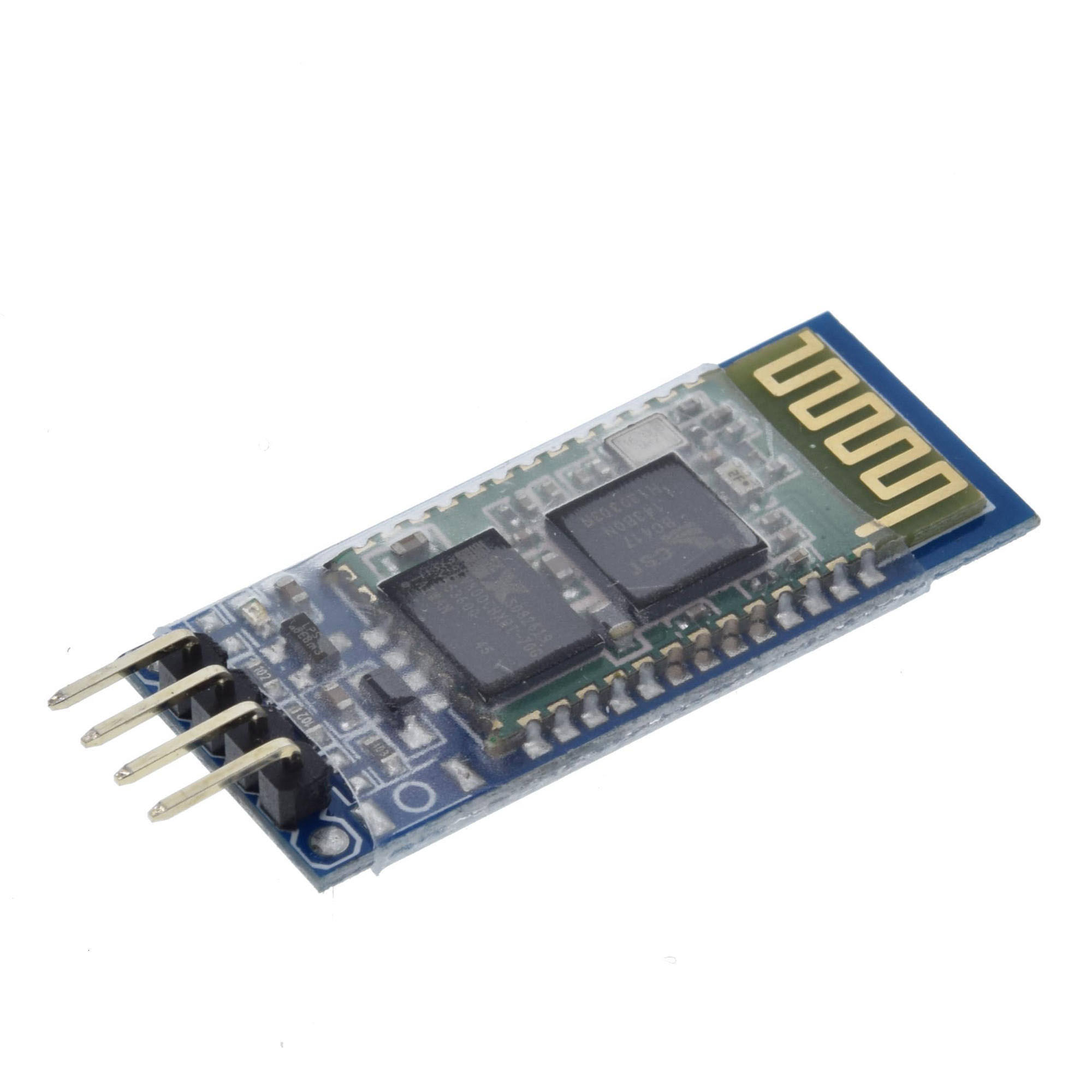

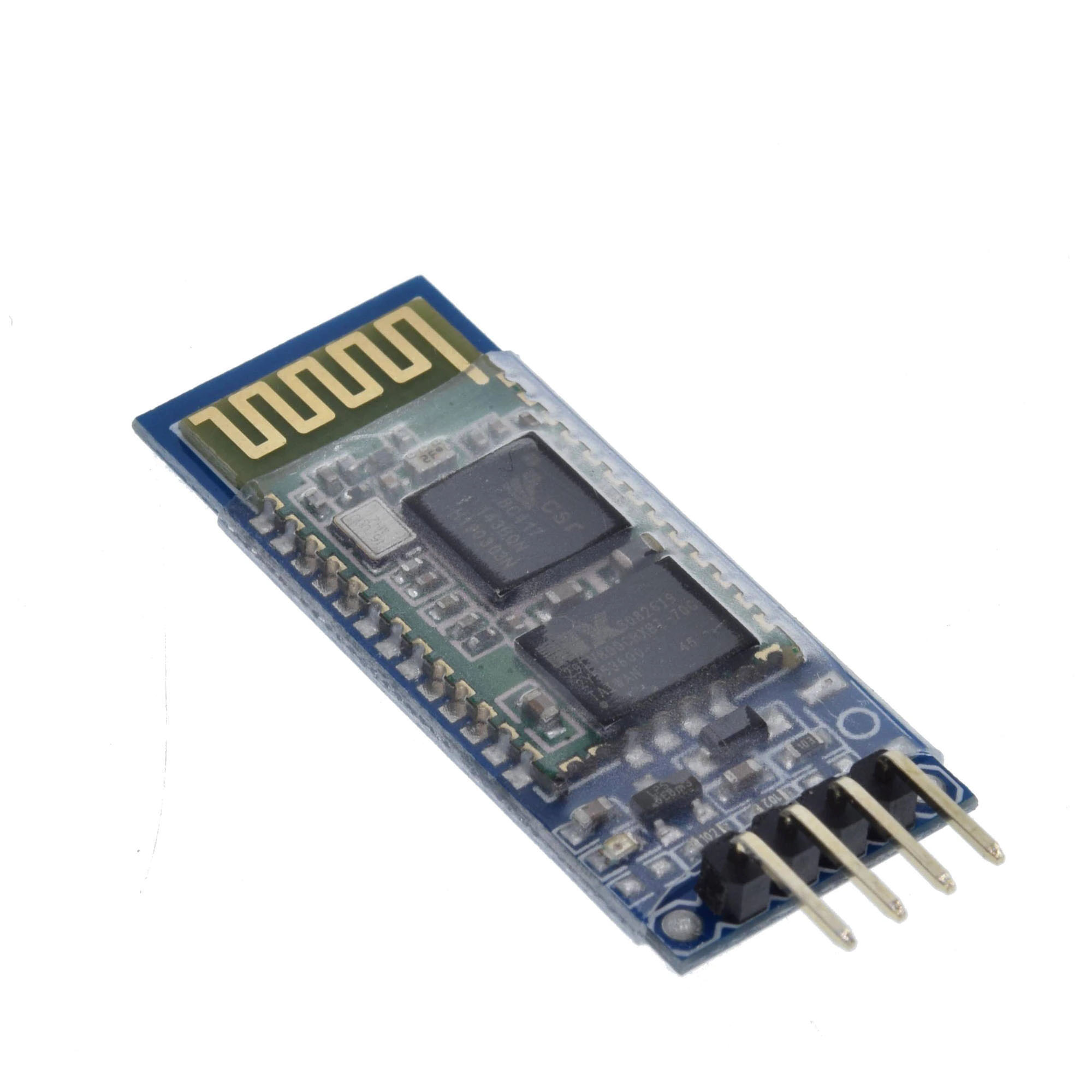

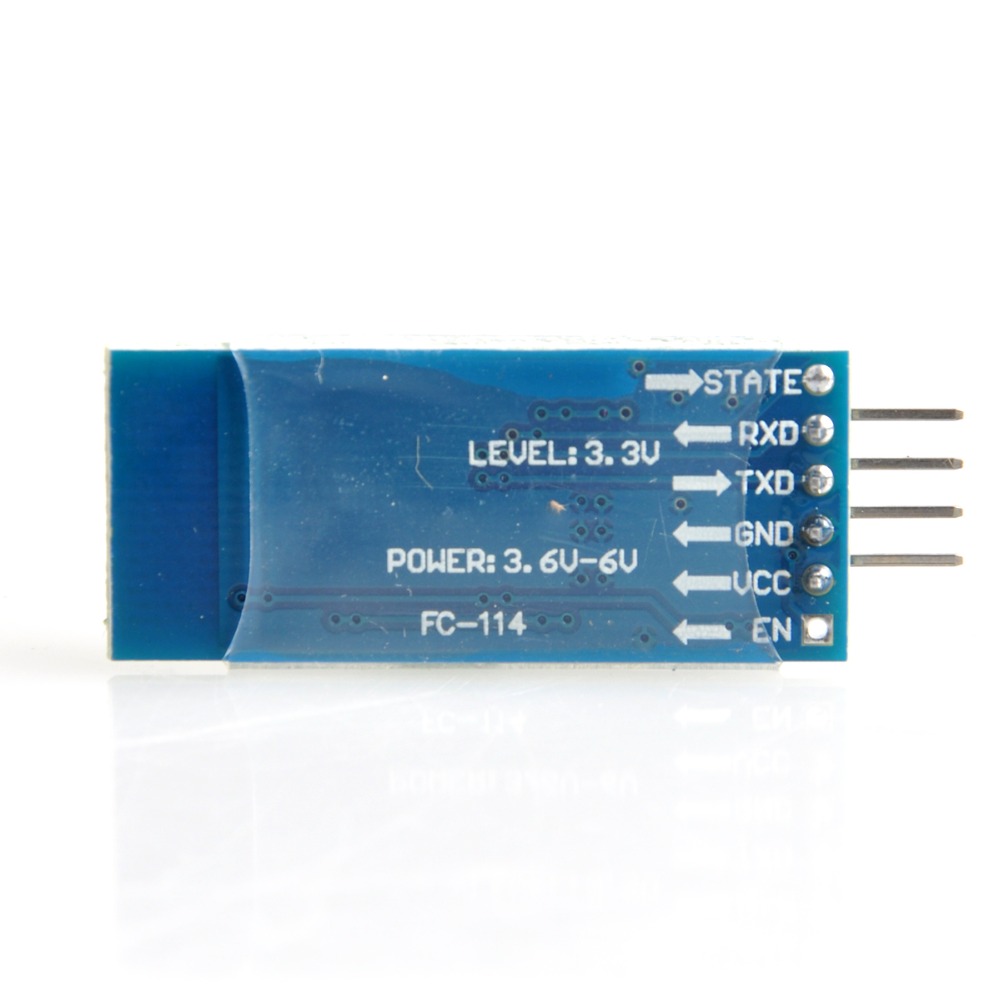

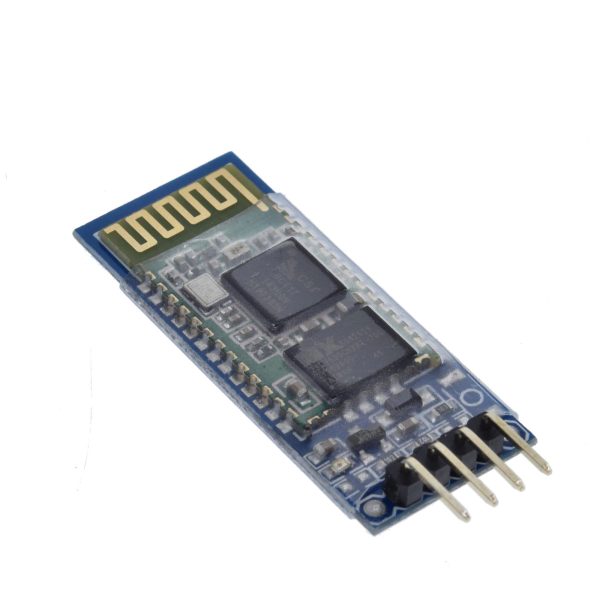

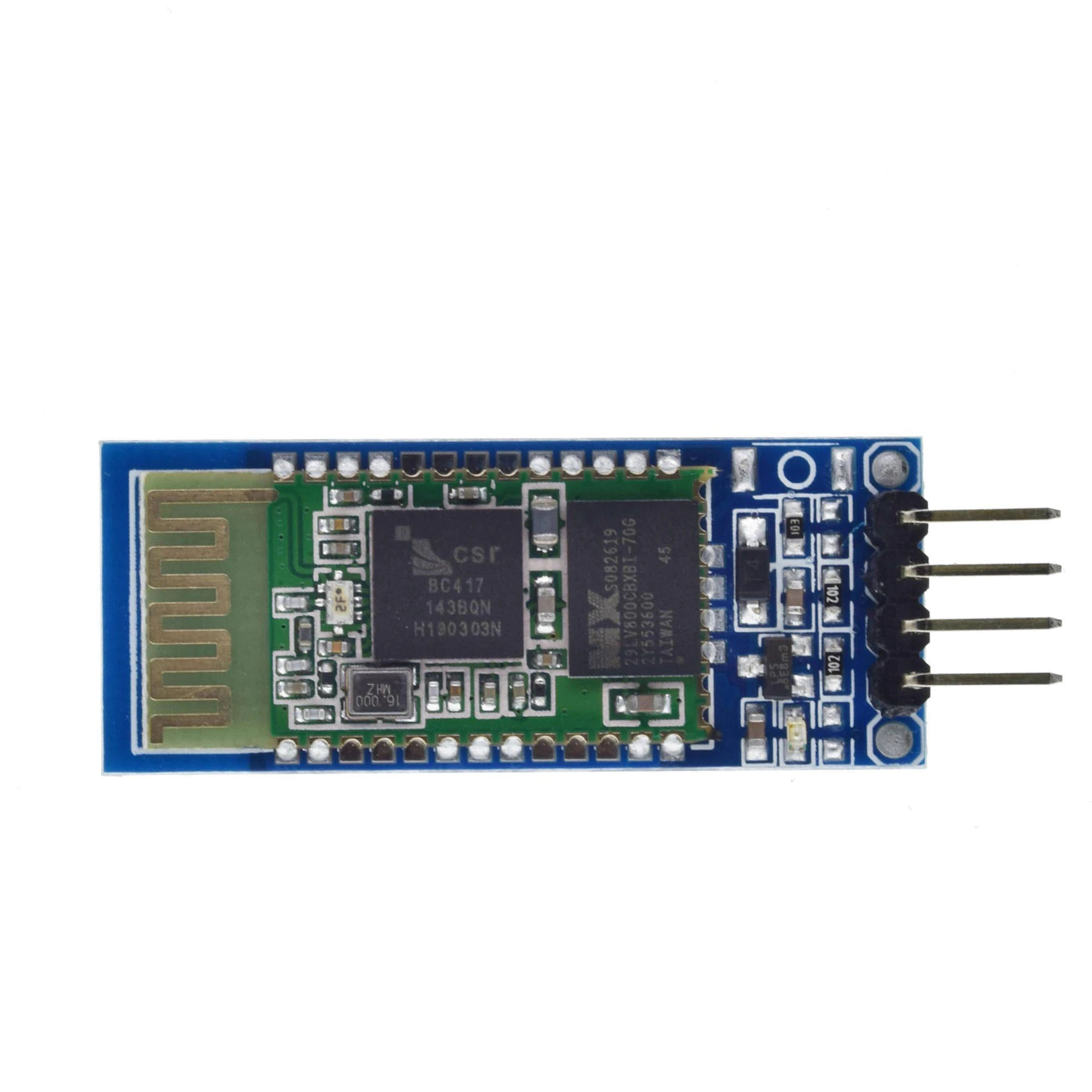

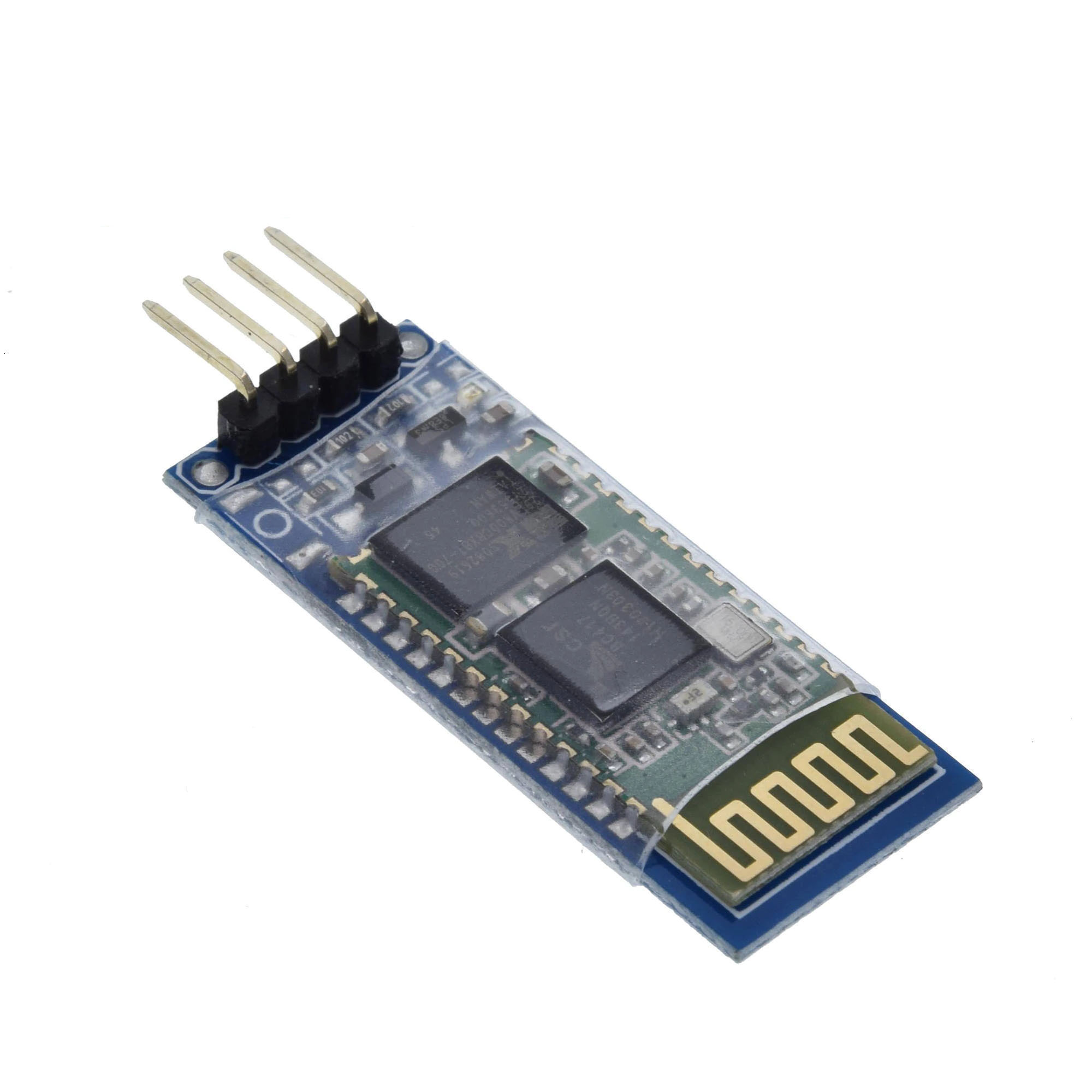

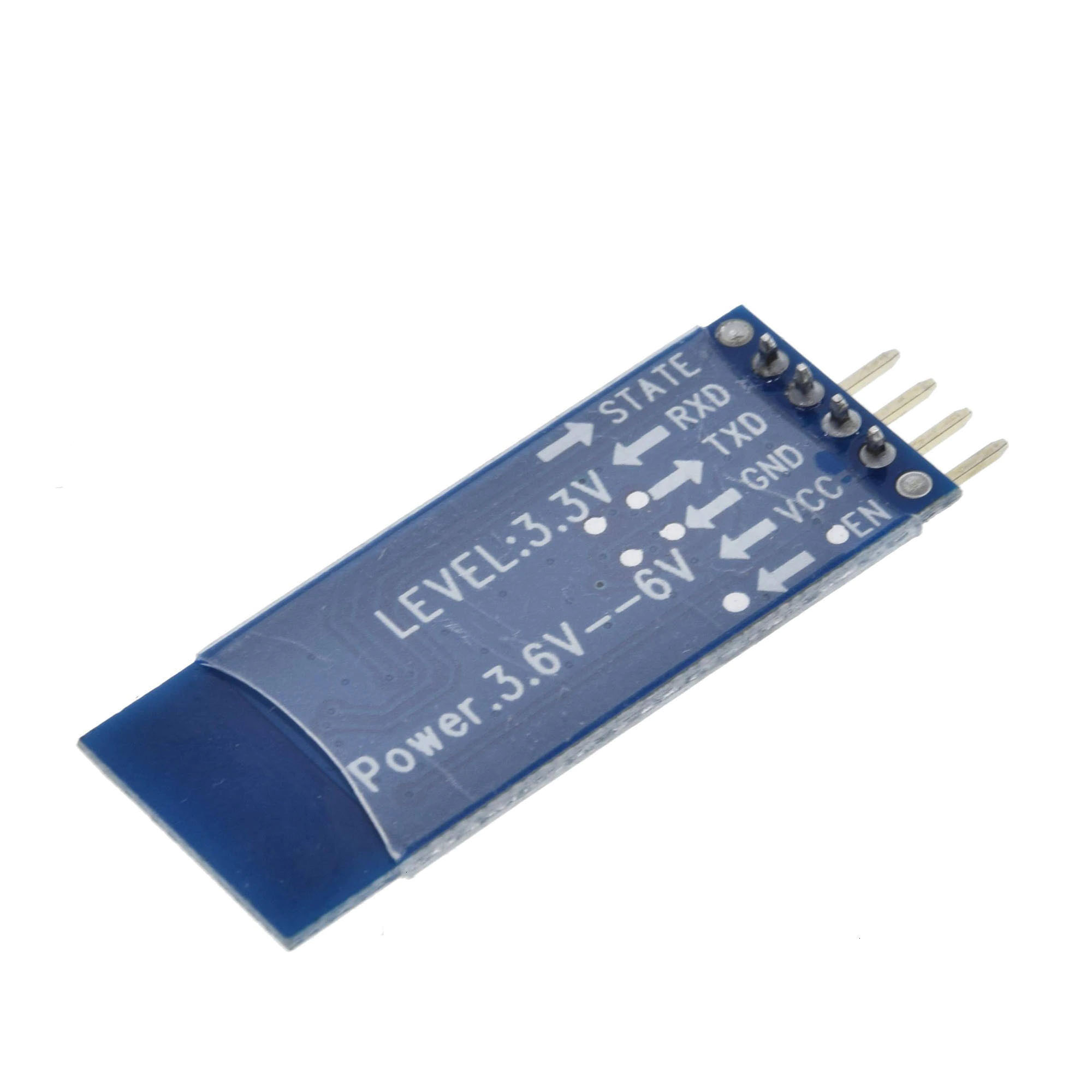

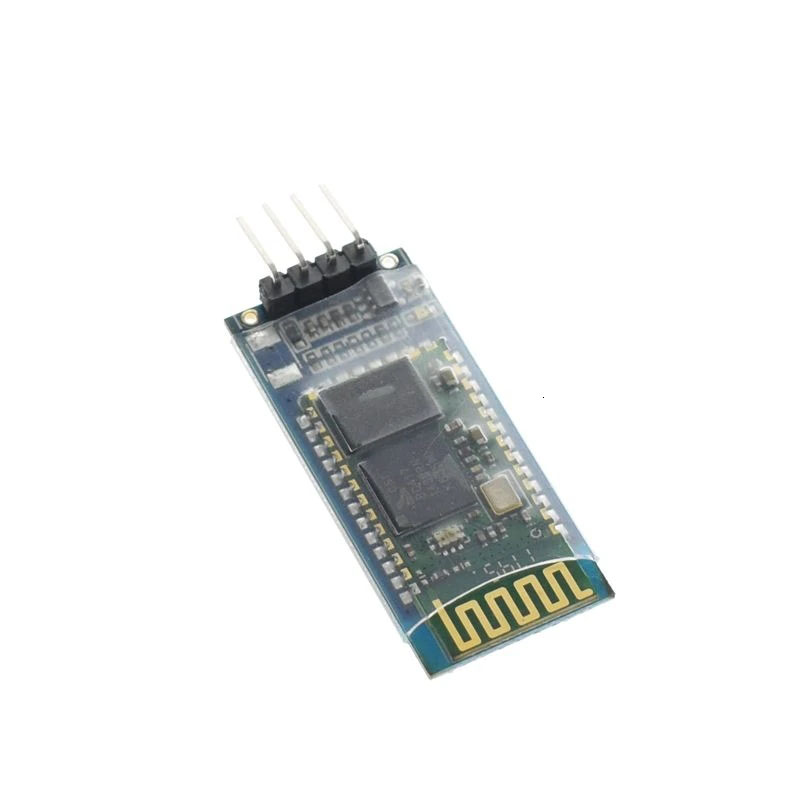

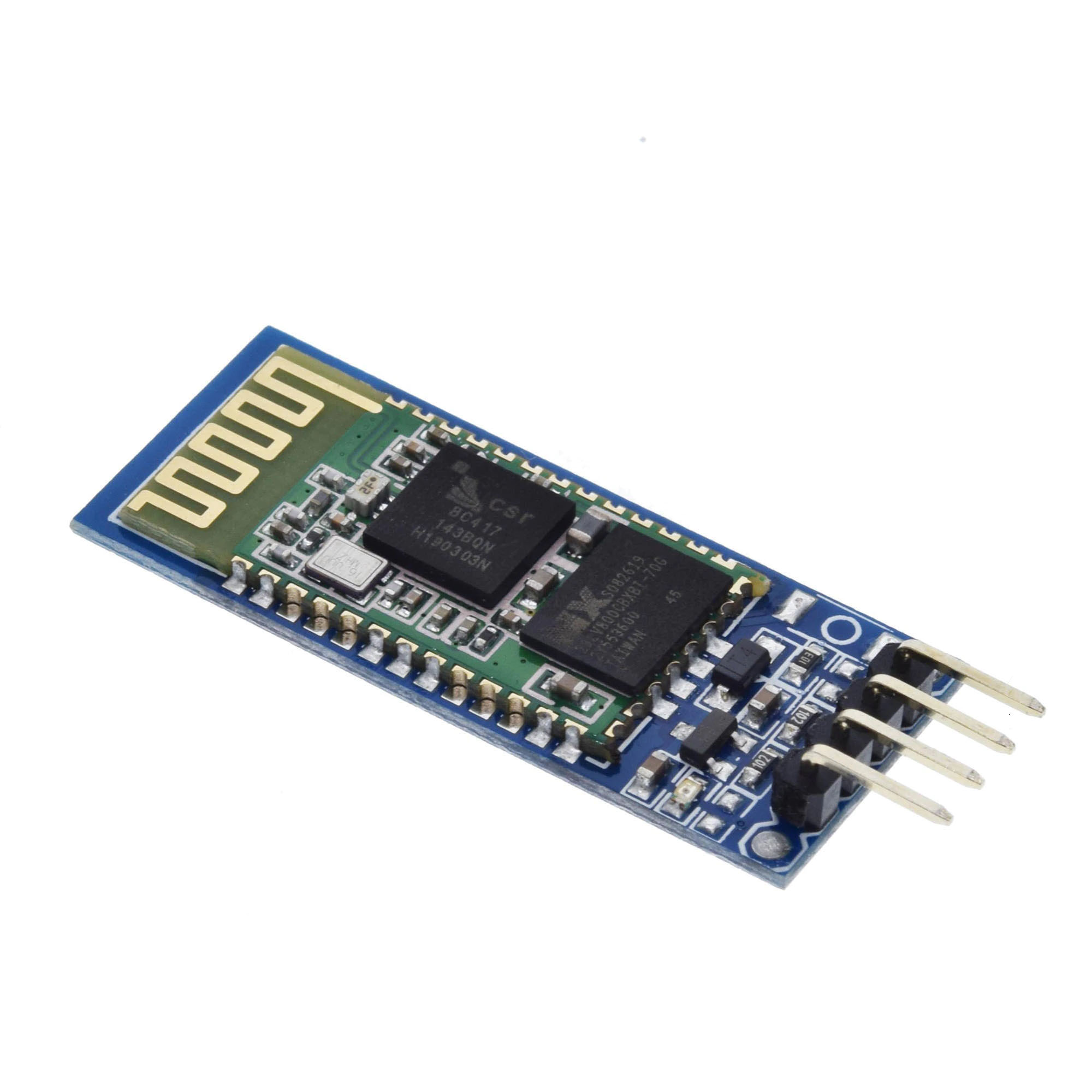

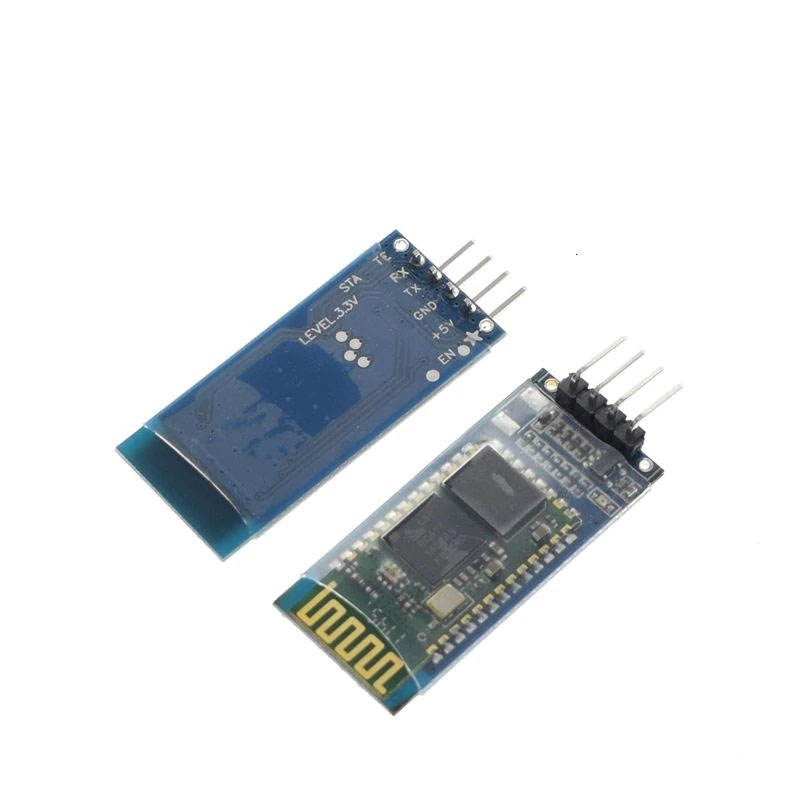

HC-06 Bluetooth RF Transceiver Module

HC-06 Bluetooth RF Transceiver Module

SKU: AR008 Categories: ,
  • Running in slave role: Pair with BT dongle and the master module
  • Coupled Mode: Two modules will establish communication automatically when powered.
  • PC hosted mode: Pair the module with Bluetooth dongle directly as virtual serial.
  • Bluetooth protocol: Bluetooth Specification v2.0+EDR
  • Frequency: 2.4GHz ISM band
  • Modulation: GFSK(Gaussian Frequency Shift Keying)
  • Emission power: 4dBm, Class 2
  • Sensitivity: -84dBm at 0.1% BER
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
  • Security: Authentication and encryption
  • Profiles: Bluetooth serial port
  • Voltage: 3.3 (2.7V4.2V)
  • Current: Paring – 35mA, Connected – 8mA
  • User defined Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800,921600 ,1382400.
