- Detects a flame or a light source of a wavelength in the range of
- 760nm-1100 nm
- Detection distance: 20cm (4.8V) ~ 100cm (1V)
- Detection angle about 60 degrees, it is sensitive to the flame spectrum.
- Comparator chip LM393 makes module readings stable.
- Adjustable detection range.
- Operating voltage 3.3V-5V
- Digital and Analog Output
- DO digital switch outputs (0 and 1)
- AO analogue voltage output
- Power indicator and digital switch output indicator

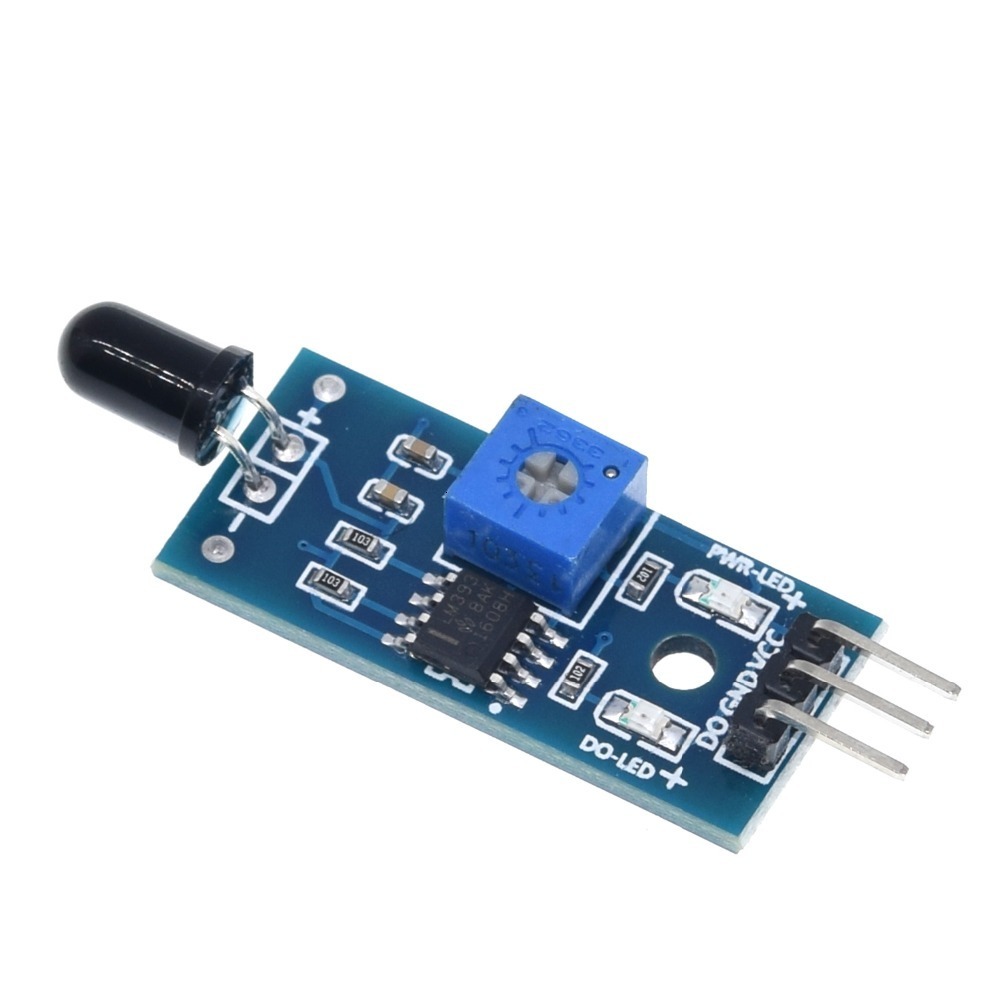

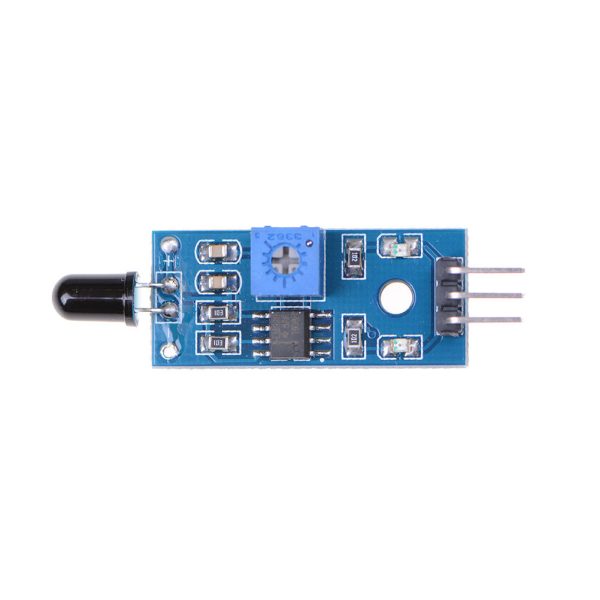

IR Infrared Flame Detection Sensor Module
