Description
Overview

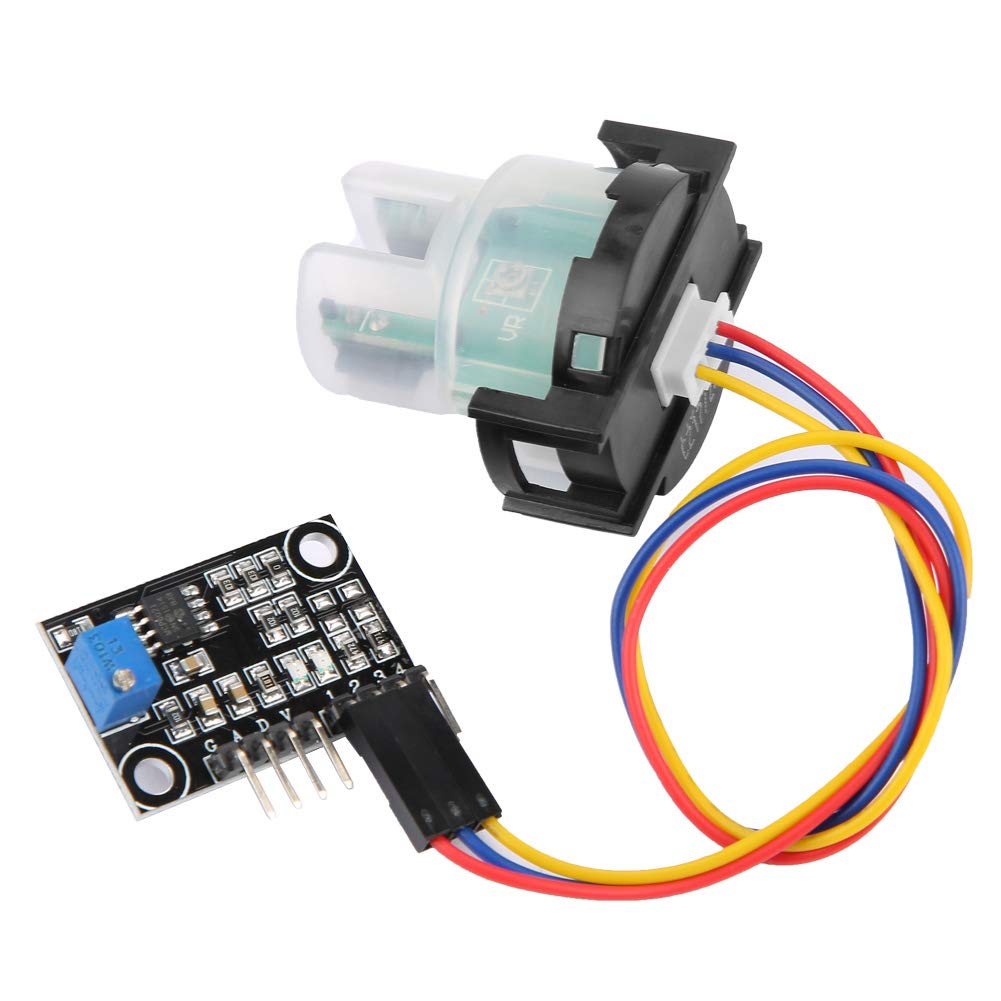

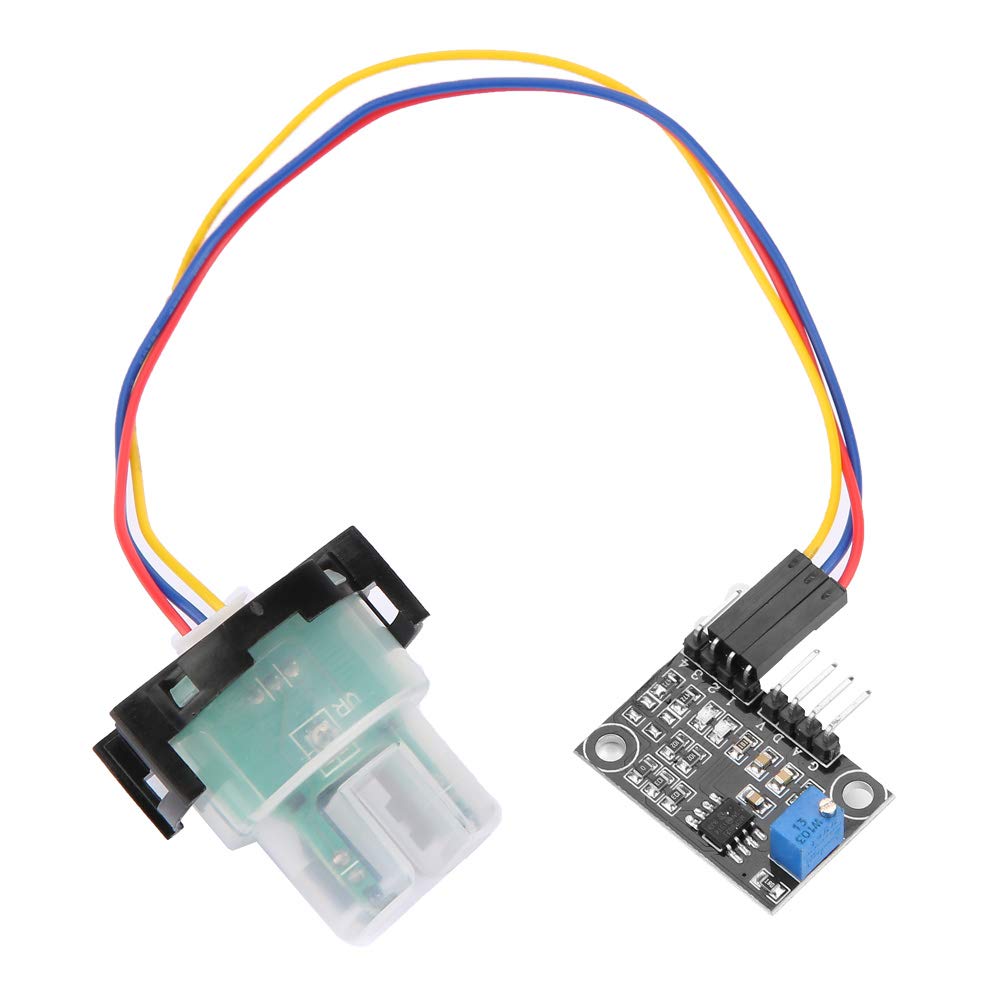

- Compact sensor module for measuring water turbidity.
- Provides both analog voltage proportional to NTU and digital threshold output.
Features
- Operating voltage 5 V DC.
- Current consumption under 30 mA.
- Measuring range 0 – 1000 NTU.
- Response time < 500 ms.
- Operating temperature 0 °C – 80 °C.
- Adjustable digital threshold via onboard potentiometer.
- Three‑pin connector (VCC, GND, Signal).
Specifications
| Supply Voltage | 5 V DC |
| Current Consumption | ≤ 30 mA |
| Measuring Range | 0 – 1000 NTU |
| Response Time | < 500 ms |
| Operating Temperature | 0 °C – 80 °C |
| Analog Output Voltage | 0 V – 4.5 V |

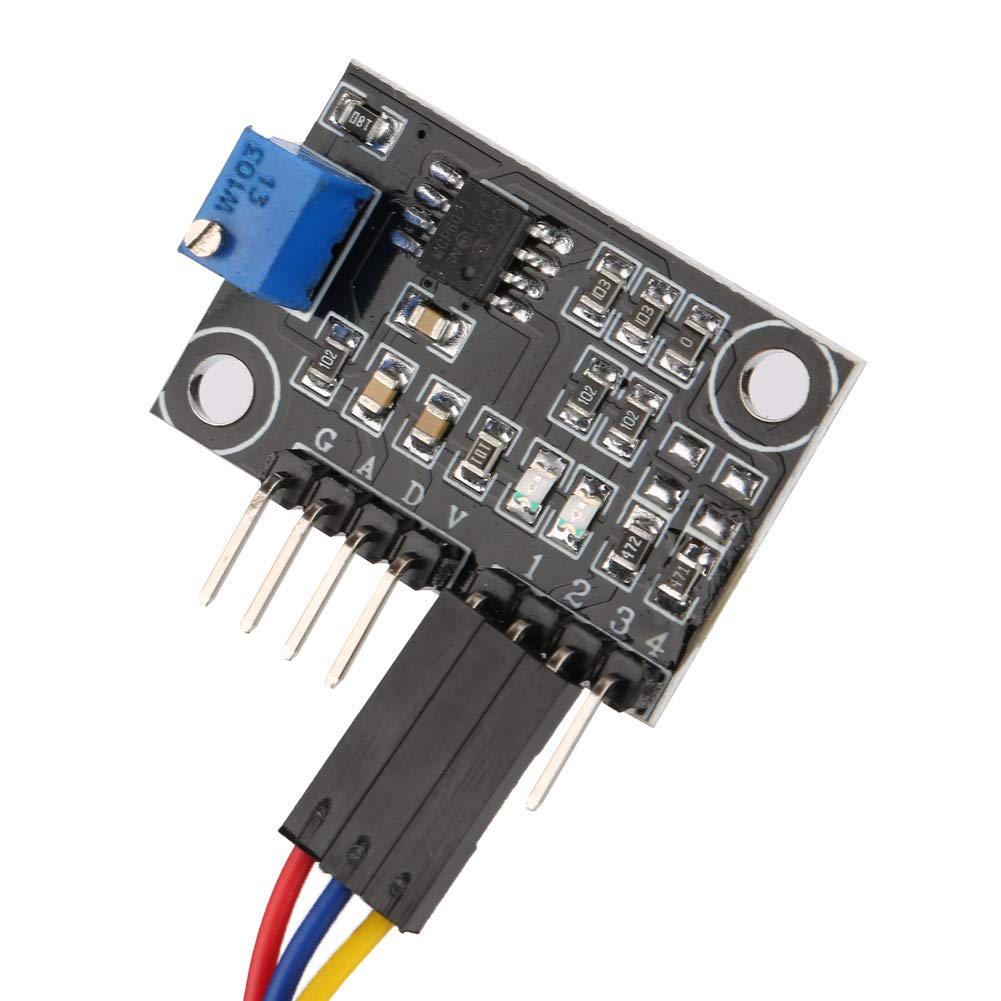

Pinout / Connection Details
| VCC | 5 V power input |
| GND | Ground |
| A0 | Analog output (0‑4.5 V proportional to NTU) |
| D0 | Digital output (high/low based on threshold) |
