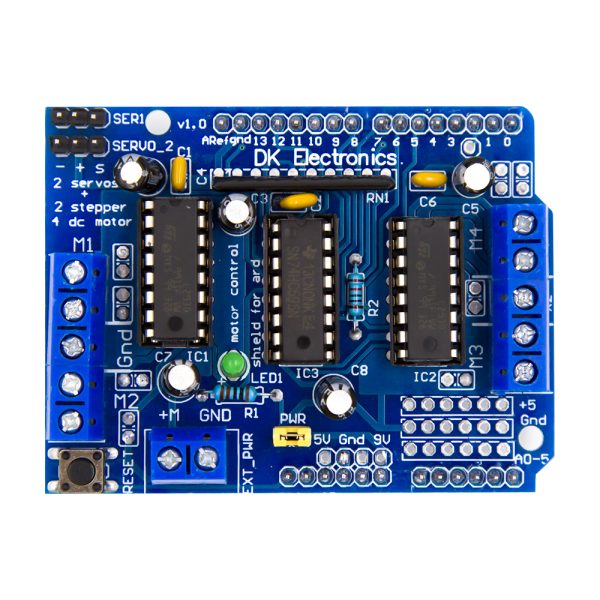

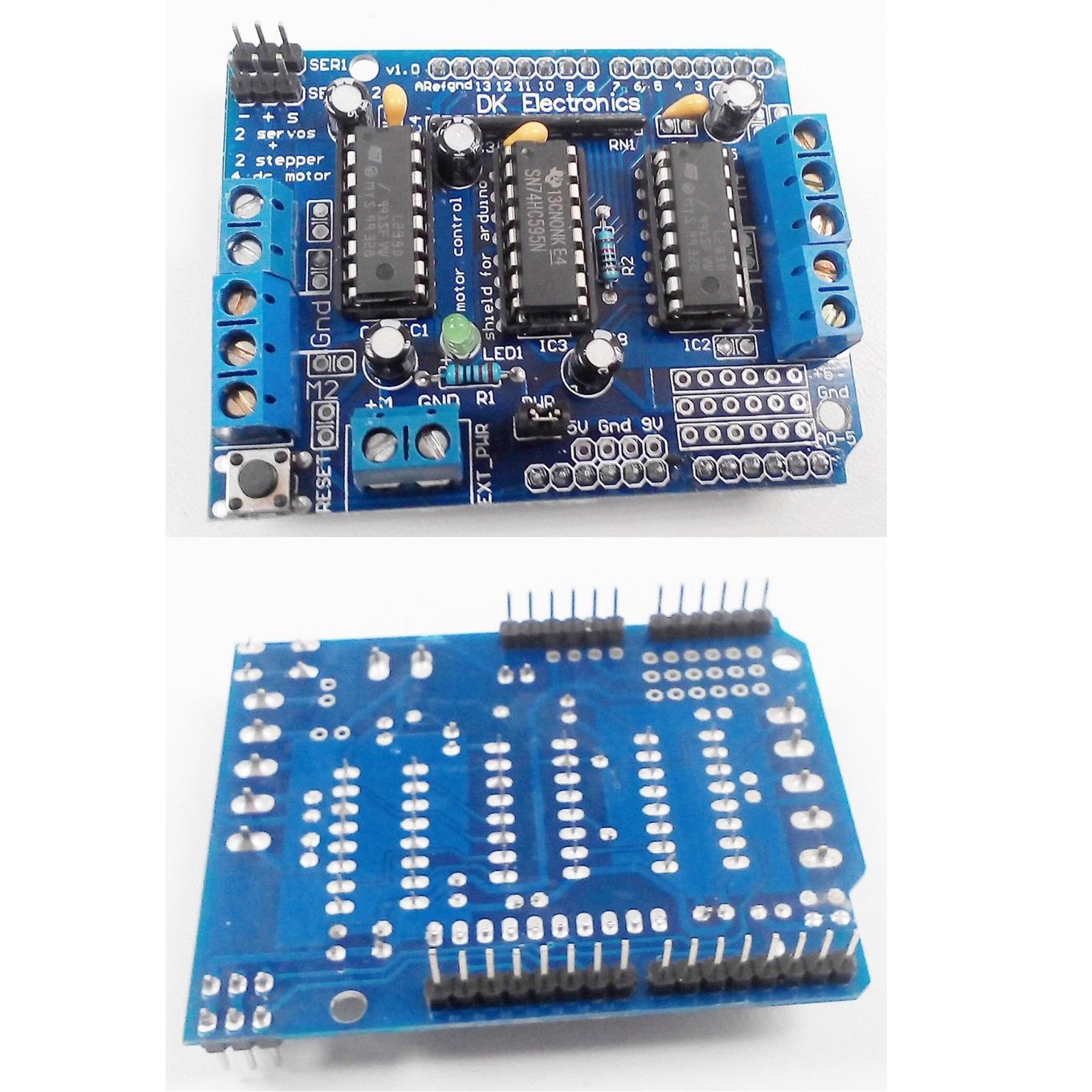

L293D Motor Control Shield

L293D Motor Control Shield

SKU: AR045 Category:
  • 2 connections for 5V ‘hobby’ servos?connected to the Arduino’s high-resolution dedicated timer – no jitter!
  • Up to 4 bi-directional DC?motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors?(unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, 4.5V to 25V
  • Pull-down resistors keep motors disabled during power-up
  • Big terminal block connectors to easily hook up wires (10-22AWG) and power
  • Arduino reset button brought up top
  • 2-pin terminal block to connect external power, for separate logic/motor supplies
