Description
Specification:

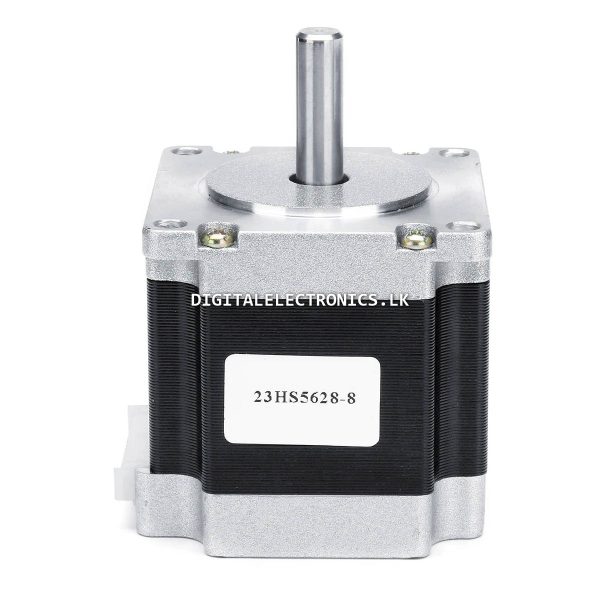

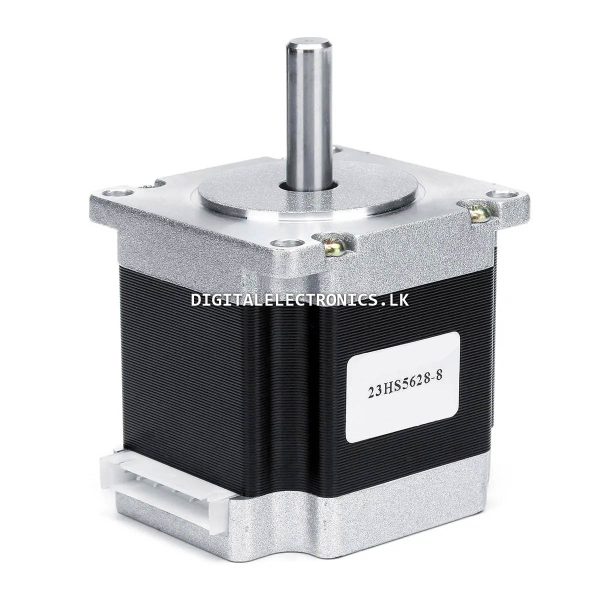

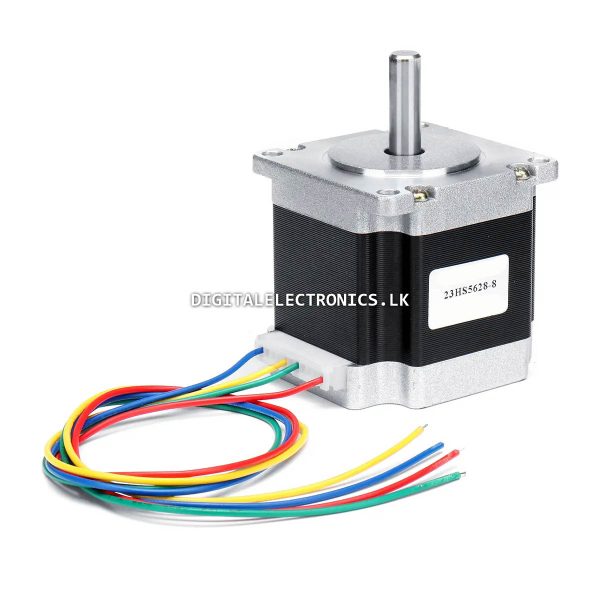

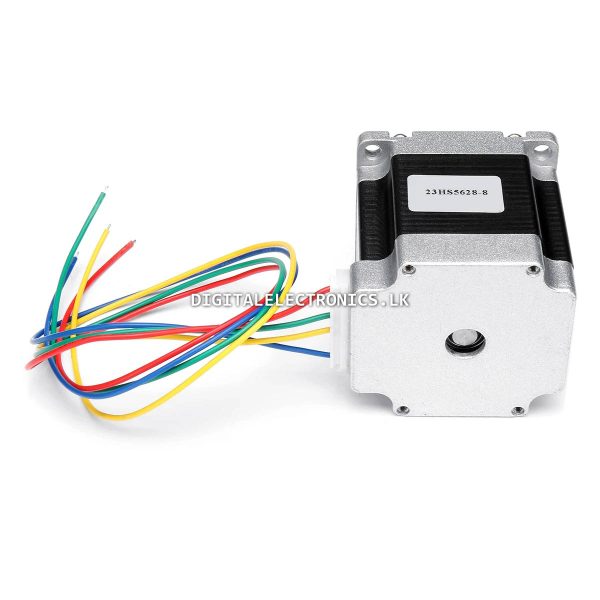

| Model | 23HS5628 |
| Phase | 2 |
| Step Angle | 1.8? |
| Motor Frame Size | 57 x 56mm |

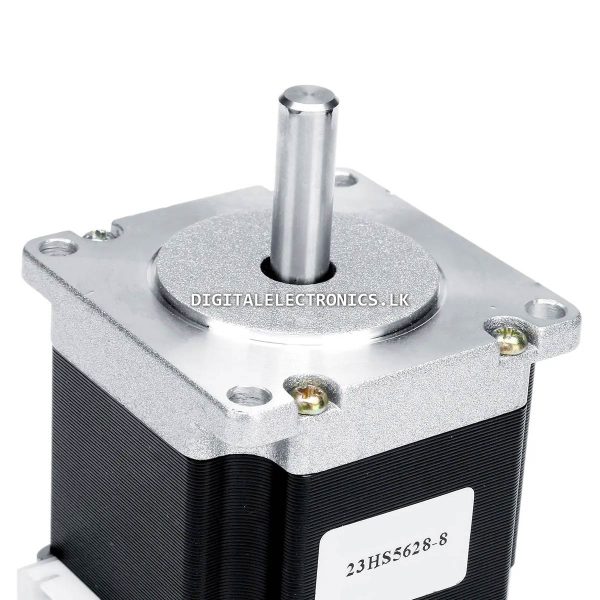

| Shaft | “D” shaft? 22 x ?6.35 |
| Outlet Way | “4” plug line |

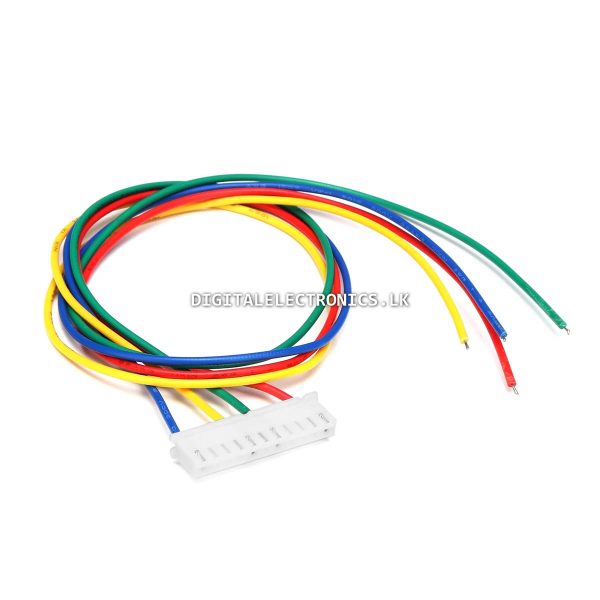

| Motor Leads | 30cm Wire |
| Adapter Drive | Two-phase step drive |
Electrical Specifications:
| Model No. | Step Angle | Motor Length | Rated Voltage |
Rated Current |
Resistance /Phase |
Inductance /Phase |
Holding Torque | Inertia Of Rotor |
? Lead |
| ( ?) | (L)mm | (V) | (A) | (?) | (mH) | (N.cm) | (G.?cm?) | (No.) | |
| 23HS5628 | 1.8 | 56 | 2.5 | 2.8 | 0.9 | 2.5 | 126 | 300 | 4 |
