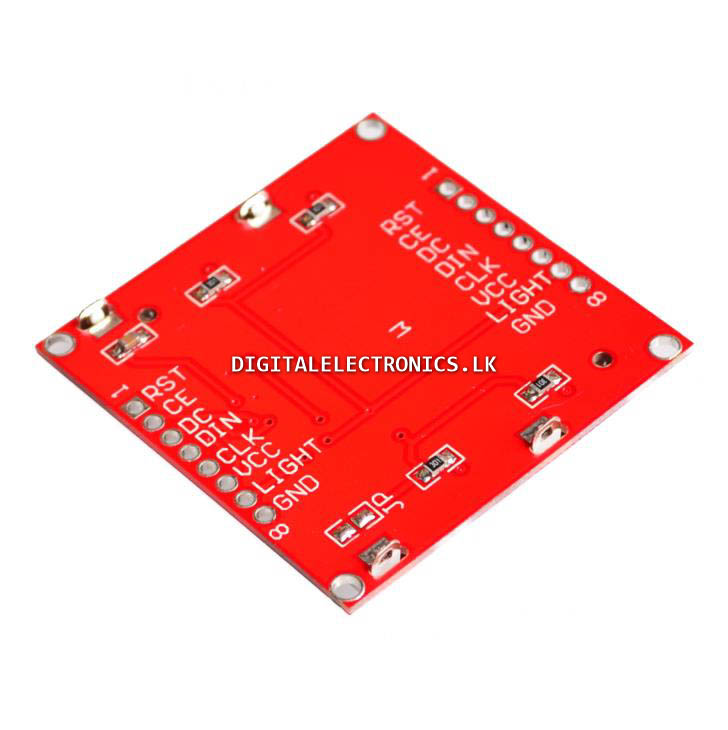

Pinout:
- RST – Reset
- CE – Chip selection
- DC – Data / instruction selection
- DIN – Serial data line
- CLK – Serial clock line
- VCC – Power input (3.3v and 5v can be, experimentally verified, no problem)
- BL – Backlight control terminal
- GND – Ground
Specifications:
- Input Voltage: 3.3VDC
- Resolution: ?84 X 84 pixels
- The interface is a serial SPI interface.
