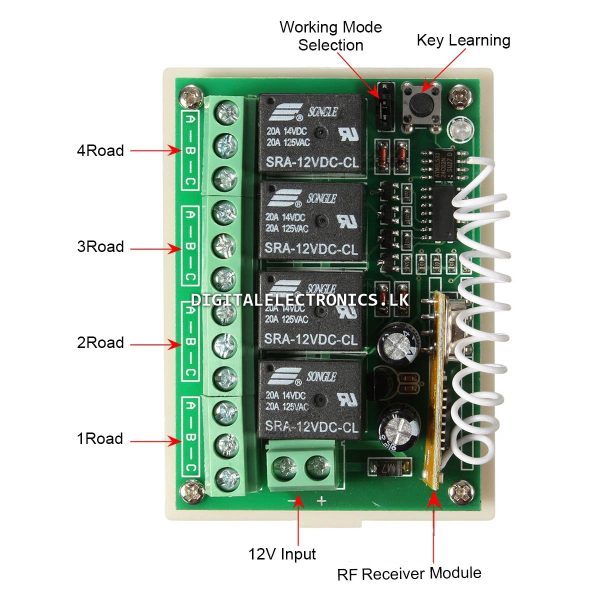

Output Working Way:
- Self-lock: connect the JP1 with the cutting out cap.
- Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
- Inter-lock: Connect the Jp2 with the Cutting out cap,
- Jog: press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one-button remote control).
- Self -lock: press one button for one time is ON, press the same button again is OFF (need one channel switch and one-button remote control).
- Inter-lock: press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control).
- Operating Voltage: 12VDC
- Operating Current: 7mA
- Frequency: 433MHz
- Quiescent Condition: 6mA
- Receiver Sensitivity : more than -105dBm
- Output: 14VDC 20A or 125VAC 20A
