Description
Specifications
- Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- 8GB LPDDR4-3200 SDRAM
- 4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE

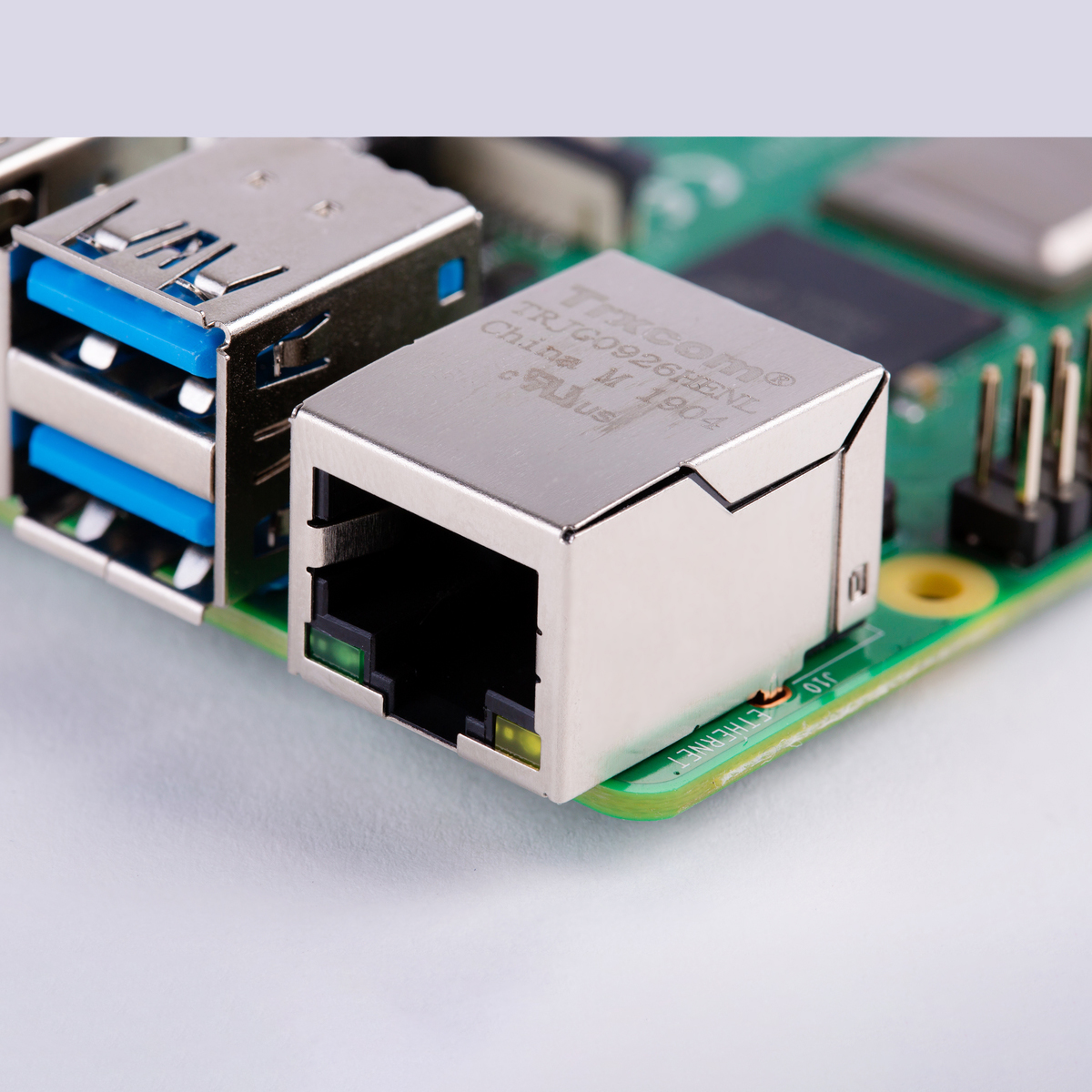

- Gigabit Ethernet

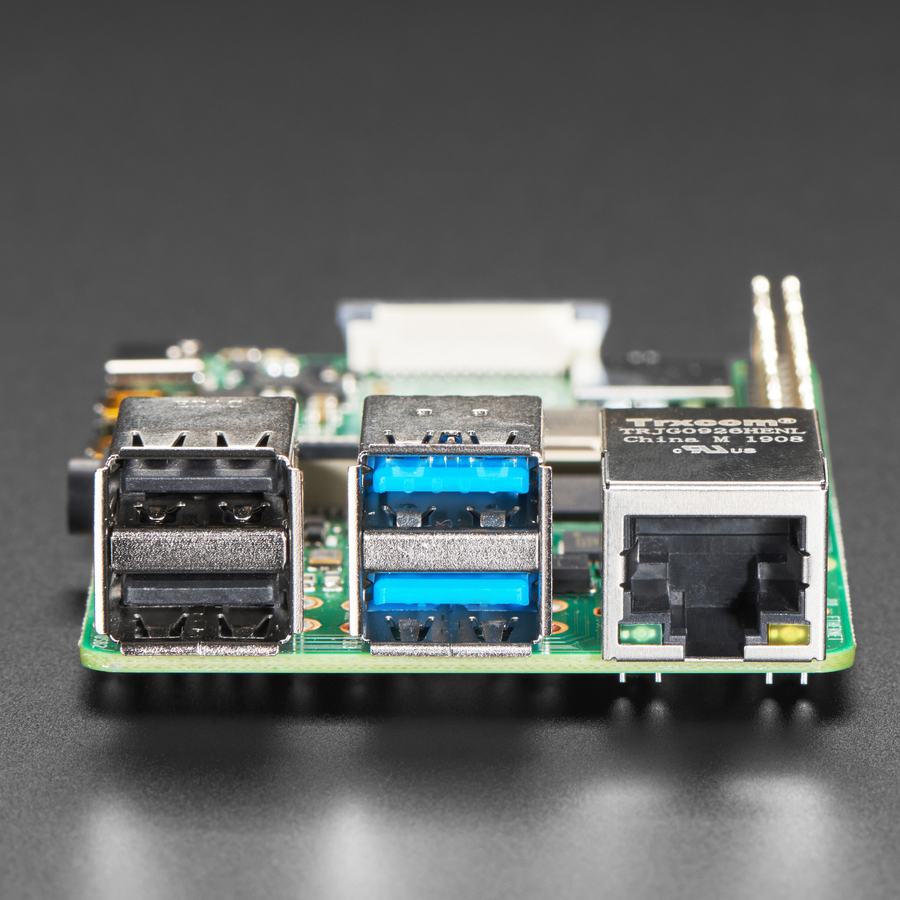

- 2 USB 3.0 ports; 2 USB 2.0 ports.

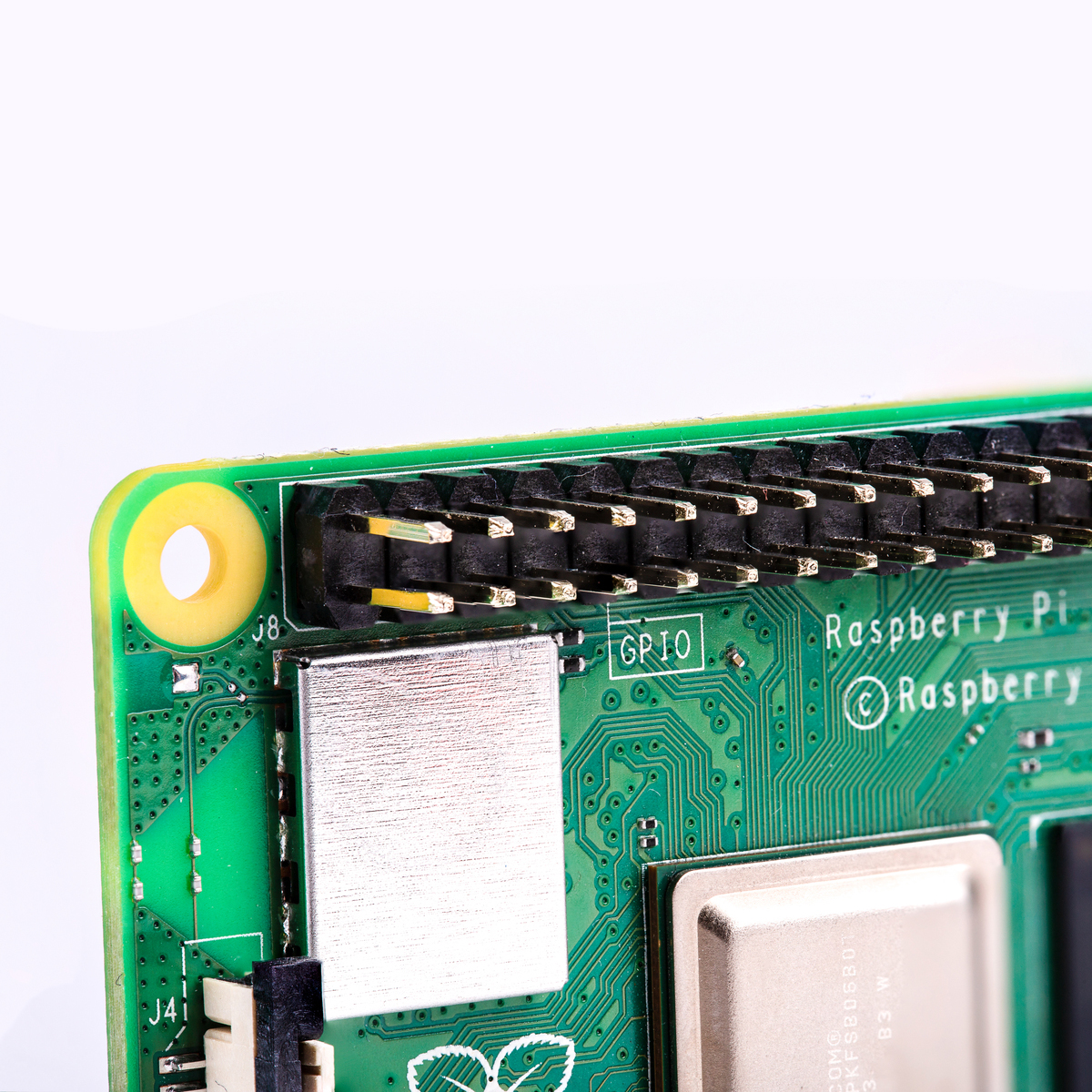

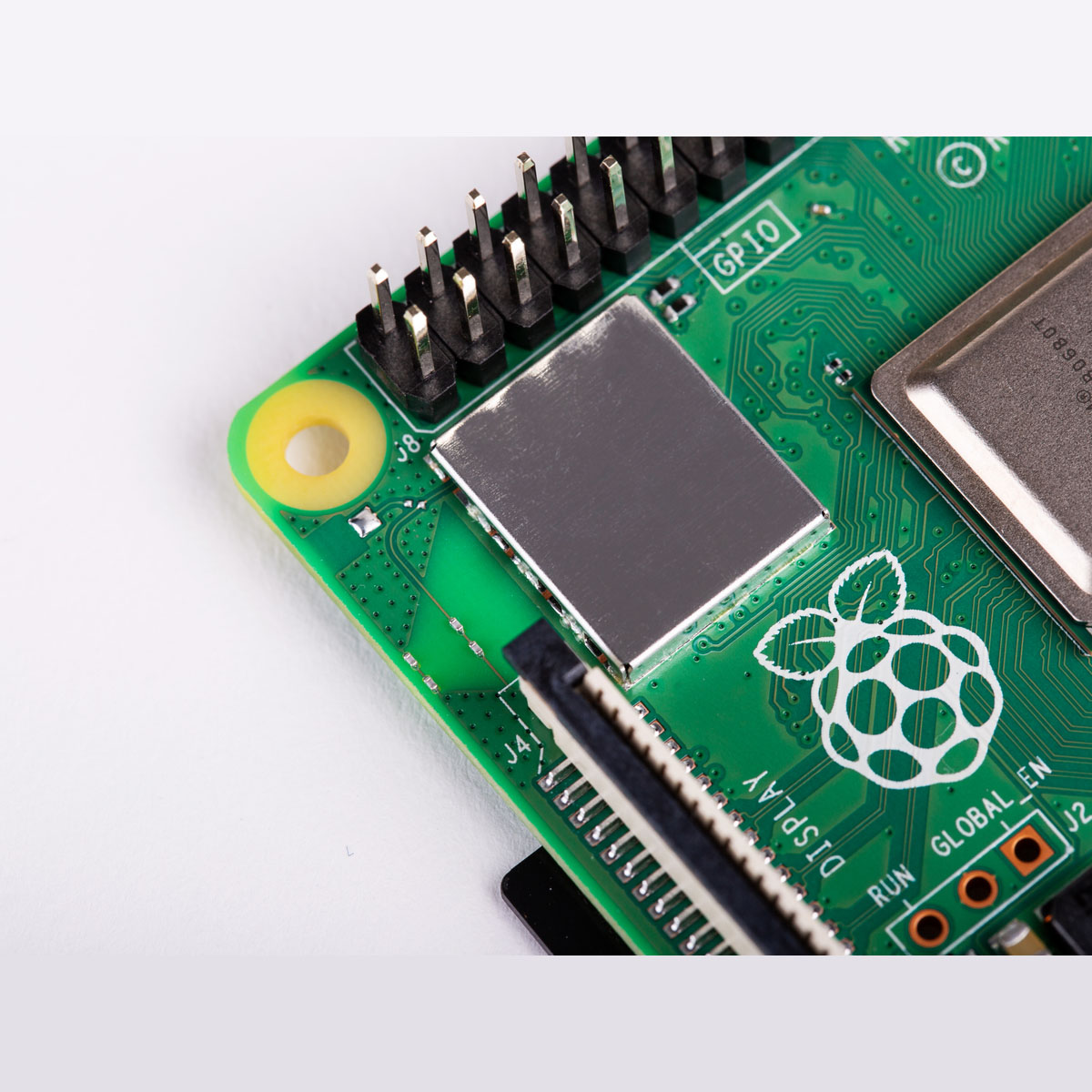

- Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
- 2 ? micro-HDMI ports (up to 4kp60 supported)

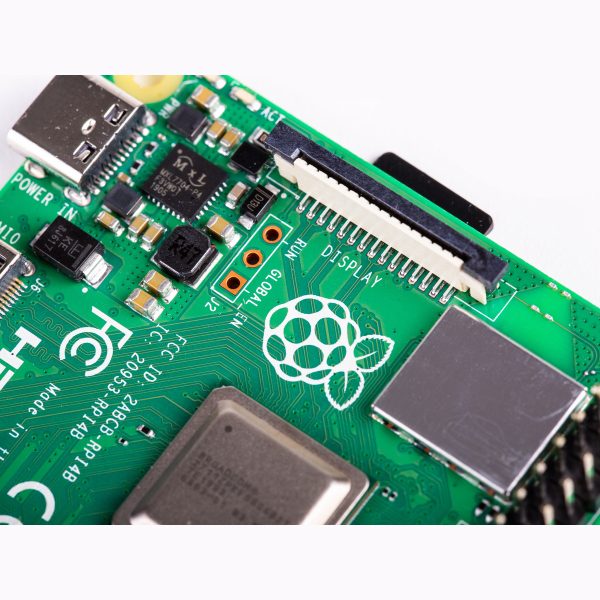

- 2-lane MIPI DSI display port
- 2-lane MIPI CSI camera port
- 4-pole stereo audio and composite video port
- 265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
- OpenGL ES 3.0 graphics

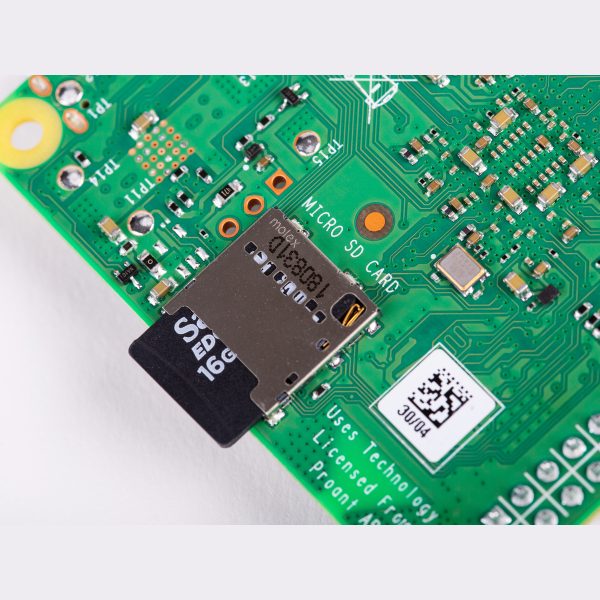

- Micro-SD card slot for loading operating system and data storage

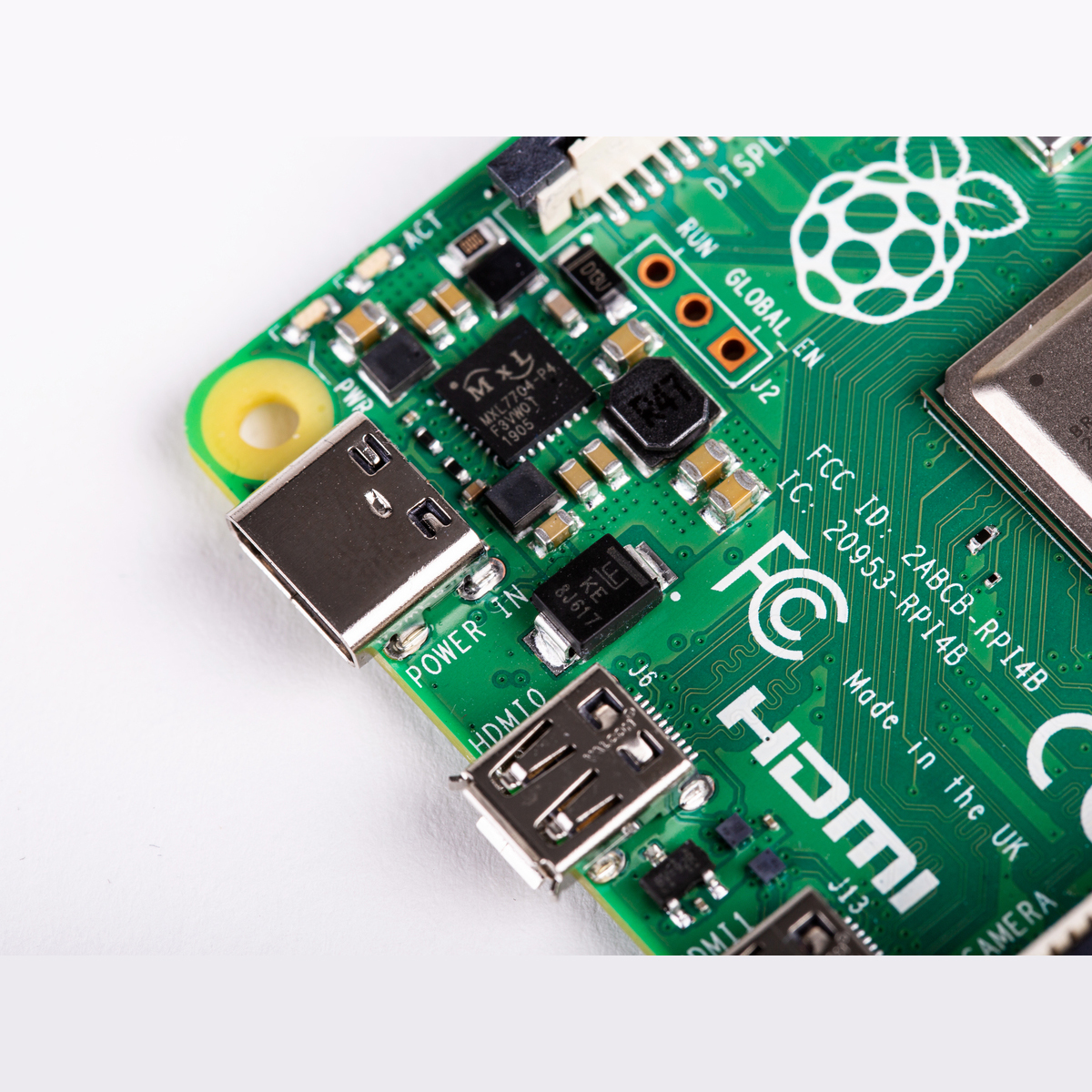

- 5V DC via USB-C connector (minimum 3A*)
- 5V DC via GPIO header (minimum 3A*)
- Power over Ethernet (PoE) enabled (requires separate PoE HAT)
- Operating temperature: 0 ? 50 ?C ambient
