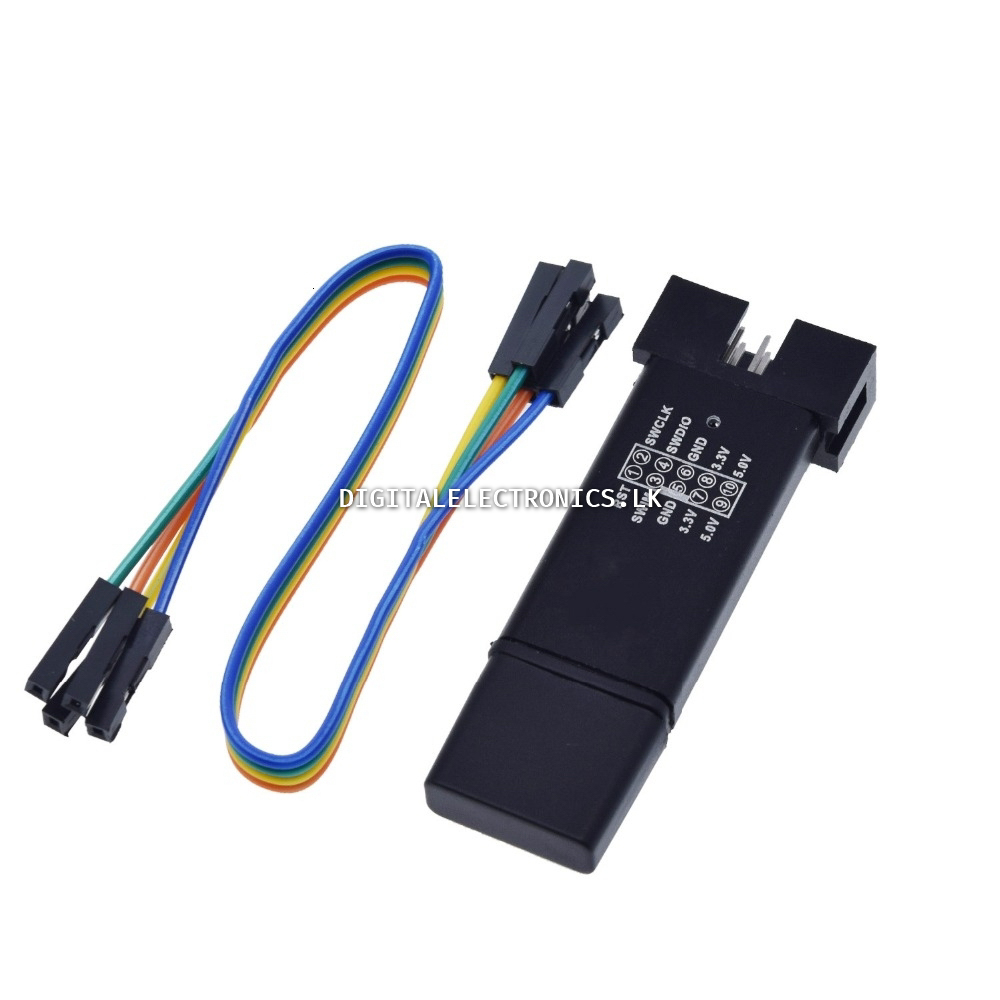

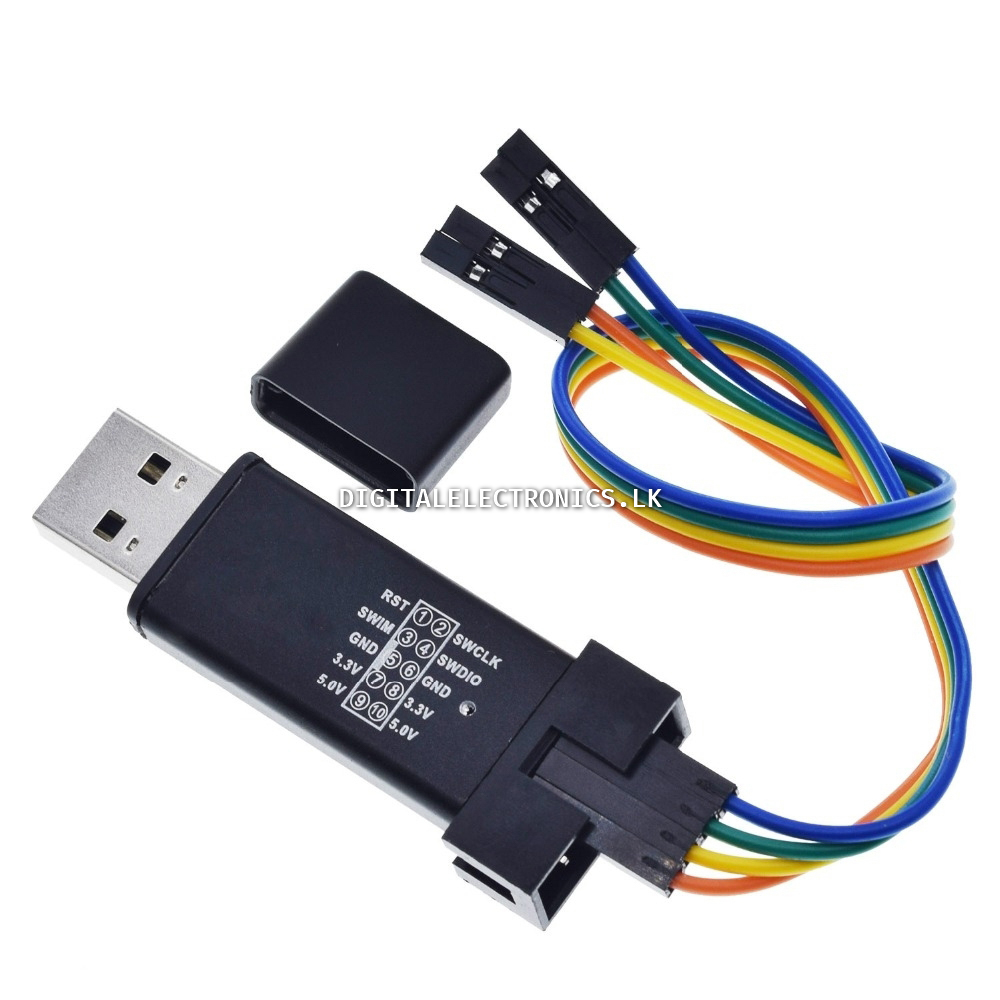

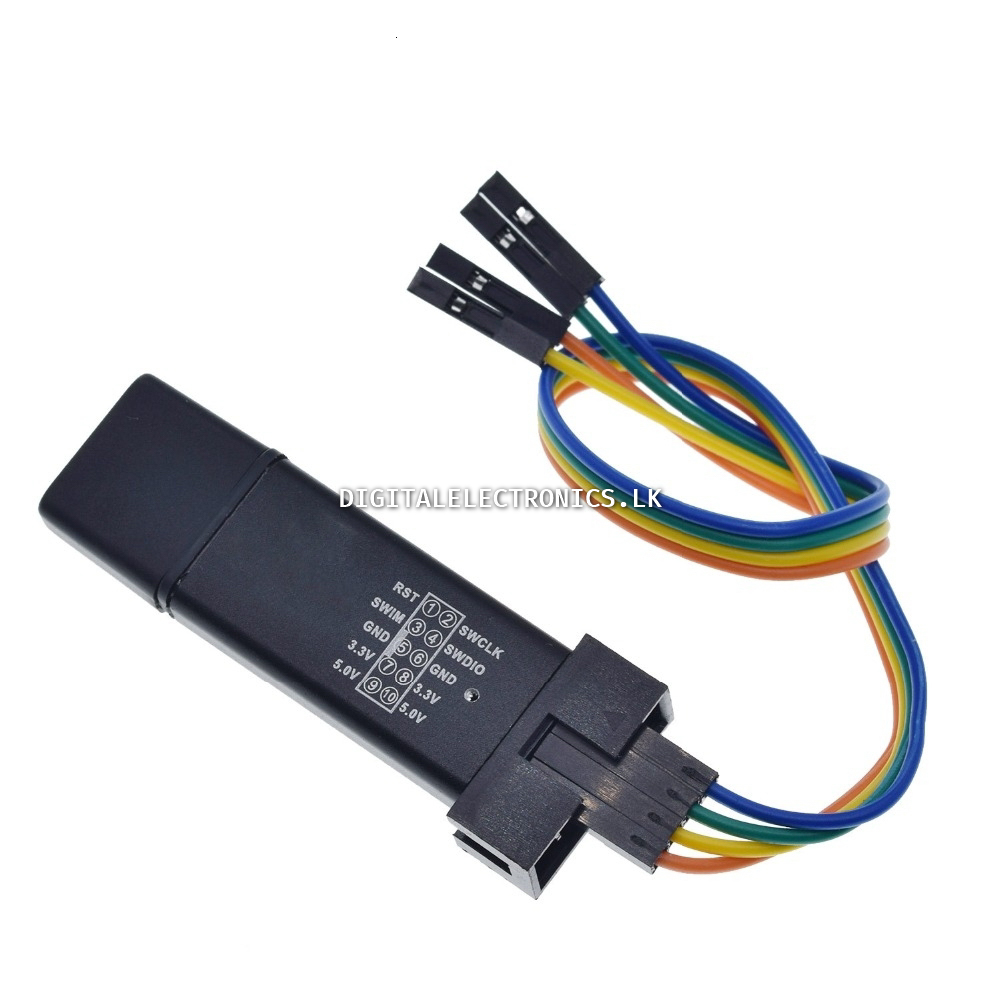

ST-Link V2

ST-Link V2

SKU: AR362 Category:

Specifications

  • Support a full range of STM32 SWD interface debugging, 4 wire interface simple (including power), fast speed, and work stability; interface definition shell is directly marked.
  • Support a full range of STM8 SWIM download debugging (common development environments such as IAR, STVD and so on are supported); support software version is as follows:
      • XTW LINK ST Utility 2.0 and above
      • STVD 4.2.1 and above
      • STVP 3.2.3 and above
      • IAR EWARM V6.20 and above
      • IAR EWSTM8 V1.30 and above
      • KEIL RVMDK V4.21 and above 6 and above
  • Support firmware automatic upgrade, factory firmware has been upgraded to the latest V2.J17.S4.
  •  Increase the 5V power output, output I / O port are protected, and not afraid of operating mistakes caused by LINK, ST, and V2 damage.
  • The interface uses pure copper gold-plated 2.54 space simple ox horn socket with 20CM Dupont wire
  • Using U aluminium alloy shell to protect the motherboard
