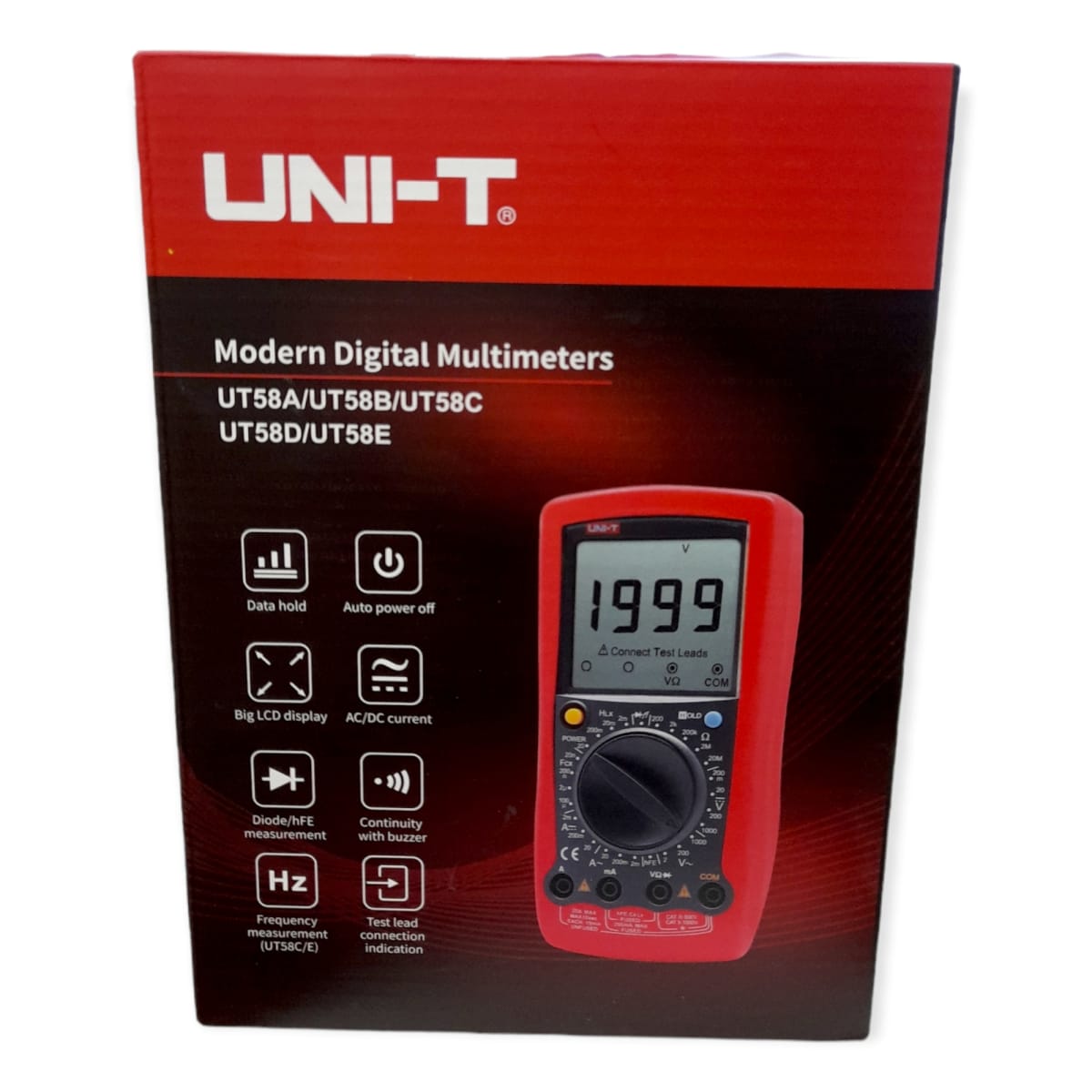

UNI-T UT58B Digital Multimeter

SKU: MT025 Categories: Digital Multimeters, Multimeters, UNI-T

Description

Specifications	Range	UT58B
DC voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+1)
DC voltage (V)	200mV/20V/200V/1000V
AC voltage (V)	2V/20V/200V/750V	±(0.8%+3)
	2V/200V/1000V
	2V/20V/200V/1000V
DC current (A)	20μA/2mA/20mA/200mA/20A
	2mA/20mA/200mA/20A	±(0.8%+1)
	2mA/200mA/20A
AC current (A)	2mA/200mA/20A	±(1%+3)
AC current (A)	20mA/200mA/20A
Resistance (Ω)	200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ	±(0.8%+1)
	200Ω/2kΩ/20kΩ/2MΩ/20MΩ
	200Ω/2kΩ/200kΩ/2MΩ/20MΩ
	200Ω/2kΩ/20kΩ/2MΩ/200MΩ
Capacitance (F)	2nF/200nF/100μF	±(4%+3)
	20nF/200nF/2μF/100μF
	2nF/20nF/2μF/20μF
Inductance (H)	2mH/20mH/200mH/20H
Frequency (Hz)	2kHz/20kHz
Frequency (Hz)	20kHz
Temperature (°C)	-40°C~1000°C	±(1%+3)
