Specification:

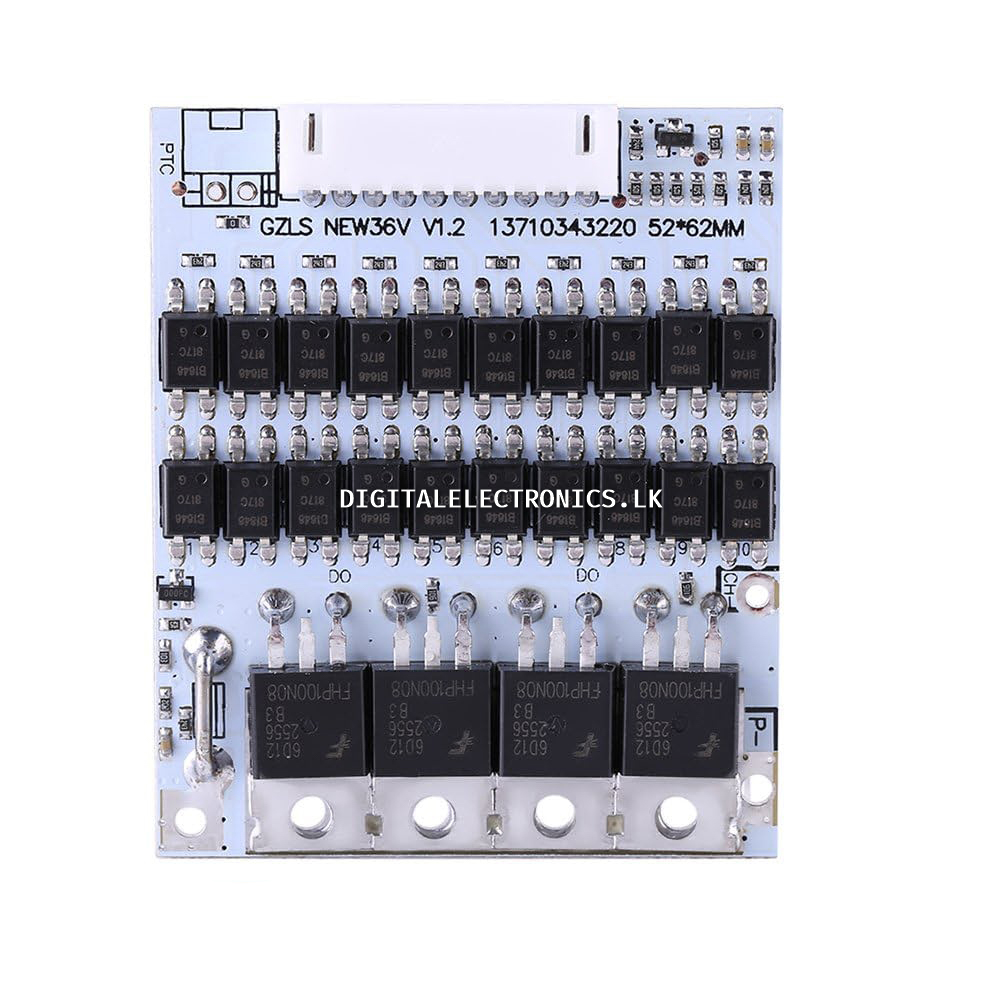

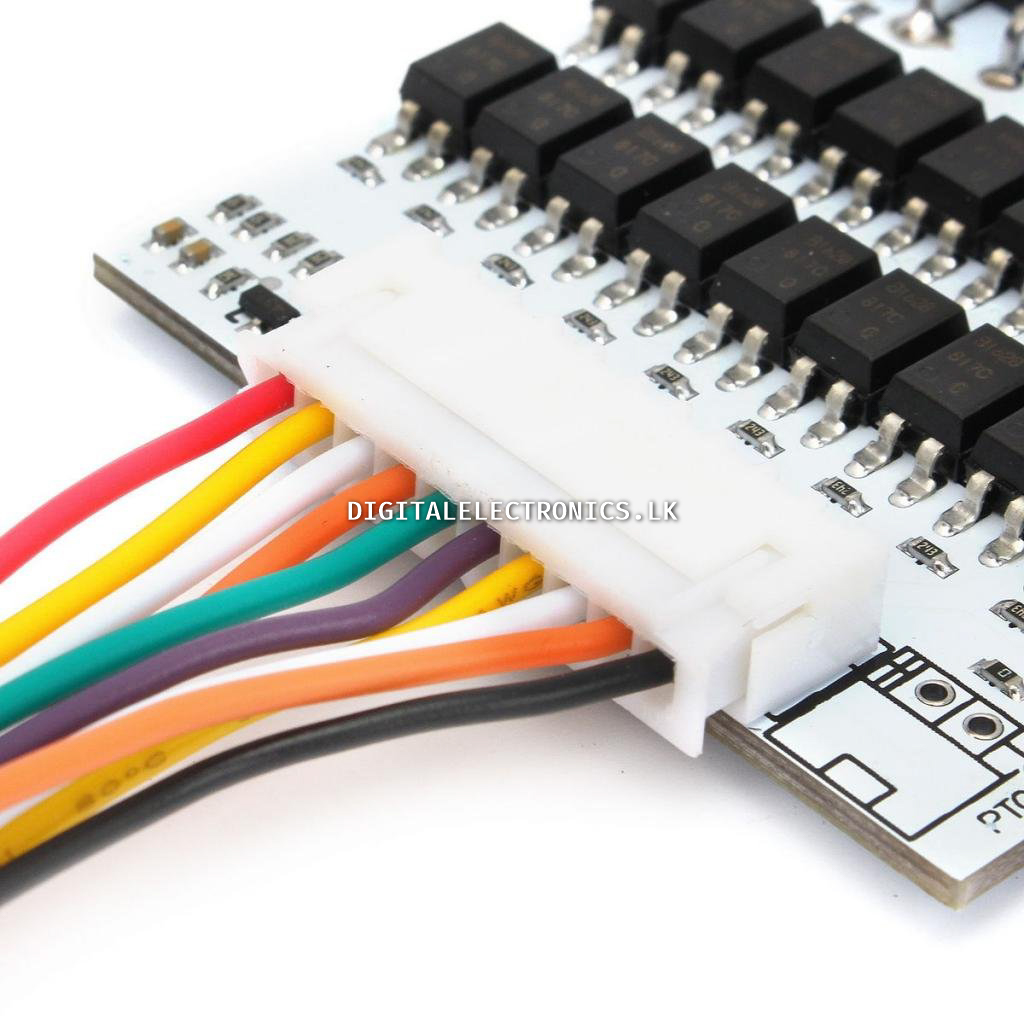

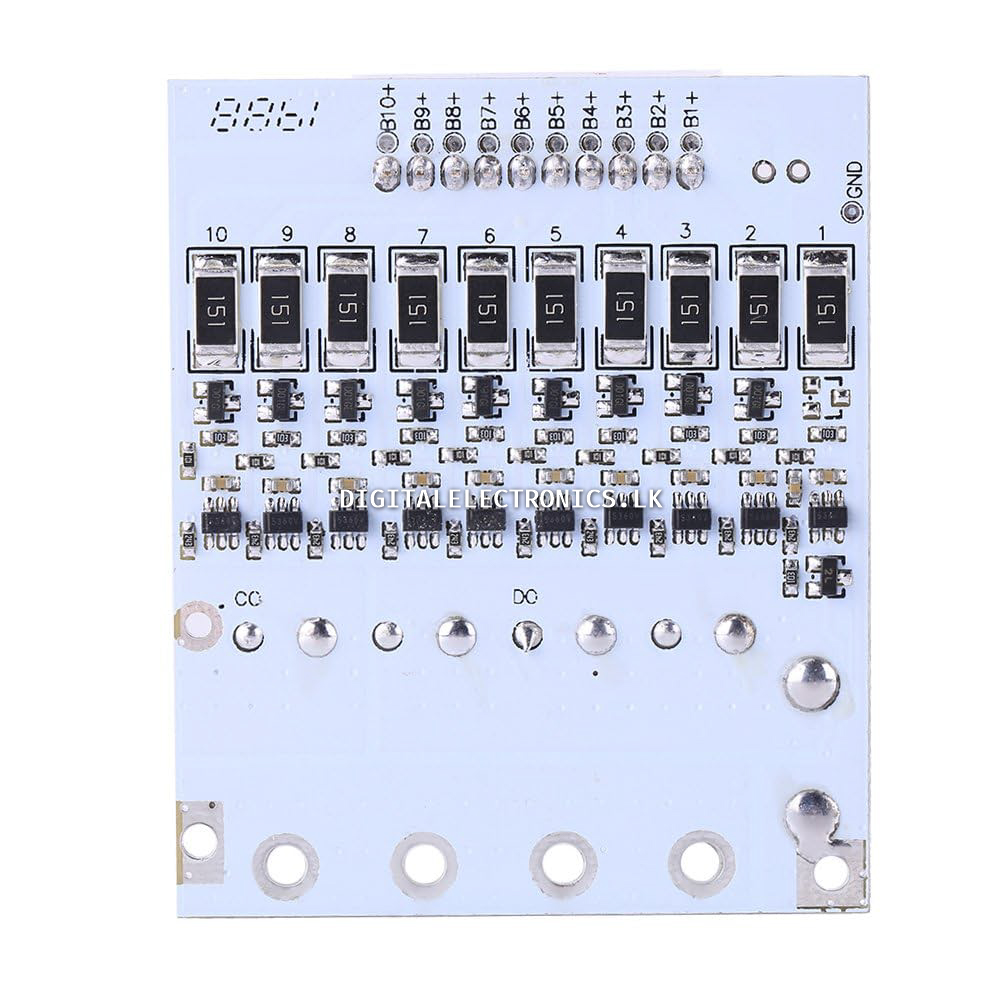

- Applicable: 36V 10 series lithium battery protection board
- Type of batteries: lithium cobalt / manganese lithium / ternary materials
- Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V / / 0.05V per upgrade )
- Single overcharge recovery voltage:4.10-4 .00 V
- Single Over-discharge protection voltage: 2.50V ± 0.1V (2.50-3.0V / / every .05 V into the class )
- Single Over-discharge recovery voltage: 2.80V ± 0.1V
- Protection Current consumption: ≤ 300UA
- Short circuit protection current: 40A ± 3A
- Short circuit protection time: 500MS
- Temperature protection: 55 / 65 / 75 degrees
- Discharge Current: 30A
- Maximum instantaneous current: 40A
- Single balanced voltage: 4.19V ± 0.02V
- Single balanced current: ≤ 55MA
- Charging current: ≤ 10A
