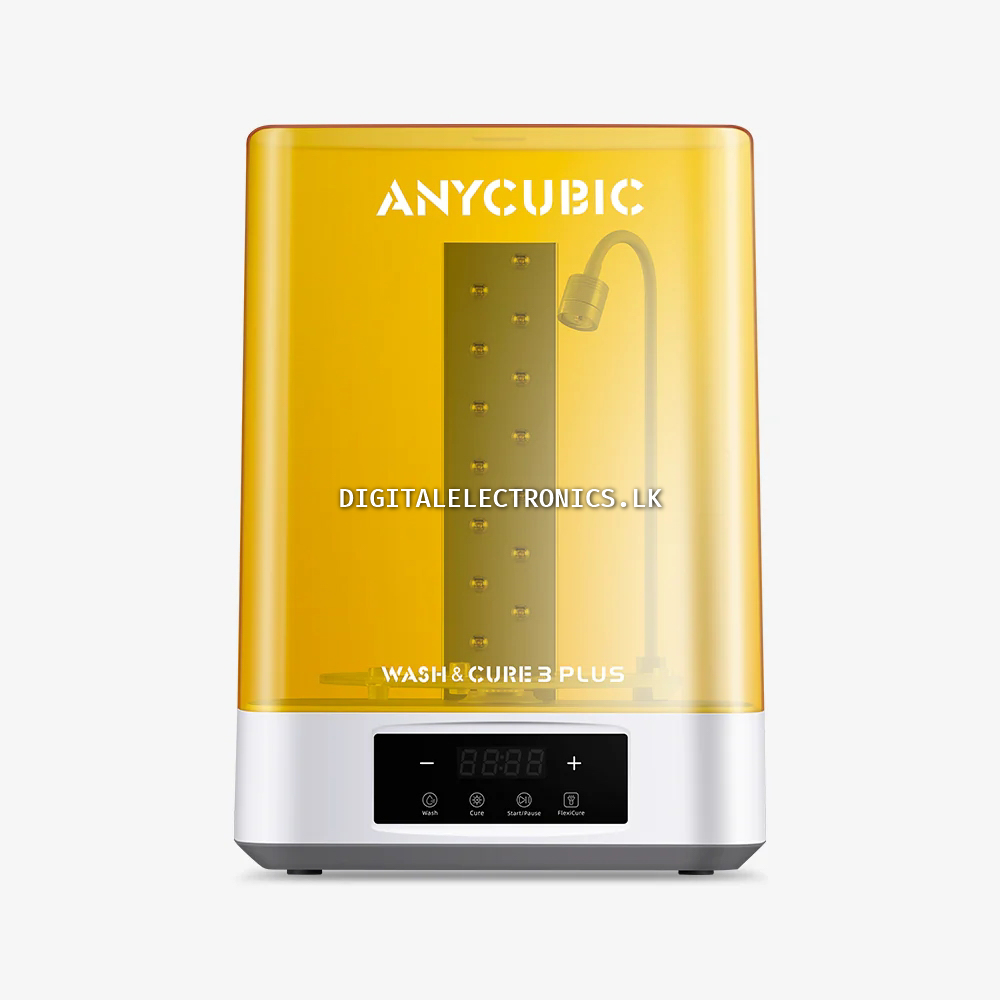

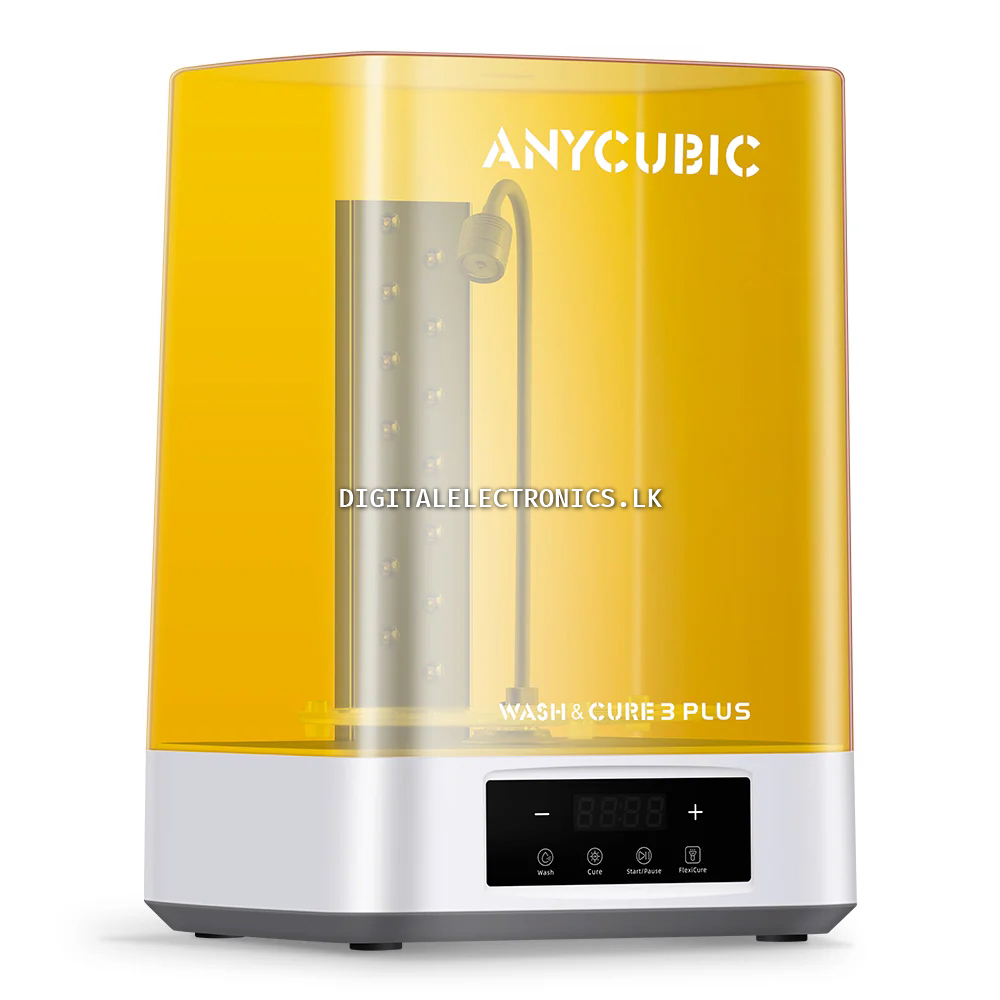

Features and Functions
- Washing Function:

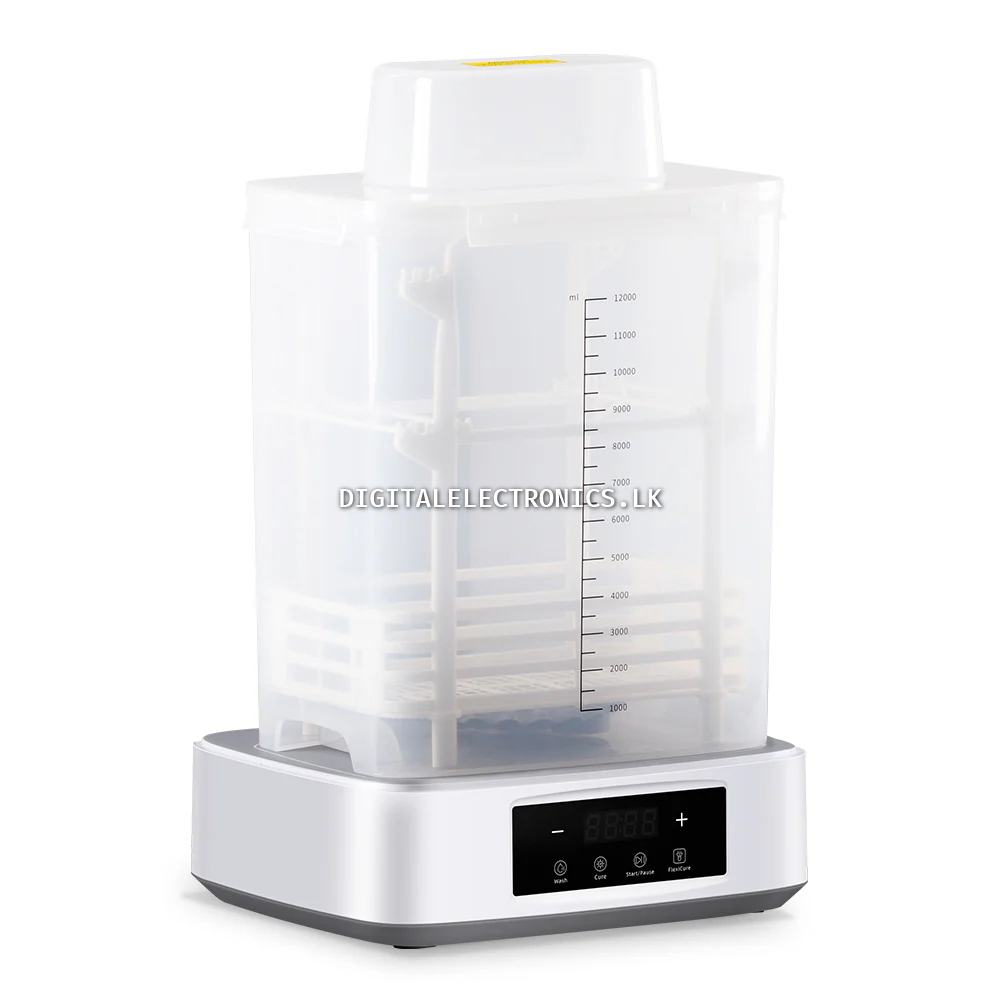

- Large Rotating Wash Basket: The Wash & Cure 3 Plus features a spacious, rotating wash basket that can accommodate larger and multiple prints simultaneously. The rotation ensures thorough cleaning by agitating the cleaning liquid around the print.

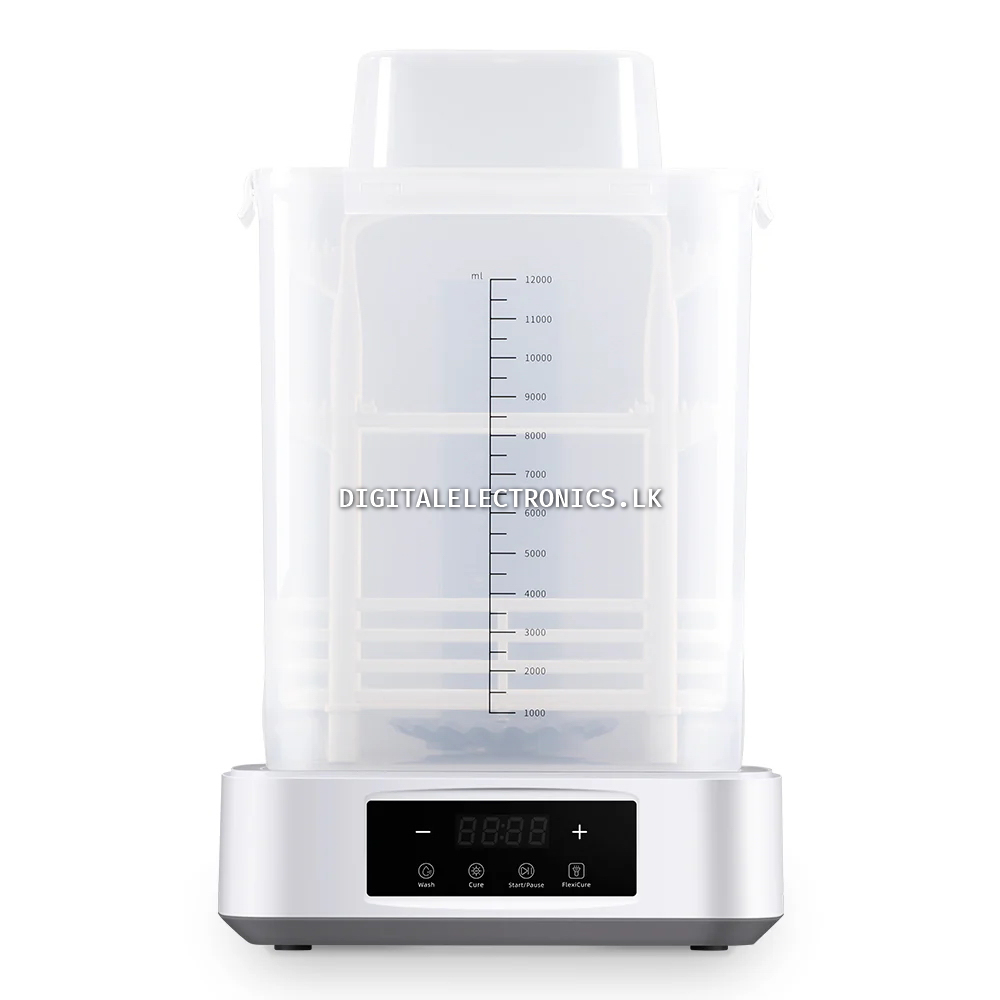

- Extra-Large Wash Container: Equipped with a large container that holds ample cleaning solution, such as isopropyl alcohol (IPA) or other suitable solvents, allowing for effective cleaning of various print sizes.
- Efficient Cleaning System: The device is designed to enhance the cleaning process with powerful agitation, ensuring all surfaces of the print are cleaned thoroughly.
- Curing Function:
- High-Power UV Light System: The curing chamber is equipped with high-intensity UV LEDs arranged around the chamber. This system provides strong and even UV exposure for effective curing of resin prints.
- Adjustable Curing Time and Temperature: Users can set both the curing time and temperature, accommodating different resin types and model sizes to achieve optimal curing results.
- Rotating Turntable: The unit includes a rotating turntable inside the curing chamber. This rotation ensures that the entire model receives uniform UV exposure, improving the curing process and enhancing the final strength of the print.
- User-Friendly Interface:
- Intuitive Control Panel: The Wash & Cure 3 Plus features an advanced control panel with a touchscreen interface. This panel allows users to easily select wash and cure modes, adjust settings, and monitor the progress.
- Preset Programs: Includes preset programs for common resin types and print sizes, simplifying the process and ensuring optimal settings for different materials.
- Design and Build:
- Larger Capacity: Designed to handle larger prints and greater volumes of cleaning solution, making it suitable for both small and large-scale resin printing operations.
- Durable and High-Quality Construction: Built with robust materials to withstand frequent use and provide long-lasting performance. The chamber is designed to minimize UV exposure outside the device for safety.
- Compact Footprint: Despite its large capacity, the unit maintains a compact footprint, fitting comfortably on most workbenches.
- Safety Features:
- Automatic Shut-Off: The device includes an automatic shut-off feature that stops the wash or cure cycle once the set time is reached, preventing overexposure and ensuring safety.
- Overheat Protection: Equipped with overheat protection to safeguard both the device and the user from potential heat-related issues.
Usage Instructions
- Washing:
- Place the printed model in the large wash basket and fill the container with the appropriate cleaning liquid.
- Select the washing mode and time on the touchscreen interface, then start the washing cycle. The rotating basket will ensure thorough cleaning of the model.
- Curing:
- After washing, transfer the model to the curing chamber.
- Set the desired curing time and temperature, then start the curing cycle. The rotating turntable will ensure even UV exposure for optimal curing.
Maintenance Tips
- Regular Cleaning: Clean the wash container and curing chamber after each use to remove any resin residue and maintain device performance.
- Inspect UV LEDs: Regularly check the UV LEDs for proper operation and replace them if necessary to ensure effective curing.
