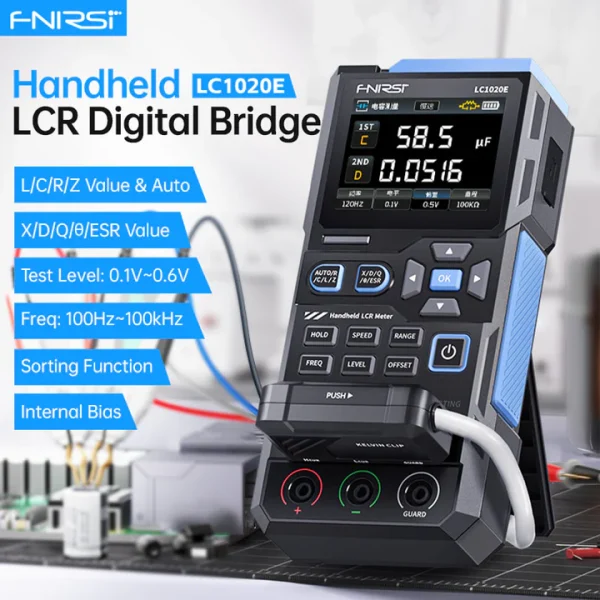

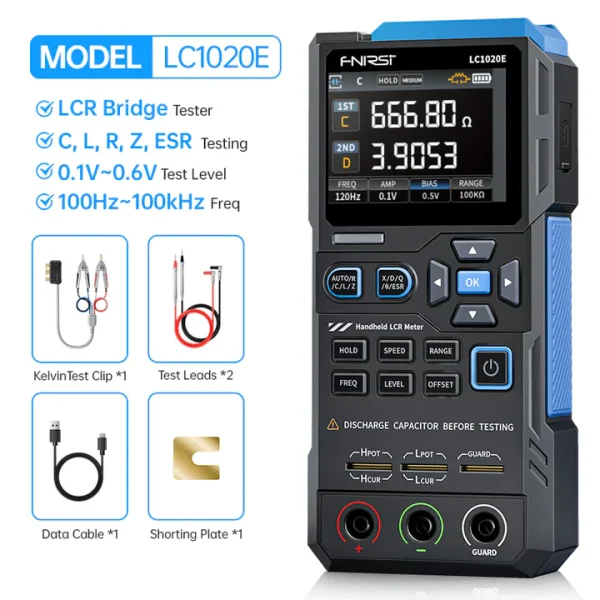

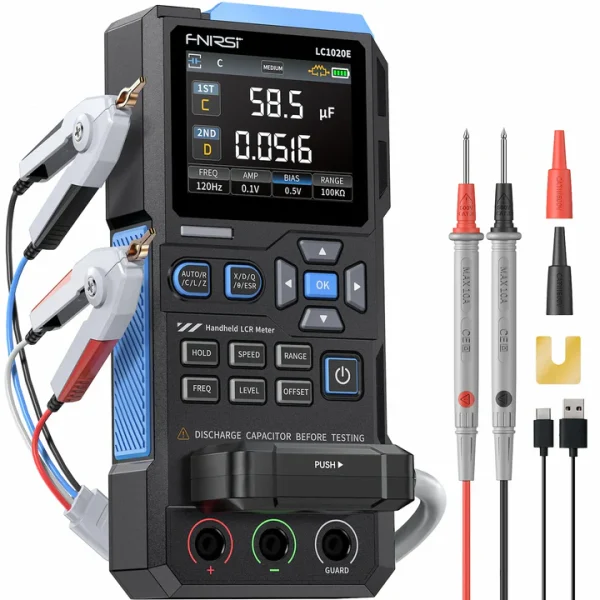

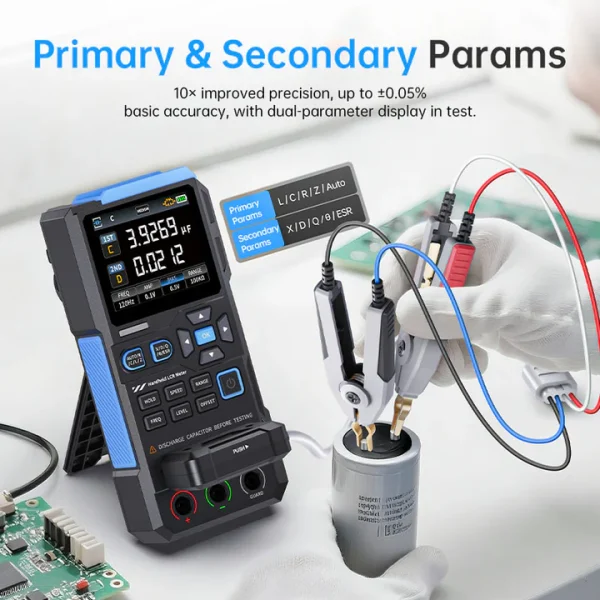

FNIRSI® LC1020E High-Precision Handheld LCR Meter
Take your benchtop precision on the go. The FNIRSI® LC1020E is an intelligent, high-precision handheld LCR meter designed for engineers, technicians, and hardware enthusiasts who demand laboratory-grade accuracy in a portable form factor. Featuring a stunning 2.8-inch TFT color display and a basic accuracy of ±0.05%, this tool is engineered for deep analysis of inductors, capacitors, and resistors.
Whether you are performing batch quality control or debugging complex circuits in a lab simulation, the LC1020E provides the insights you need with professional-grade resolution.
Key Features
-
Elite Precision: Achieve up to 4.5-digit resolution with a basic accuracy of 0.05%, ensuring your measurements are stable and repeatable.
-

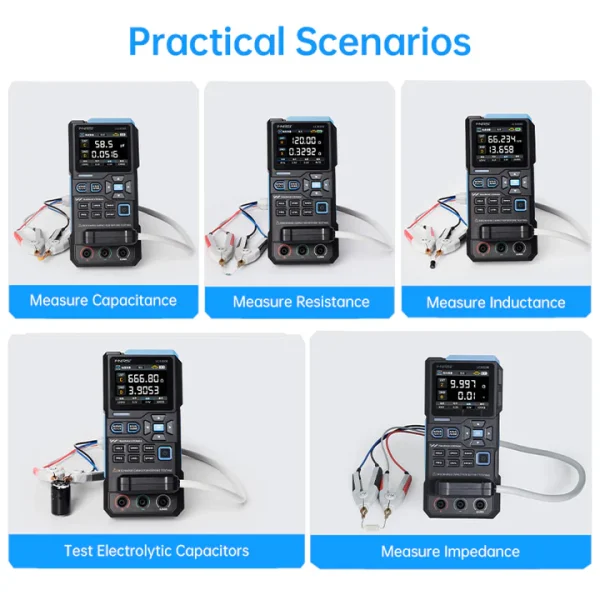

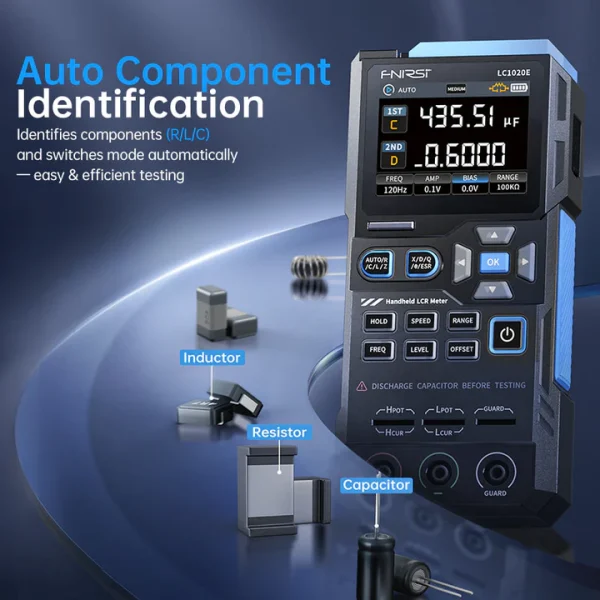

Smart Identification: No more manual switching. The device automatically recognizes R/L/C components for a fast, seamless workflow.
-
Versatile Test Frequencies: Supports 5 preset frequencies (100Hz to 100kHz) and 3 RMS test levels, allowing for high-frequency analysis of sensitive components.
-
Kelvin 4-Wire Testing: Minimize lead resistance errors with the 5-terminal configuration for maximum accuracy on low-impedance components.
-

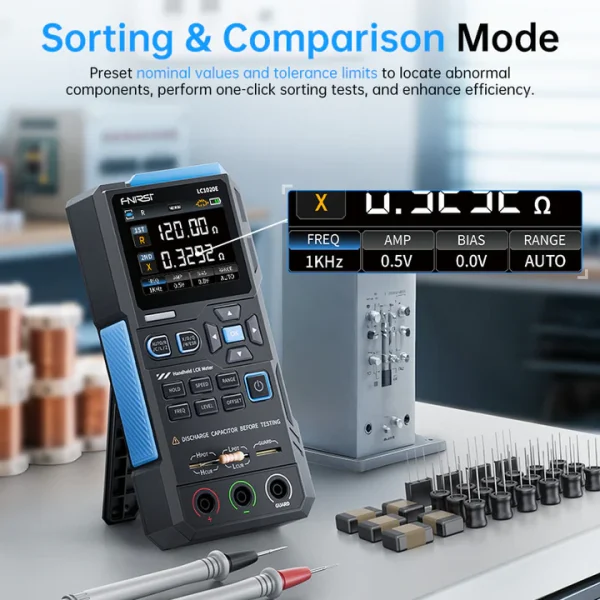

Sorting & Batch Testing: Set custom nominal values and tolerances (0.1%–99.9%) for rapid Pass/Fail judgments with audio-visual alerts.
-
Built-in Bias Voltage: Features internal bias (0.5V) to stabilize readings for sensitive electronic components.
-
Rugged & Portable: Powered by a high-capacity 3000mAh lithium battery, it’s built for the production line, the field, or the lab.
Specifications:

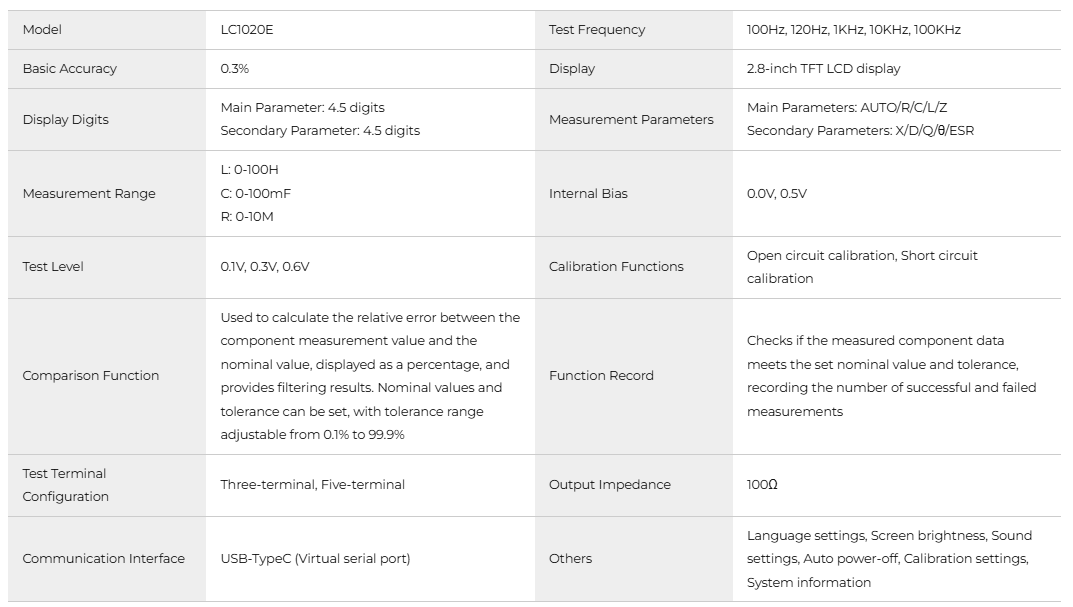

General Parameters:

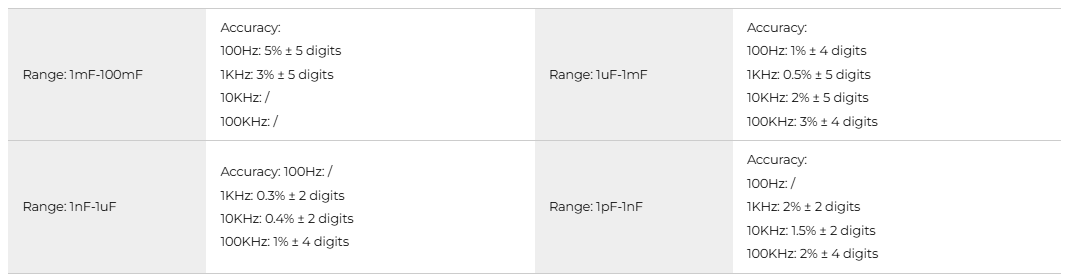

Capacitance (C)

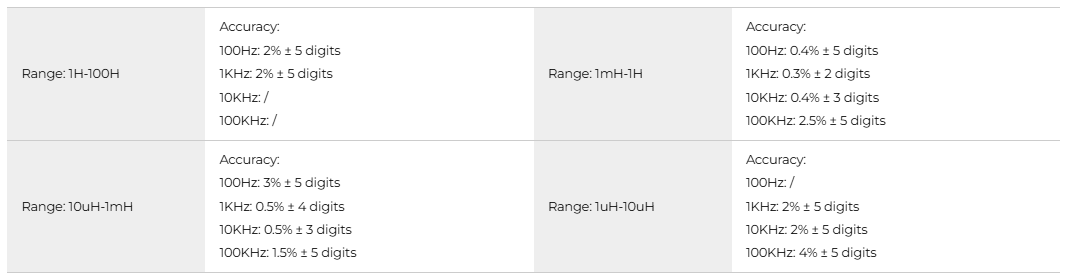

Inductance (L)

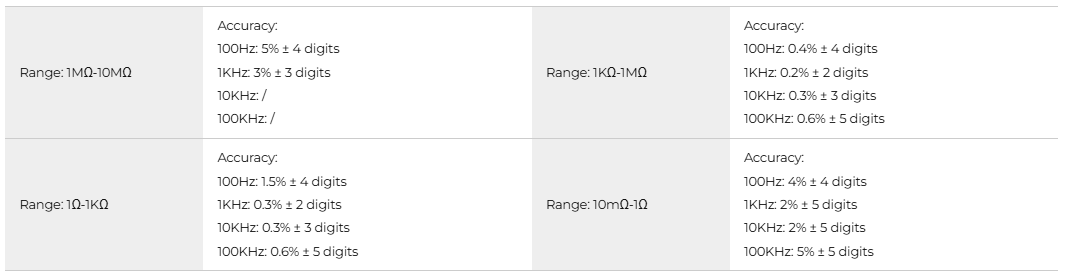

Resistance (R)
