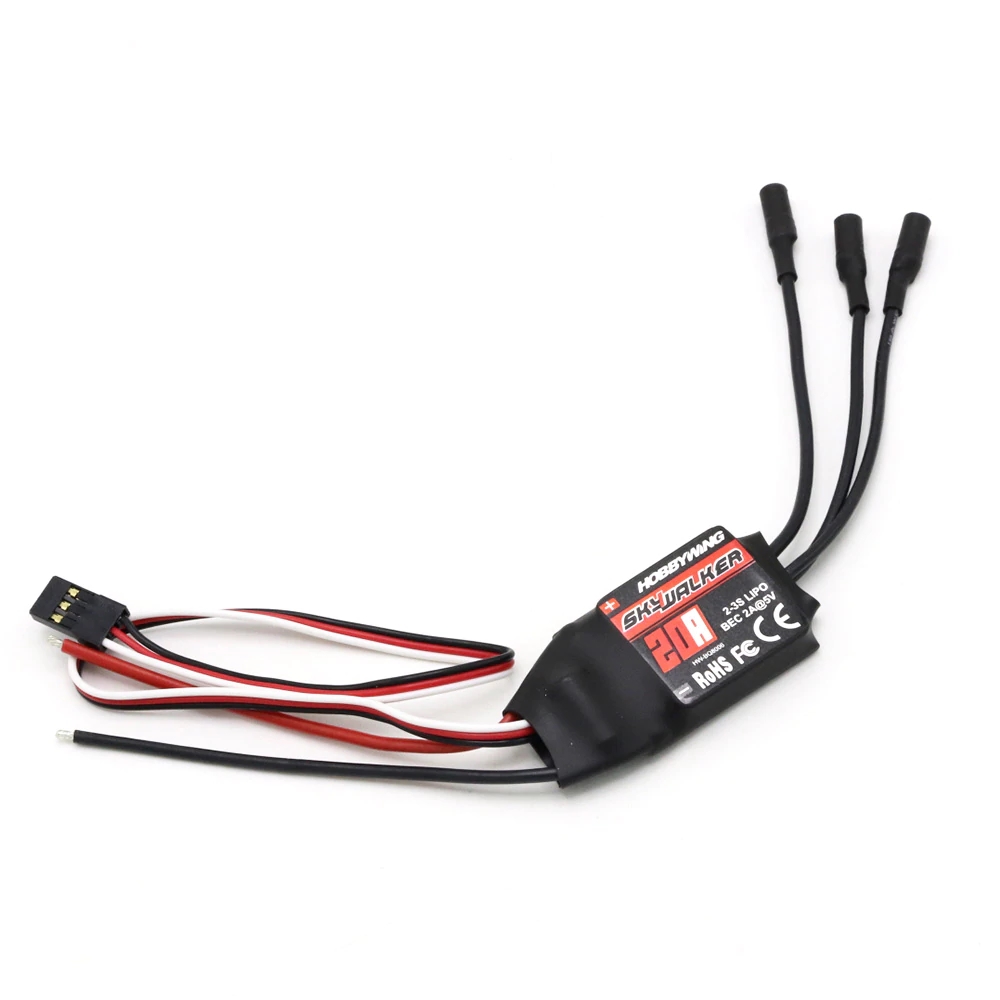

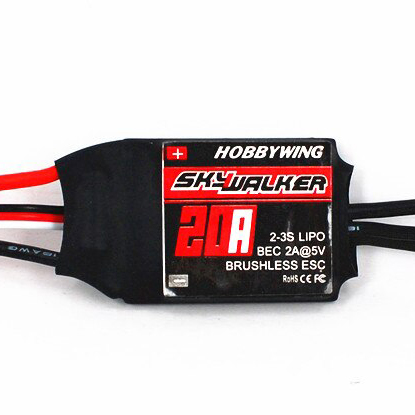

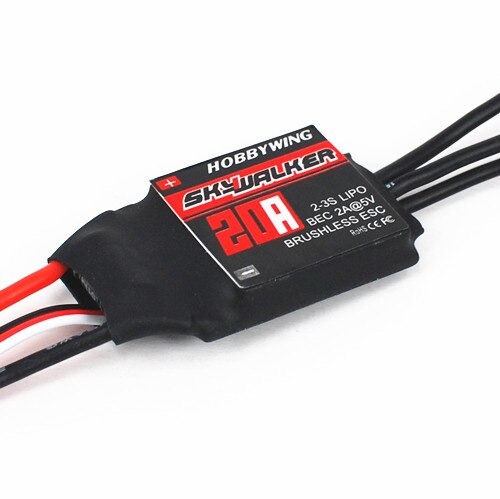

HobbyWing SkyWalker ESC 20A

HobbyWing SkyWalker ESC 20A

Categories: ,

Skywalker 20A

Class 20A
Model Skywalker-20A
Cont. Current 20A
Burst Current (>10s) 25A
BEC. Mode Linear
BEC Output 5V/2A
BEC Output Capability 2S LiPo 5 Servos
3S LiPo 4 Servos
Battery Cell LiPo 2-3S
NiMH 5-9 Cells
Weight 19g
Size ?L*W*H 42*25*8

1 Specification

  • Output: Continuous 20A, Burst 25A up to 10 seconds.
  • Input Voltage: 2-3S LiPo, 5-9 cells NiMH.
  • BEC: 2A / 5V Linear mode BEC.
  • Refresh rate of the throttle signal: 50Hz to 432Hz.
  • Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = Brushless Motor)
  • Size: 42mm*25mm*8mm.
  • Weight: 19g.

2 Features

  • Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
  • Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
  • User programmable.
  • Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field. Compatible with Li-Po and NiMH battery.
  • Timing can be changed to be suitable for different brushless motors.
  • Full protection: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
