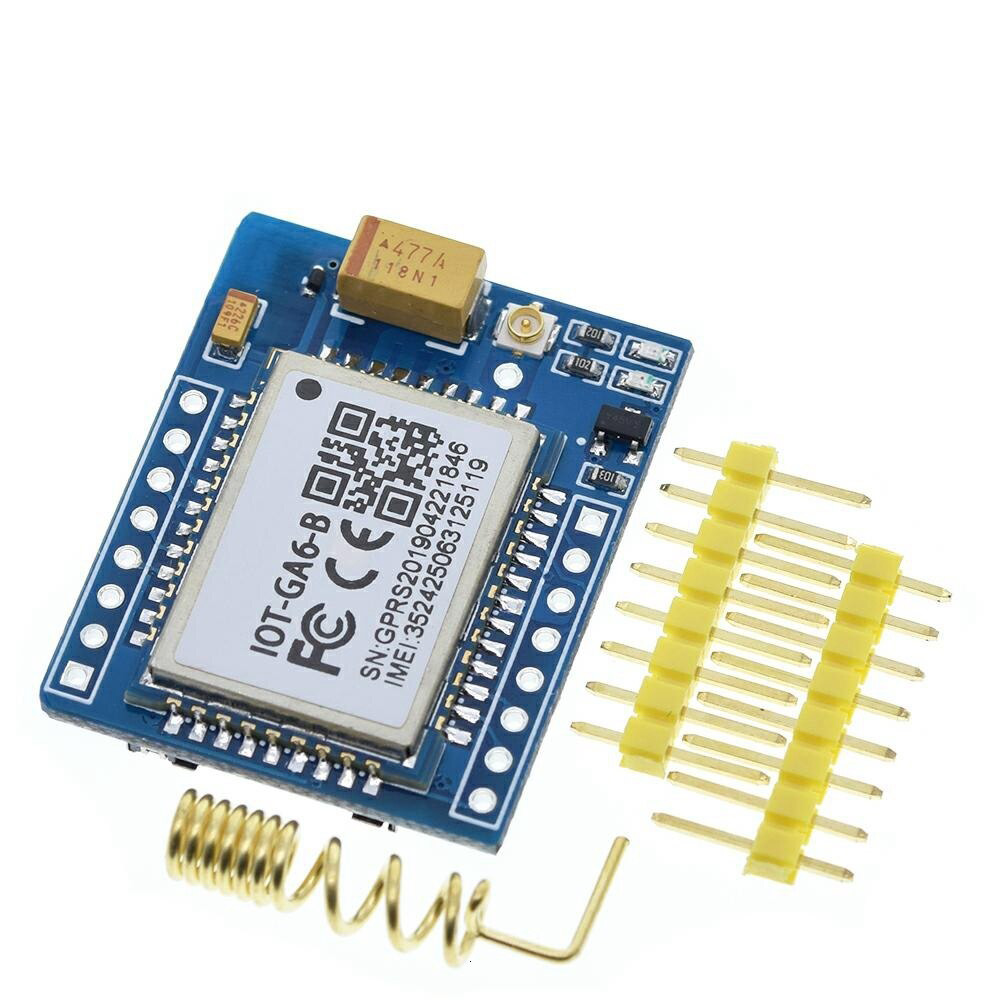

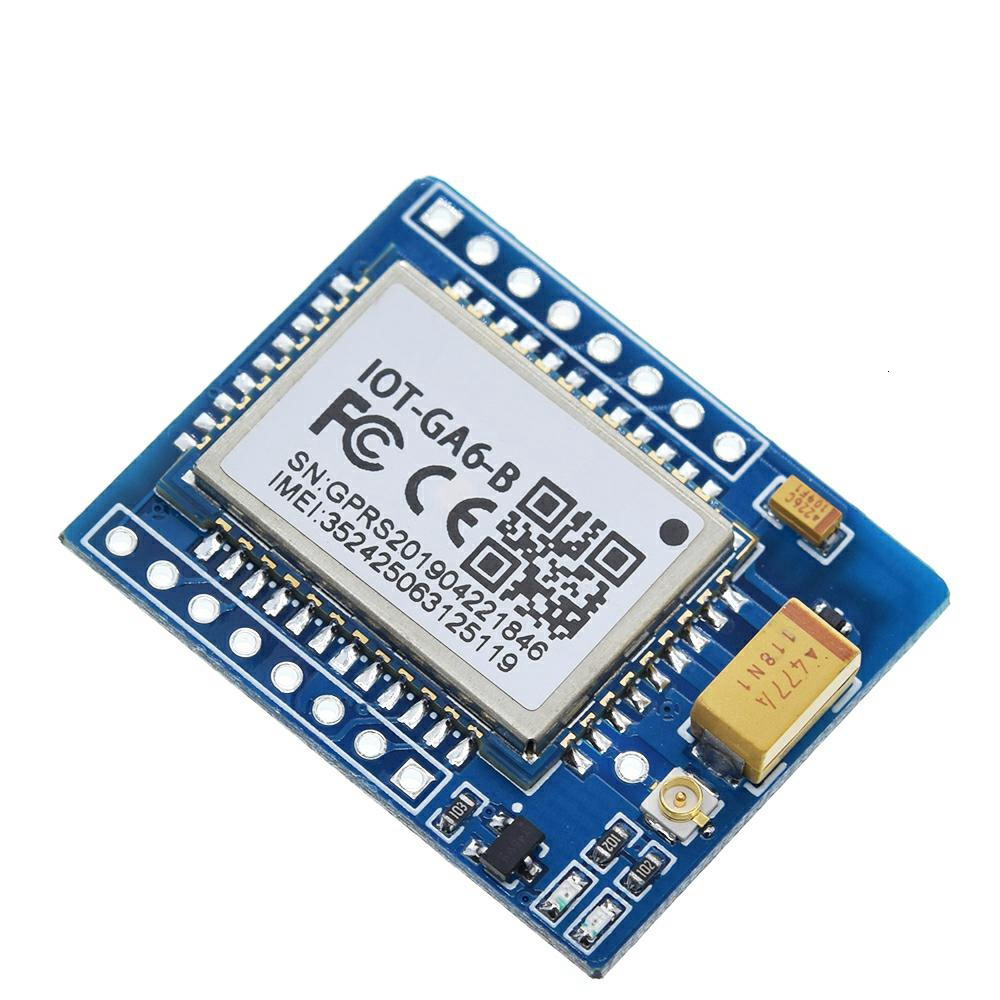

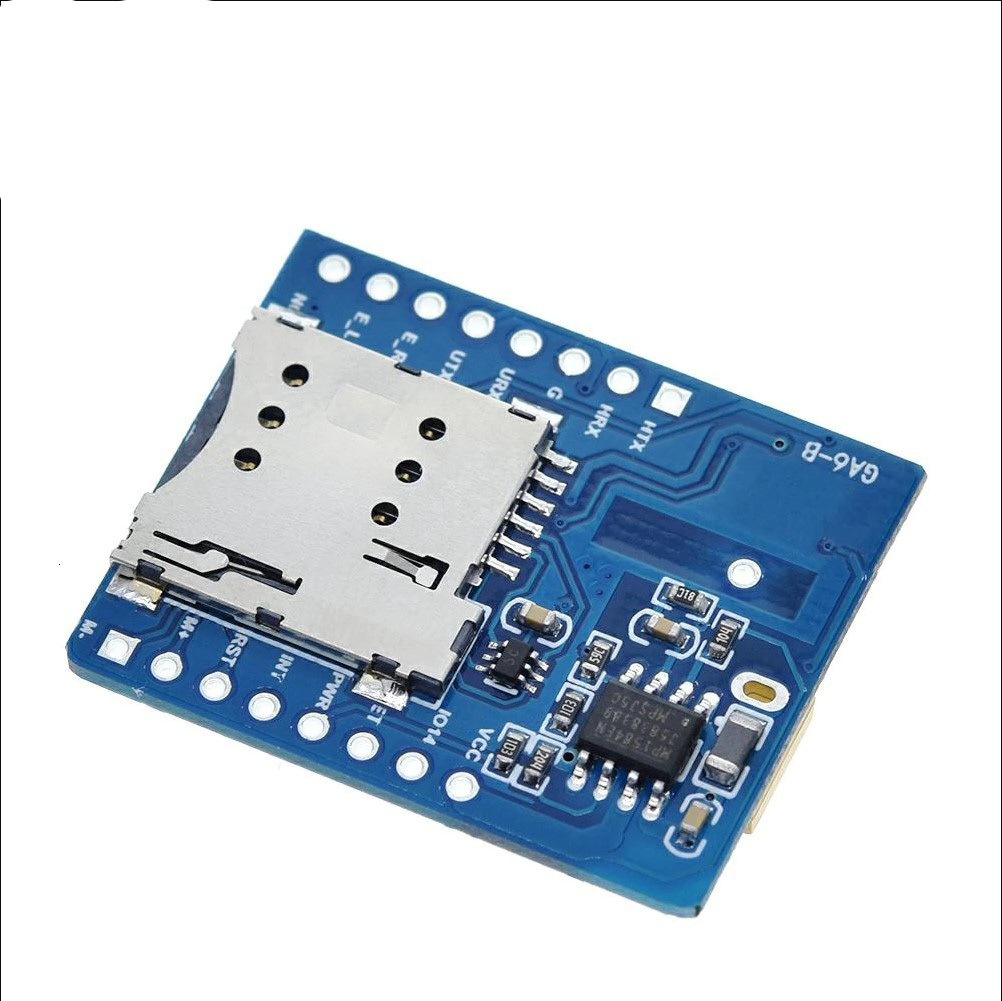

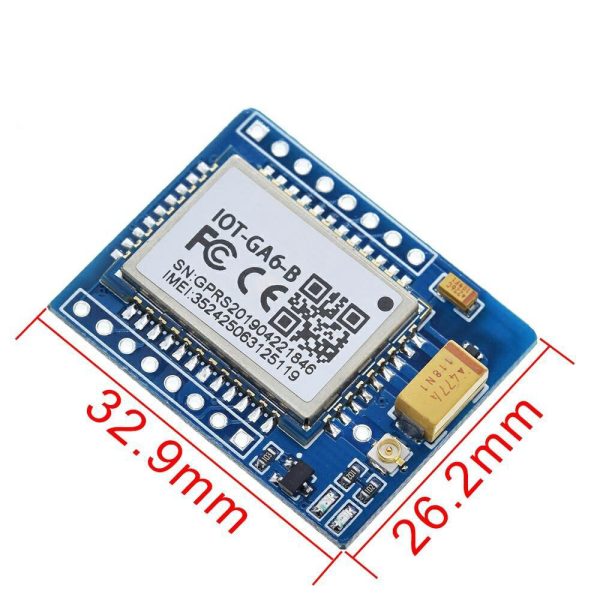

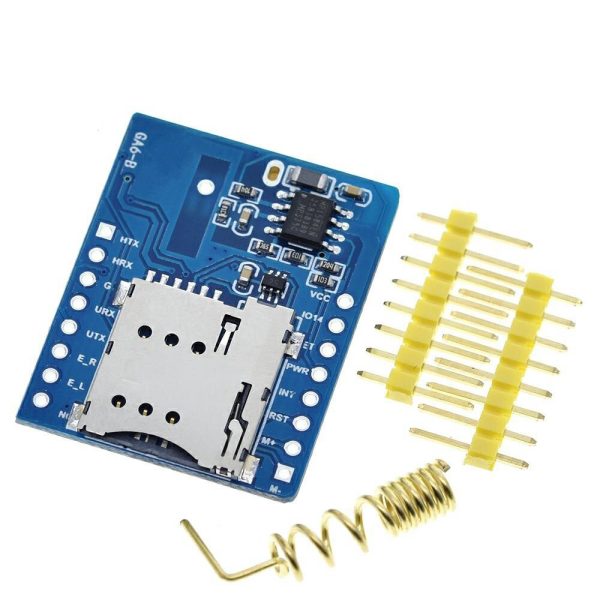

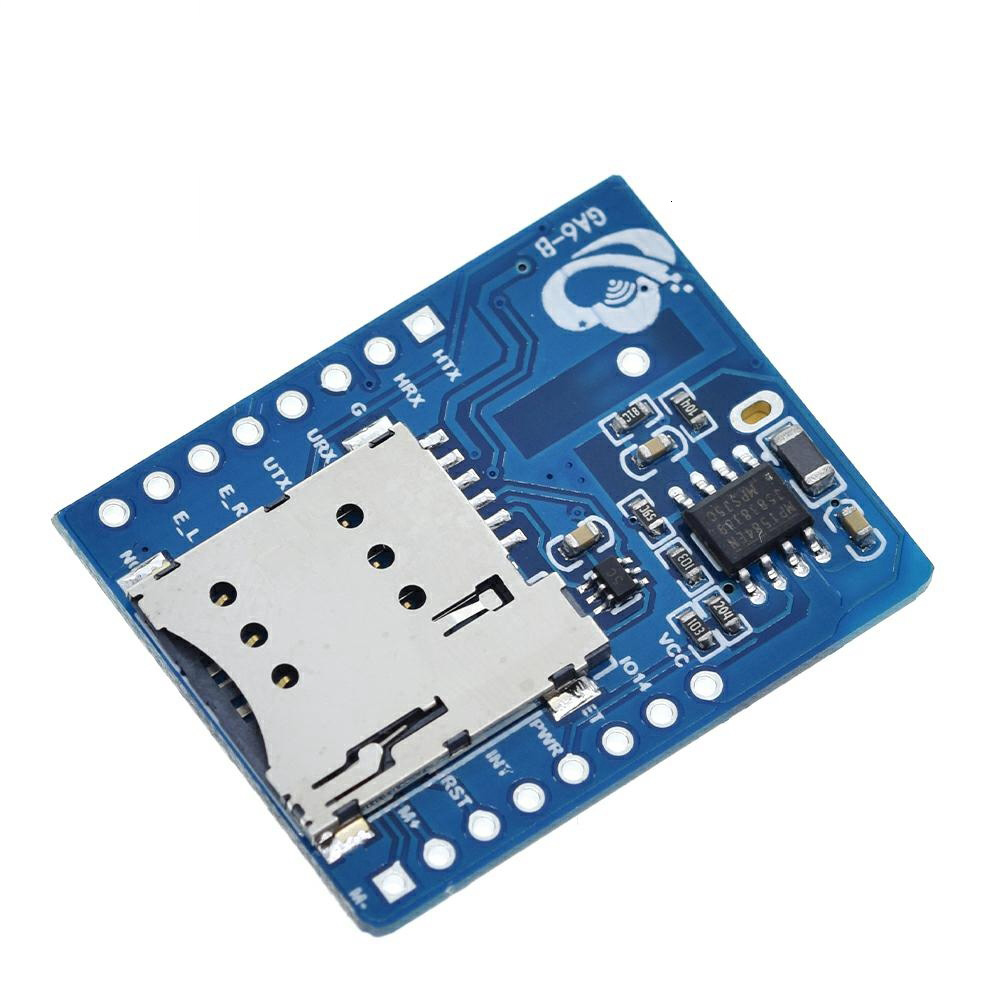

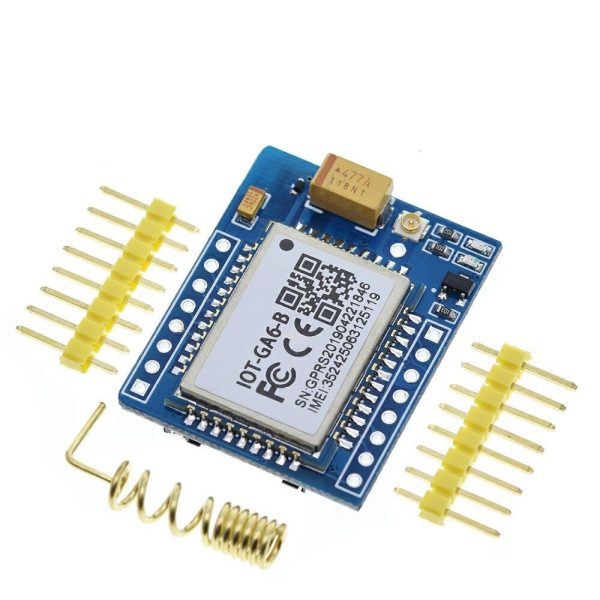

Mini A6 GA6 GPRS GSM Kit Wireless Extension Module

රු1,150.00

Mini A6 GA6 GPRS GSM Kit Wireless Extension Module

SKU: 94 Categories: ,
  • Working frequency: quad-band network, 850 / 900 / 1800 / 1900MHZ
  • Working voltage: 3.5~4.2VDC
  • Working Current: maximum of 2A
  • Sleep Current: 5mA
  • Onboard Micro SIM card holder, you can install Micro SIM cards
  • Communication Interface: TTL serial port
  • Baud rate: 115200bps and it can also be set by AT command.
  • Interface logic voltage: 3.3V
  • Make and answer phone calls using a headset and electret microphone.
  • Send and receive SMS messages.
  • Send and receive GPRS data (TCP/IP, HTTP etc.)
  • Pin pitch: 2.54mm
  • Onboard antenna interface: IPX and pad for Spring Antenna

About the Antenna:

  • Suitable for SIM800L GSM modules / Arduino SIM900 GPRS Shield
  • Frequency: 780MHz~960MHz, 1710MHz~2170MHz
  • Antenna gain: +2.0 ± 0.7 dBi @ 880 MHz, +2.0 ± 0.7 dBi @ 1800 MHz
  • W.R <= 2.0 @ 2100 MHz ~ 2500 MHz
  • Output Impedance: 50 Ohm
  • Usage: It can be soldered directly to the board.
