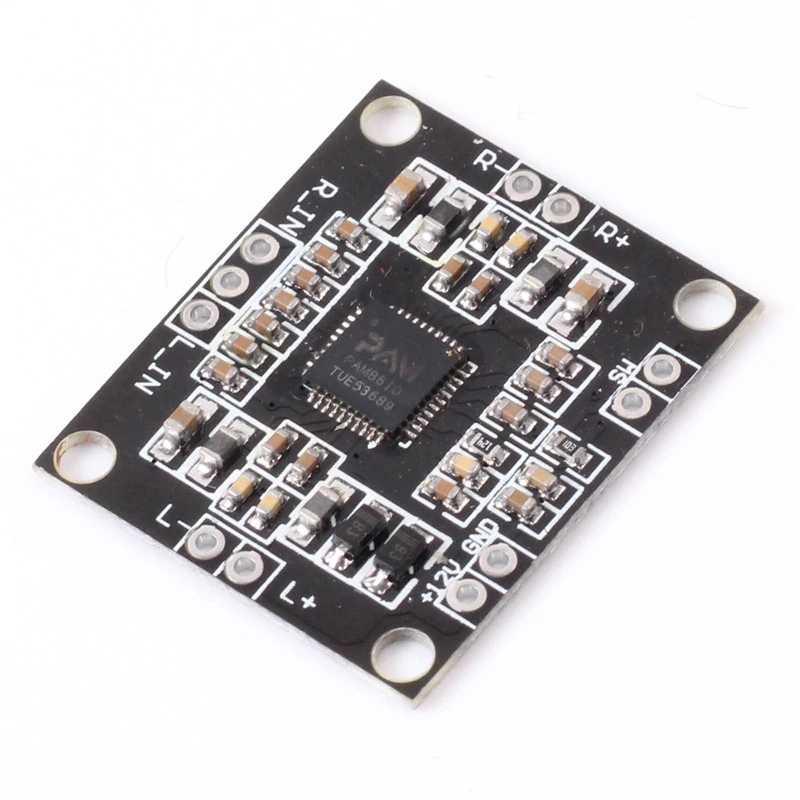

PAM8610 15W Digital Stereo Class-D Amplifier (12V)

PAM8610 15W Digital Stereo Class-D Amplifier (12V)

SKU: AR121 Categories: Amplifiers and Sound, Sensors & Modules

Description

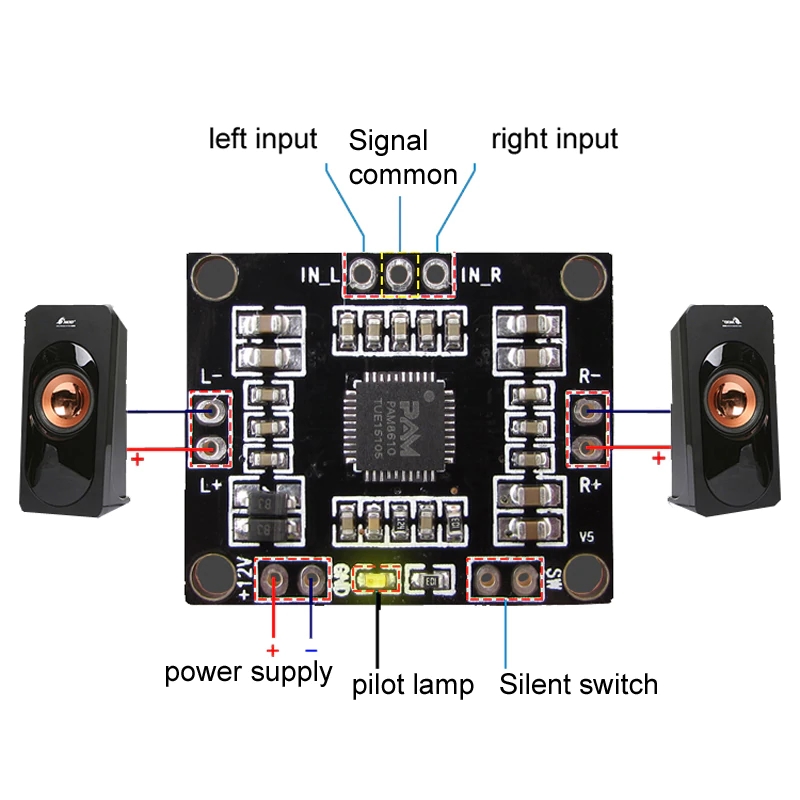

This plate with switching function, SW short, will turn off the power amplifier
Working Mode: Class D (PWM modulation type)
Chip Type: PAM8610
Power Range: DC 6V – 15V (self-protection)
Recommended Voltage: DC 12V(2A)
Output Power: 10Wx2(8?) 15Wx2(4?)
Frequency Response: 20HZ-15KHZ
Static Current: 20mA (DC12V)
SNR: 90% Recommended
Speakers: 10-100W
Input Impedance: 15K
Output Impedance: 4 – 8?
Harmonic Distortion: <0.1%
