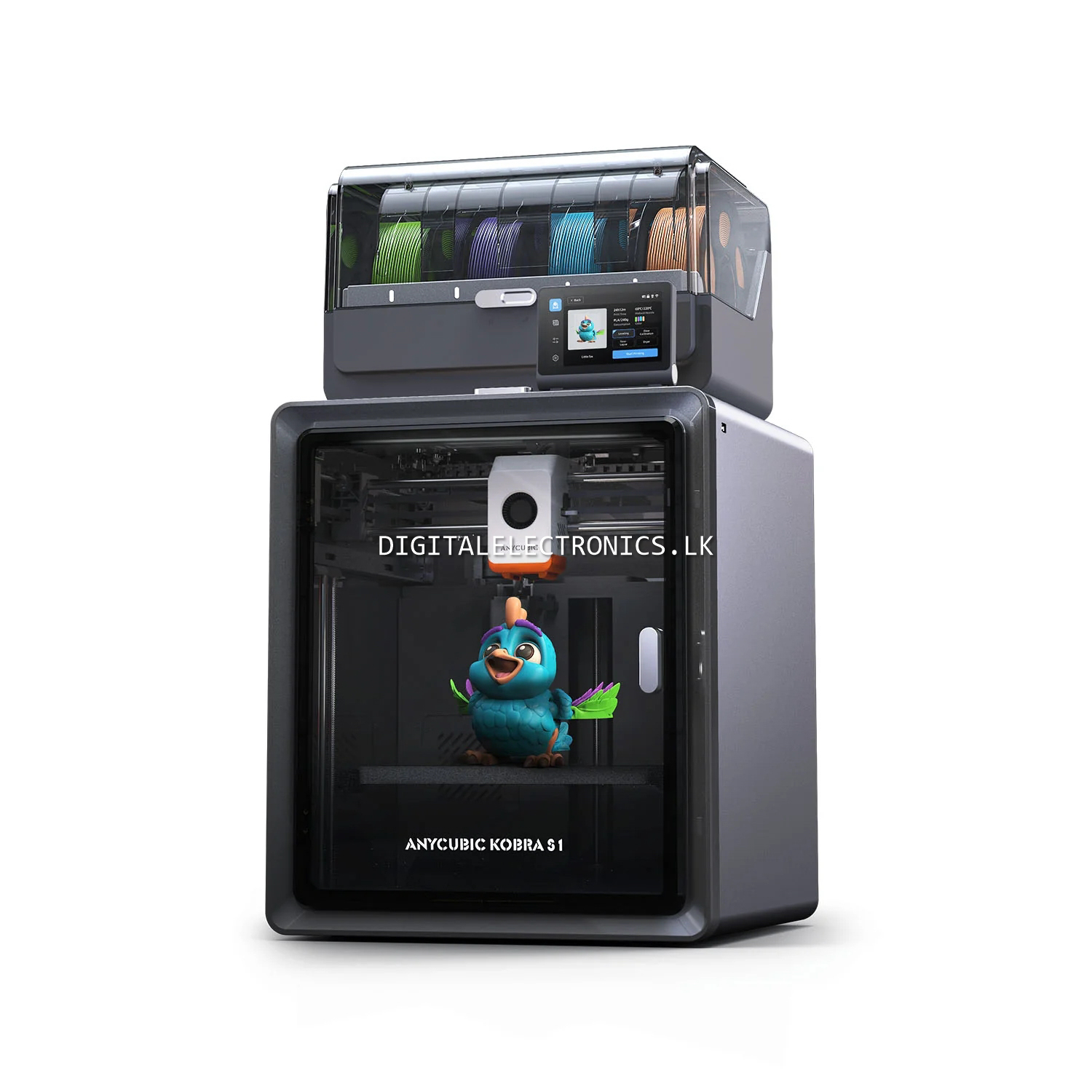

Description
Core Printing Performance
- Multicolor Printing: Supports 4- or 8-color printing
- Printing Volume: 250 × 250 × 250 mm³
- Supporting Filaments: PLA, PETG, TPU (95A) (TPU 95A is not compatible with the ACE Pro), ABS, ASA
- Printing Speed: Recommended 300 mm/s; Maximum 600 mm/s
- Acceleration: Recommended 10,000 mm/s²; Maximum 20,000 mm/s²
Nozzle Specs
- Max Temperature: 320°C
- Diameter: Standard 0.4 mm (expandable to 0.6 / 0.8 mm)
Hotbed Specs
- Max Temperature: 120°C
- Material: PEI spring steel build plate
System & Mechanical Design
- Firmware Solution: Kobra OS
- Construction: CoreXY
- Extrusion Type: Short distance extrusion
- Machine Leveling: LeviQ 3.0 auto-leveling, Z-offset
- Pressure Advance / Flow Calibration: Supported
- Power Loss Resume: Supported
- Filament Detection & Auto Resume: Supported
- Filament Entanglement Detection: Supported
- AI Spaghetti Detection: Supported
- Object-Skip & Area Leveling: Supported
Control & Print Methods
- Via printer, slicing software, Anycubic app, USB (print only)
User Experience & Features
- Touchscreen: 4.3-inch capacitive touchscreen
- Noise: ≤ 46 dB (standard mode); ≤ 44 dB (quiet mode)
- Video Monitoring: Standard HD camera, supports 480p
- Multilingual Support: EN / CN / DE / FR / IT / ES / RU / JP / KO
- Machine Weight: Kobra S1 – 18 kg; ACE Pro – 4.6 kg
- Package Weight: 25.9 kg
- Machine Dimensions: Kobra S1 – 400 × 410 × 490 mm³; ACE Pro – 365.94 × 282.84 × 234.5 mm³
- Package Dimensions: 490 × 484 × 593 mm³
