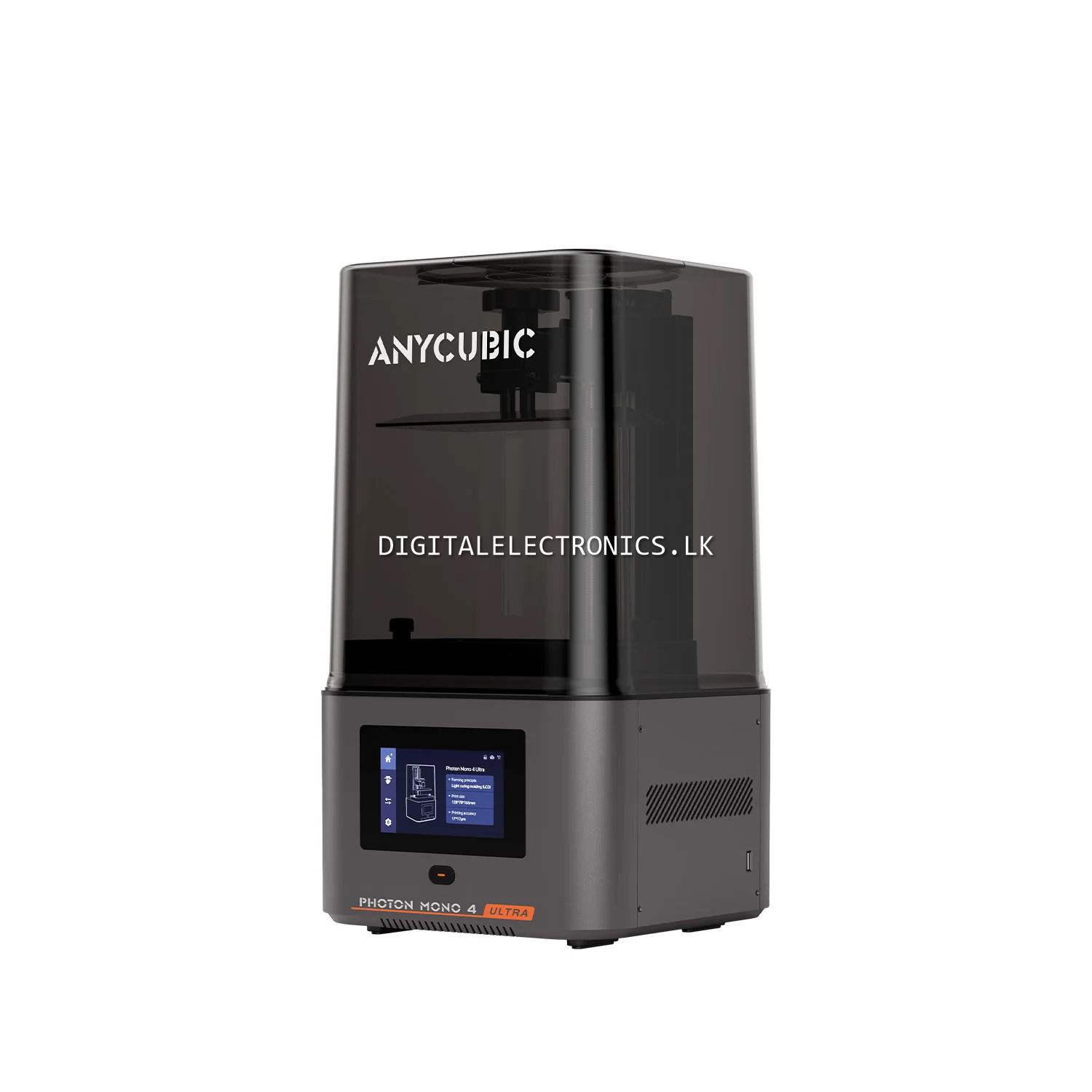

Description
Core Printing Performance
- Printing Volume: 153.4 × 87 × 165 mm³ (2.2 L)
- Printing Speed: Max speed ≤ 80 mm/h; Standard resin (0.1 mm): ≤ 80 mm/h; High-speed resin (0.1 mm): ≤ 120 mm/h
- Layer Height Range: 0.02 – 0.15 mm
- X/Y Axis Resolution: 17 × 17 μm
- Light Source: COB light source + Fresnel lens + light uniformity algorithm
- Light Intensity: ≥ 3500 μW/cm²
- Material Compatibility: High-speed, water-washable, standard, ABS-like, and plant-based resins
System & Mechanical Design
- Build Platform: Laser-engraved aluminum build plate
- Z-axis: Single linear rail with 20 μm accuracy
- Release Film: ACF film
- Resin Vat: ≤ 0.39 L
- Machine Leveling: 4-point manual leveling
- Power Loss Resume: Supported
- Power Supply: 66 W
- Protection Film: Replaceable scratch-resistant film
- Resin Auto-fill Unit: Not supported
- Dynamic Temperature Control Resin Vat: Not supported
Connectivity & Software
- Slicing Software: Photon Workshop
- File Transfer: USB / WiFi / LAN
User Experience & Features
- Hinged Cover: –
- Operating Screen: 4.3″ touch-control
- Air Purifier: Optional accessory
- LCD Screen: 7-inch monochrome LCD, 10K resolution
- Anycubic App: Not supported
- Multilingual Support: EN / CN / DE / FR / IT / ES / RU / JP
- Machine Weight: 5 kg
- Package Weight: 6.1 kg
- Product Dimensions: 231 × 236 × 430 mm³
- Packaging Dimensions: 512 × 300 × 305 mm³
